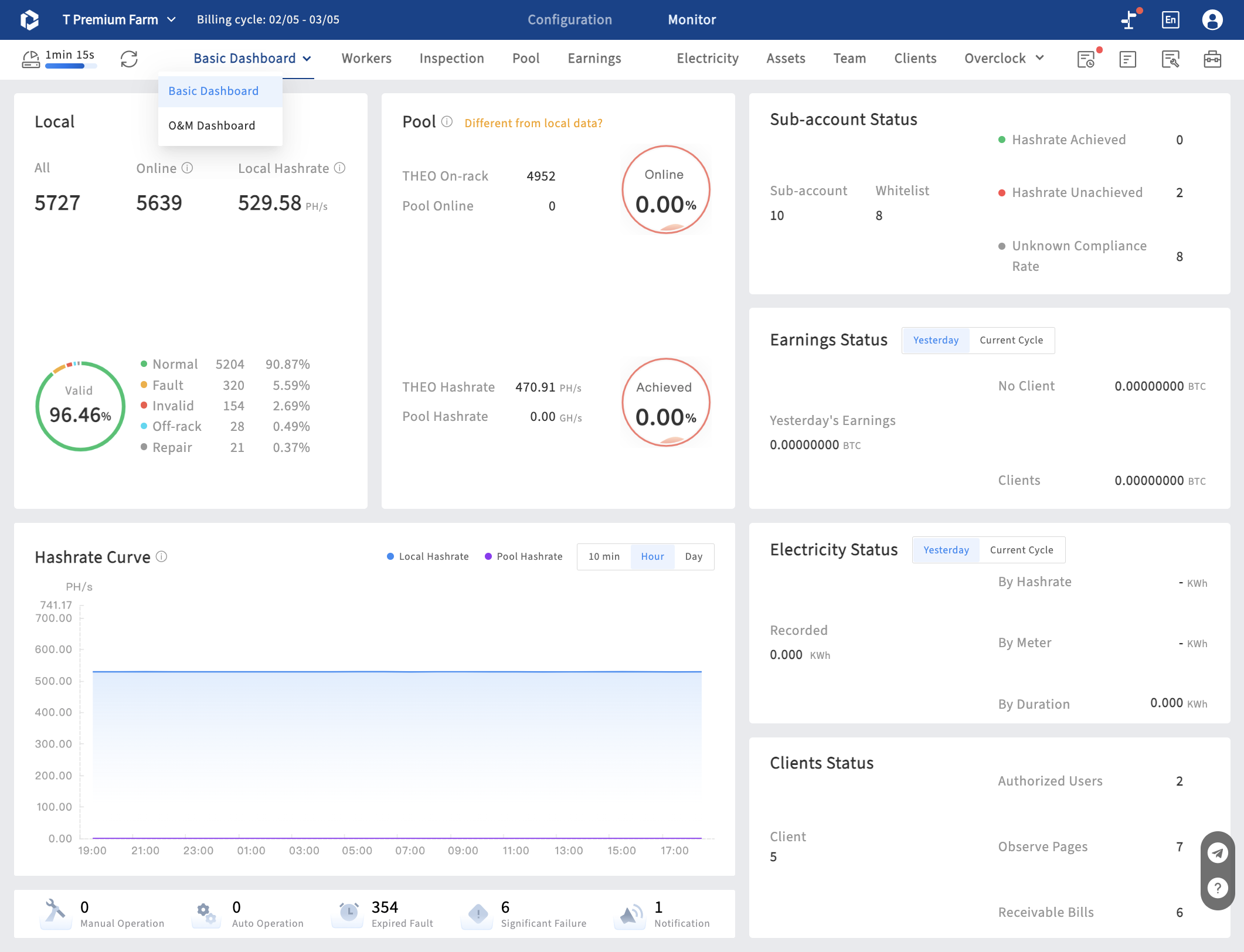

1. Dashboard - Basic Dashboard is for mining farm managment. You can compare local miners' status with pool data, and get the statistic data of sub-account, earning, electricity usage, client.

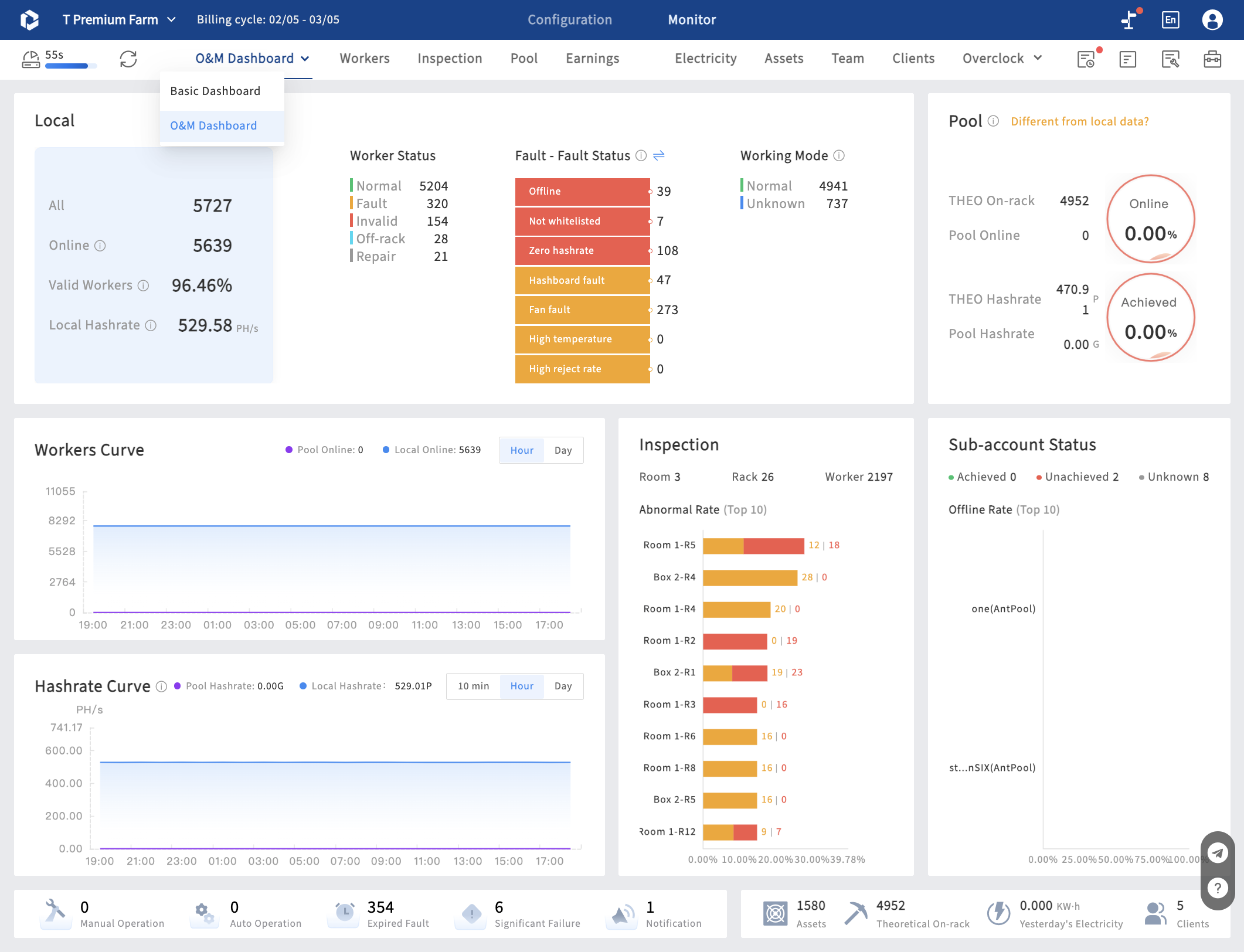

2. Dashboard - O&M Dashboard focus on the data of miner status and faulty, is mainly used by Maintenance team.

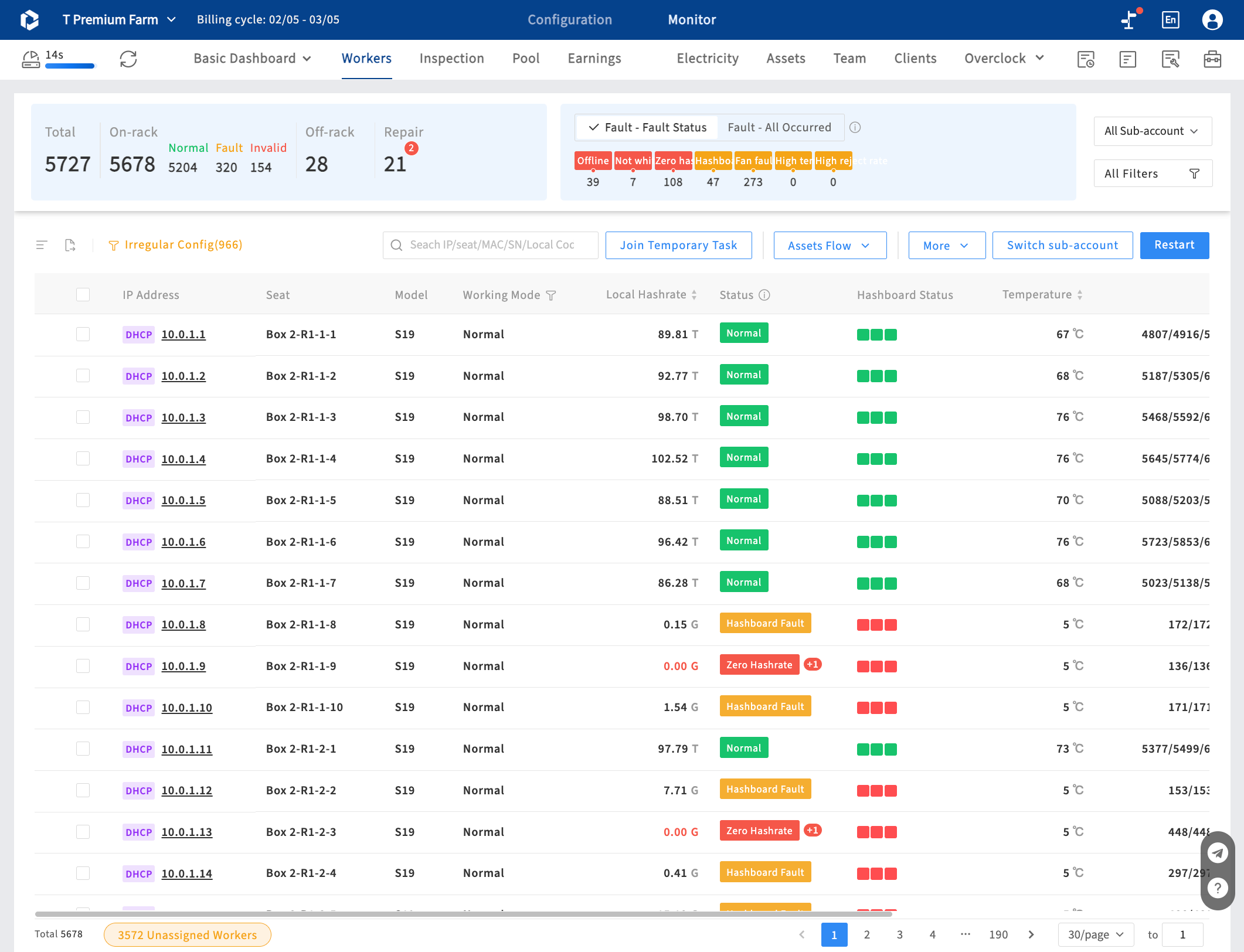

3. Workers page is a miner list with real-time status data, with faulty statics, filter, and operation button.

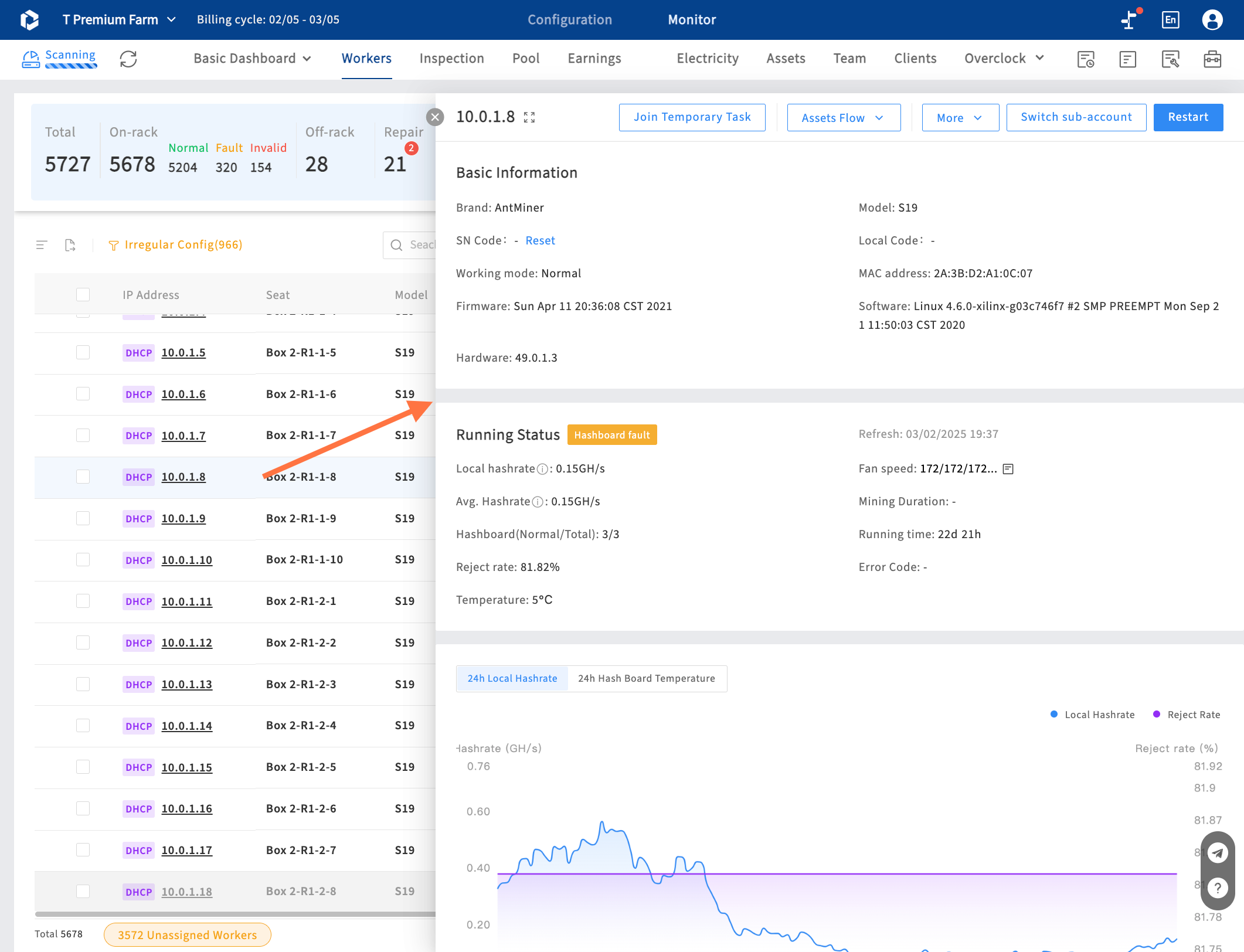

4. Miner detail page - click miner , it will show the factory information, running status, hashrate curve,hashboard status, configuration,event log, fualt history,repair history and remark history. That just like a miner's health report with all realtime data and history.

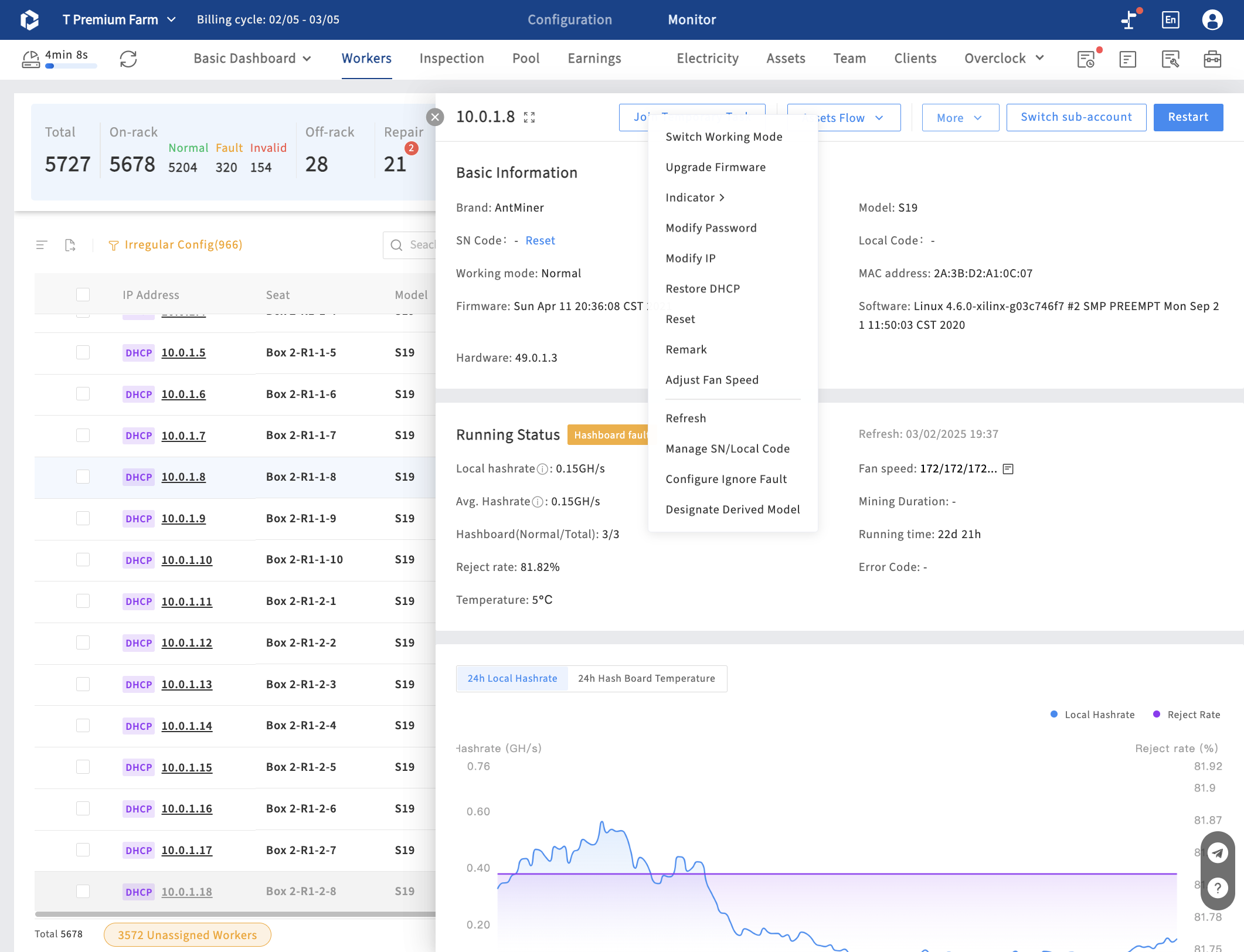

5. Performing miner operations is available here.

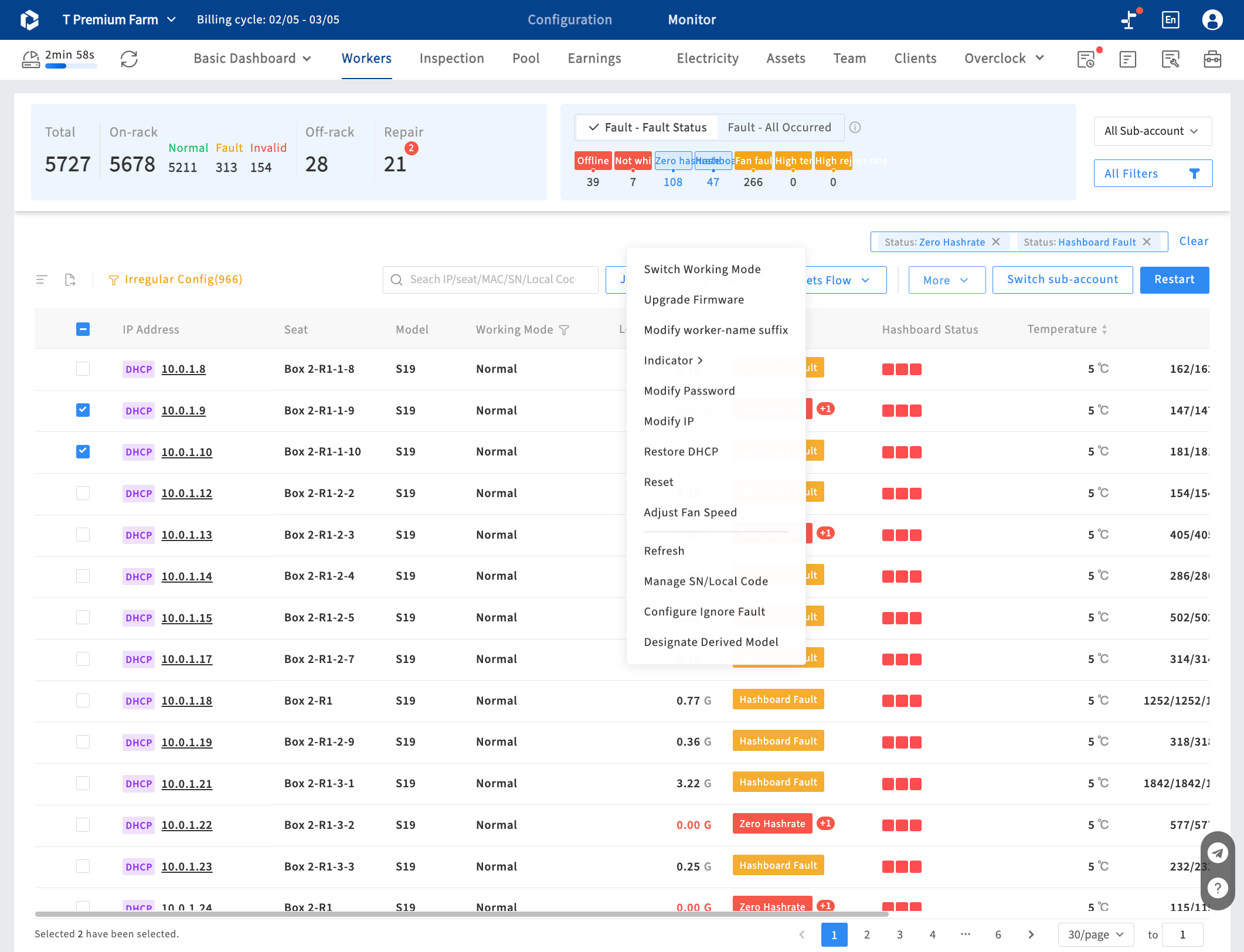

6. Batch miner operation is supported on the miner list.

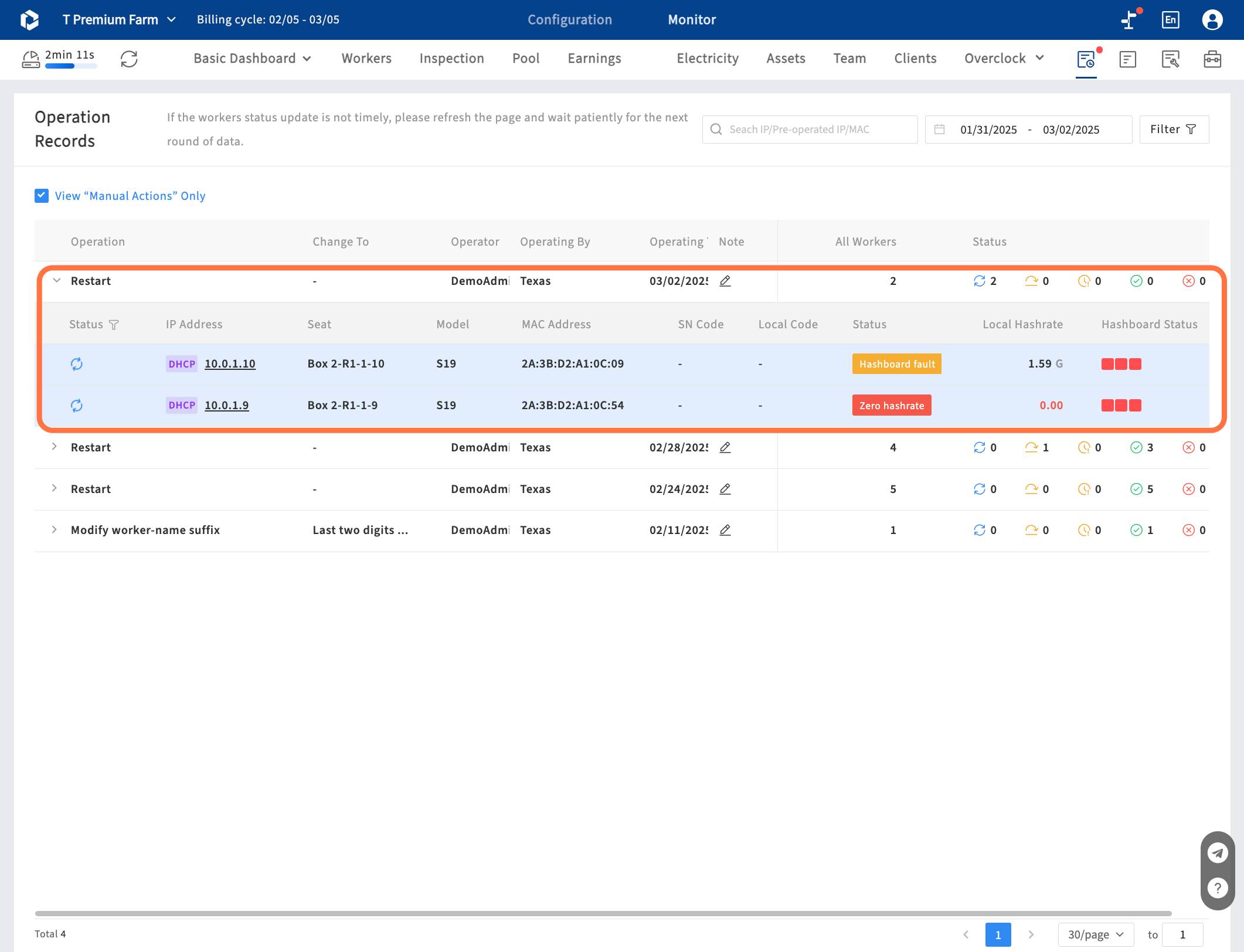

7. All miner operations are recorded. Click on the first icon on the right side of the menu bar，it will displays who performed what operations on which machines at what time, how many were successful, how many failed, and how many were not executed due to some reason.

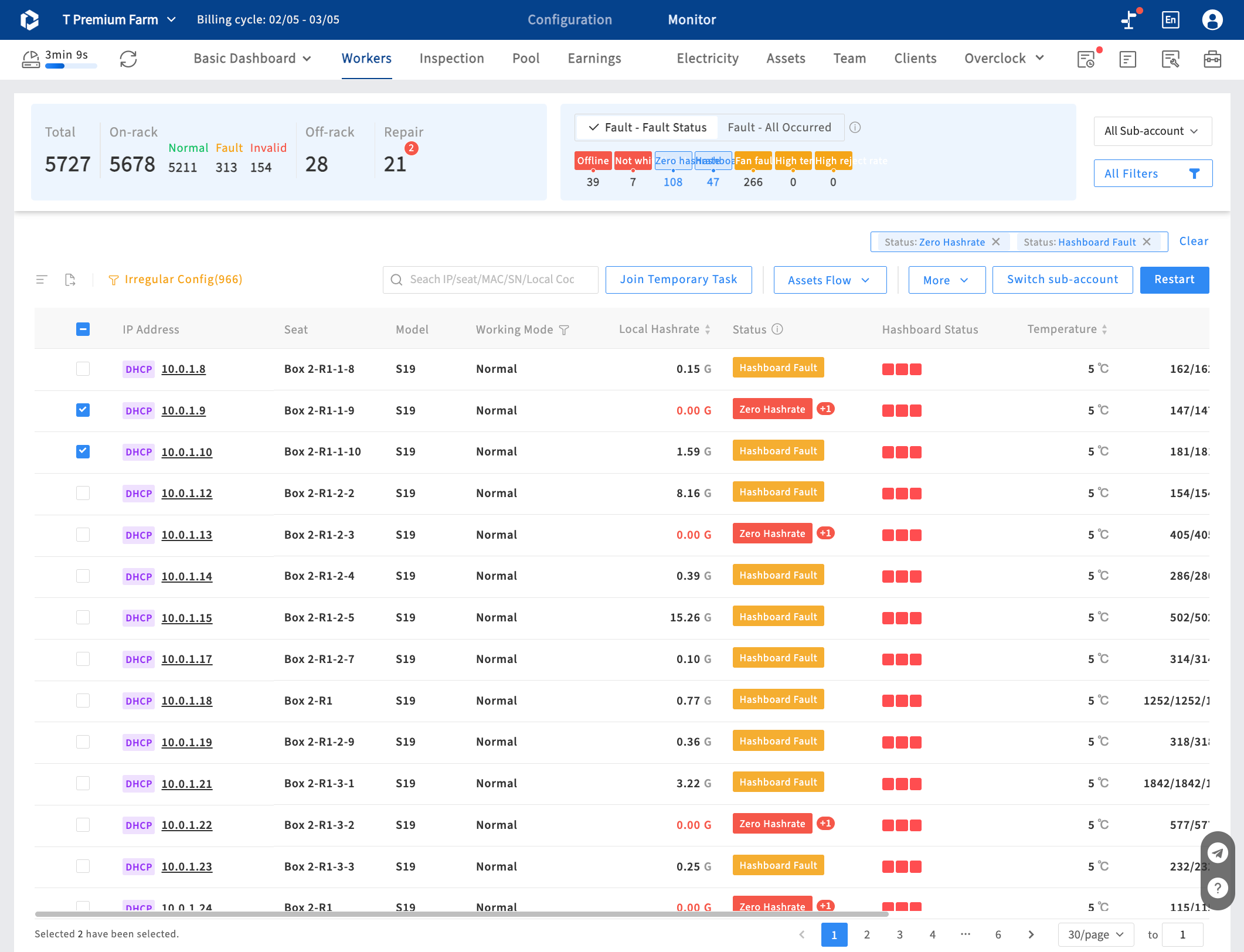

8. Fault filter - you can filter miners by fault status, in which each miner is counted based on its most severe fault. The information icon show the ranking of fault. for "all occur", each fault is independently counted.So miner with 2 fault will be counted in both the 2 fault.

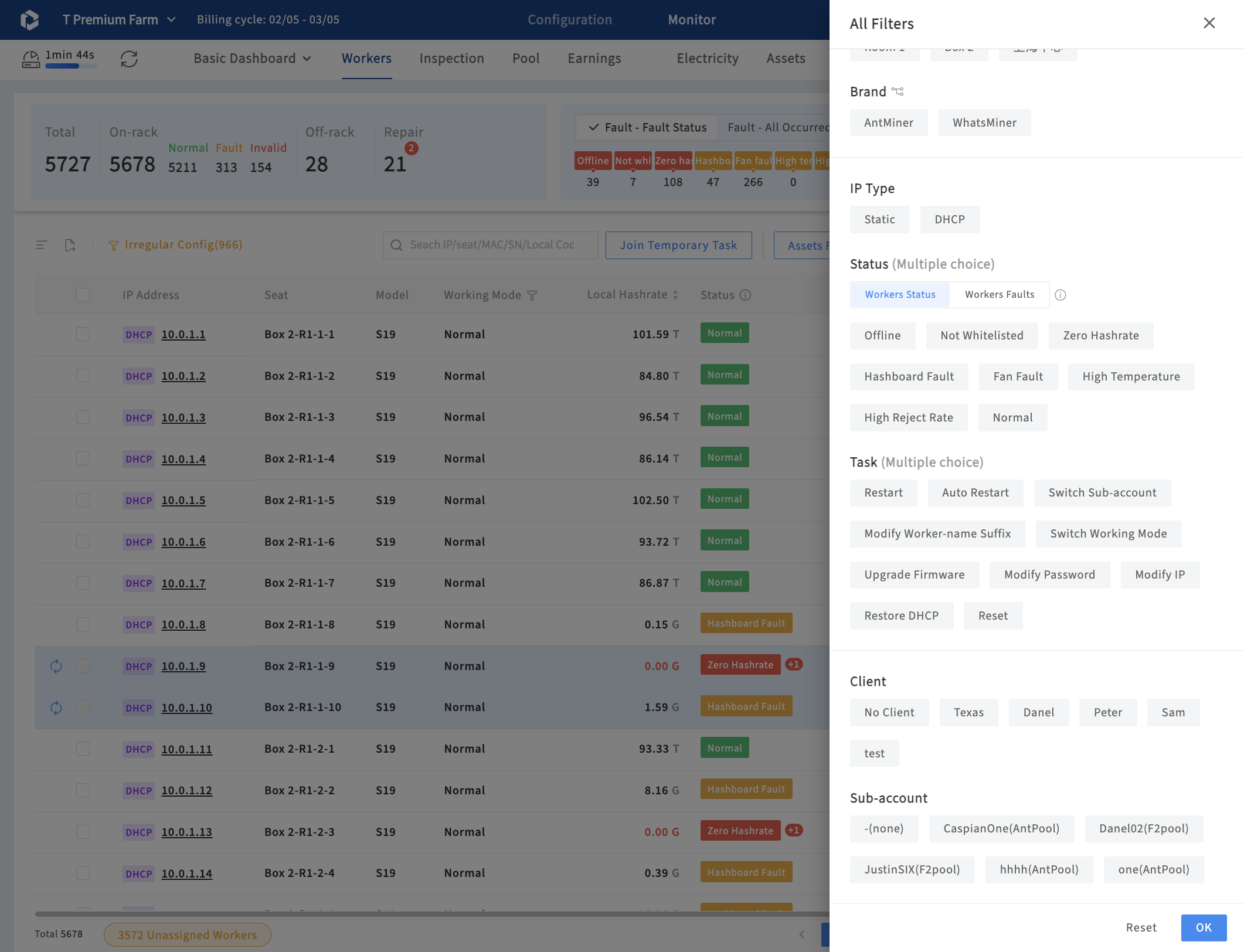

9. More filter - click on All Filter button, you can use more filter,like brand, model, firmware, IP, status, task running in, client belong to, sub-account.

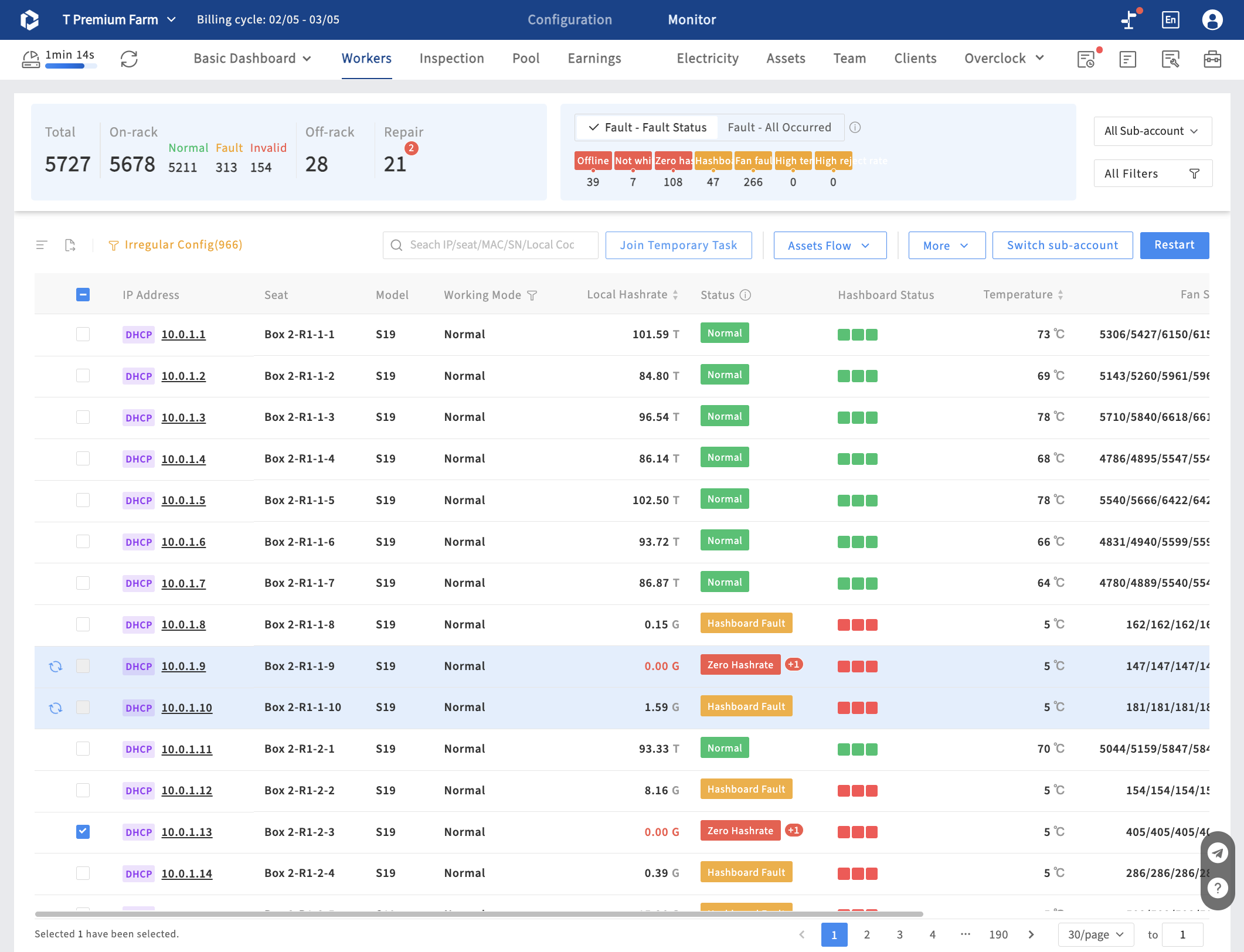

10. Task tracking - you can assign and track tasks through temporary task. Add multiple machines to a task and assign to someone. The person receiving the task processes the machine through the miner list in the task.

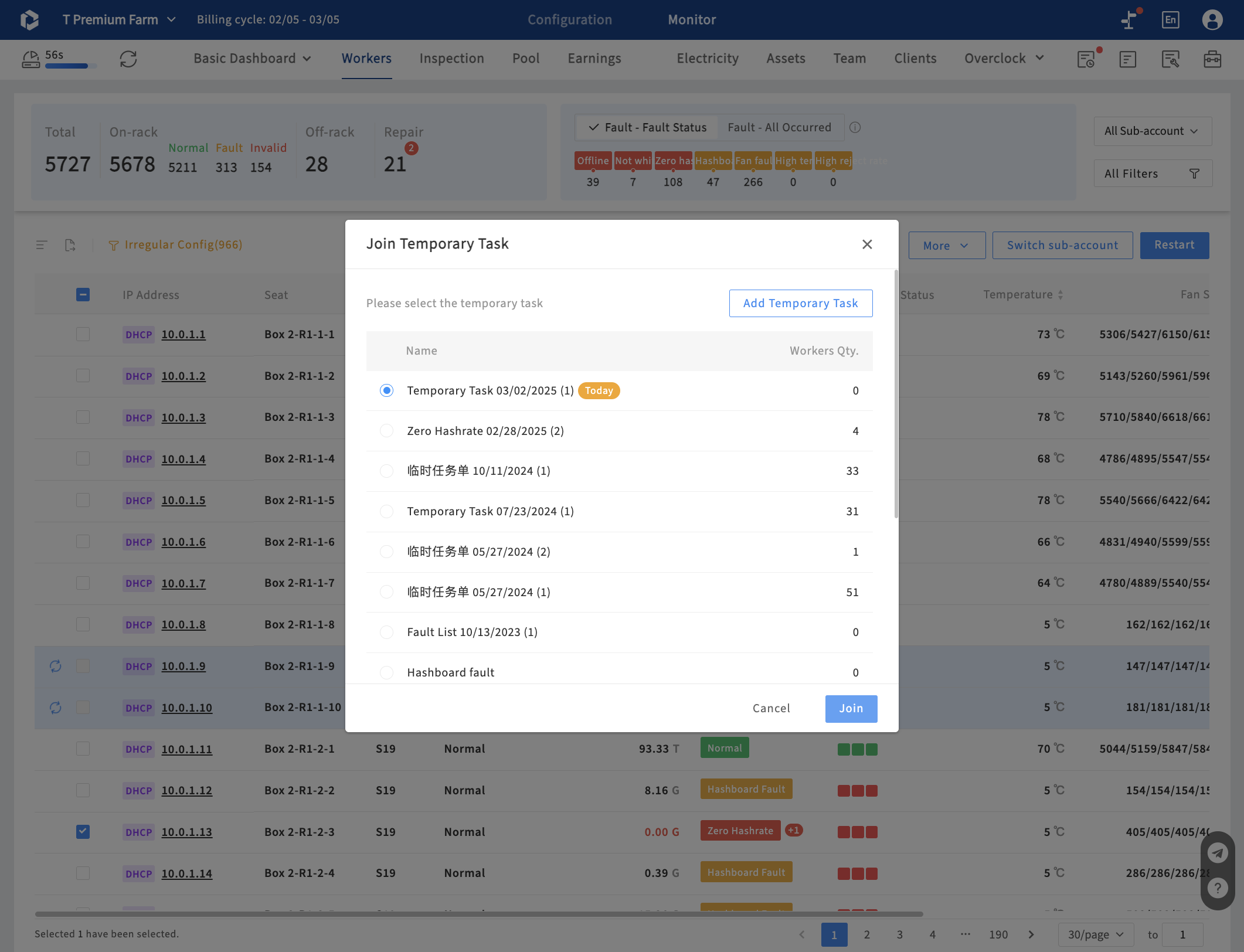

11. Select miners and click the Join Temporary Task button, then create new task or add to one of the tasks.

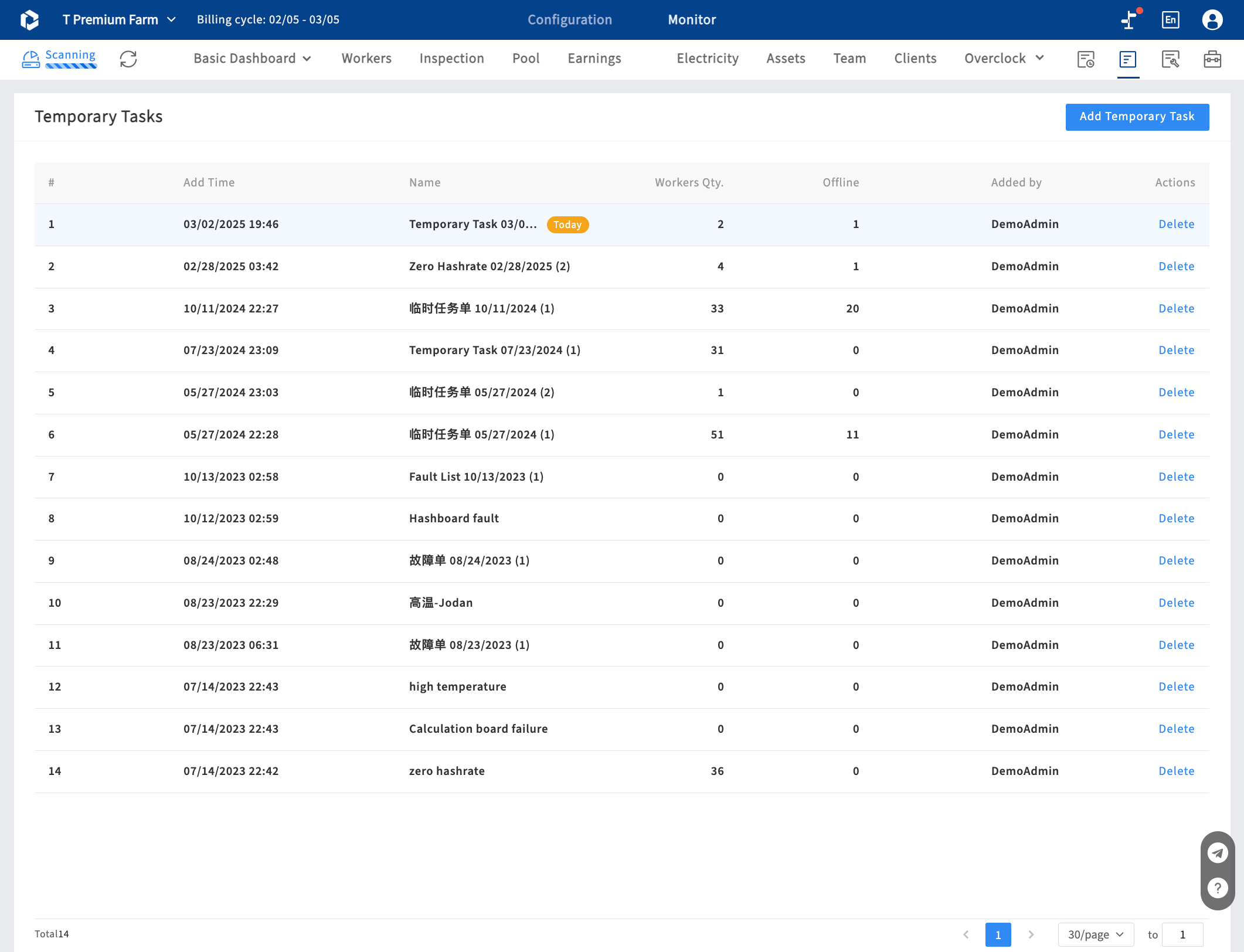

12. Then anyone can open the task list and the miner list of each task.

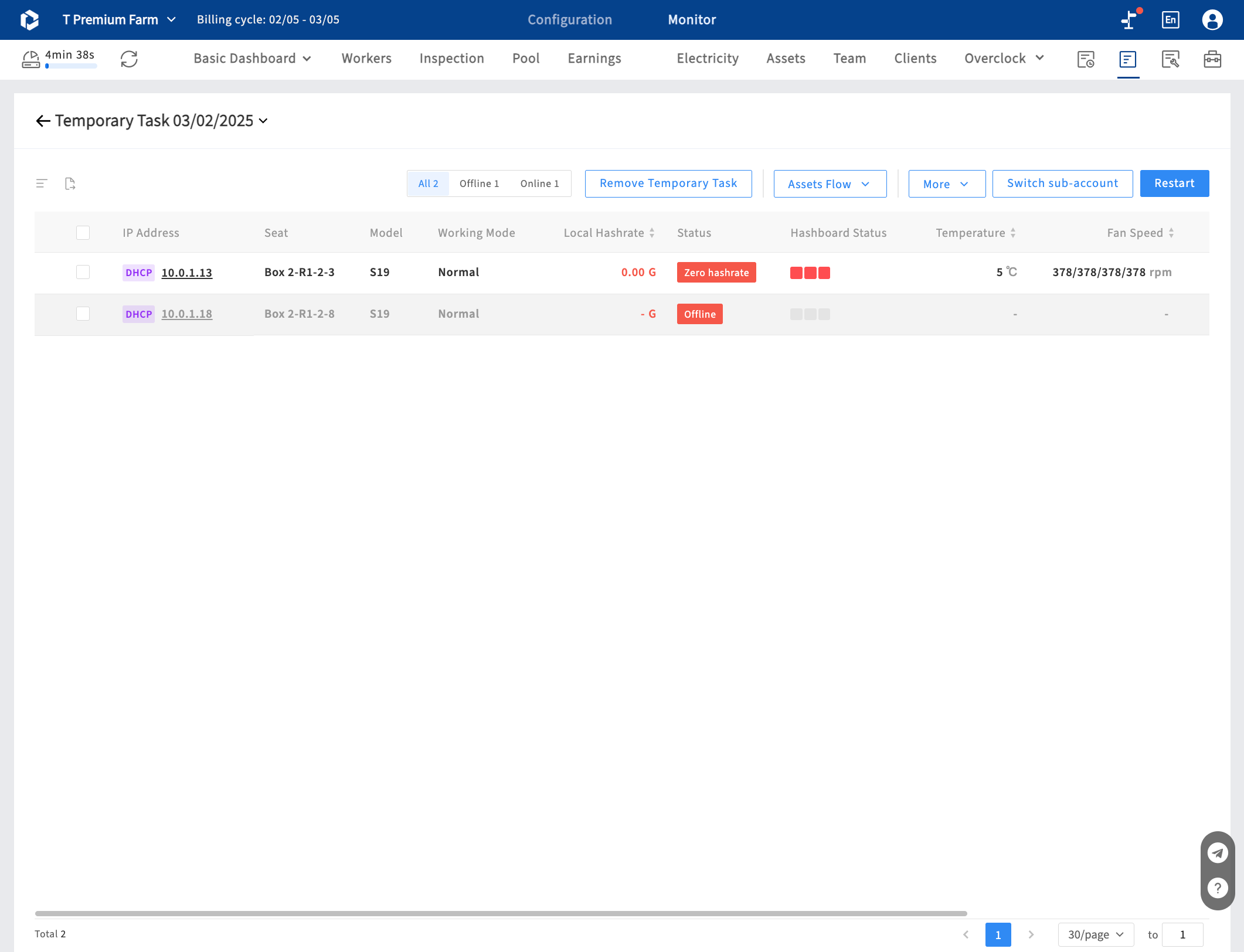

13. Engineers can operation miners in the miner list page of task.

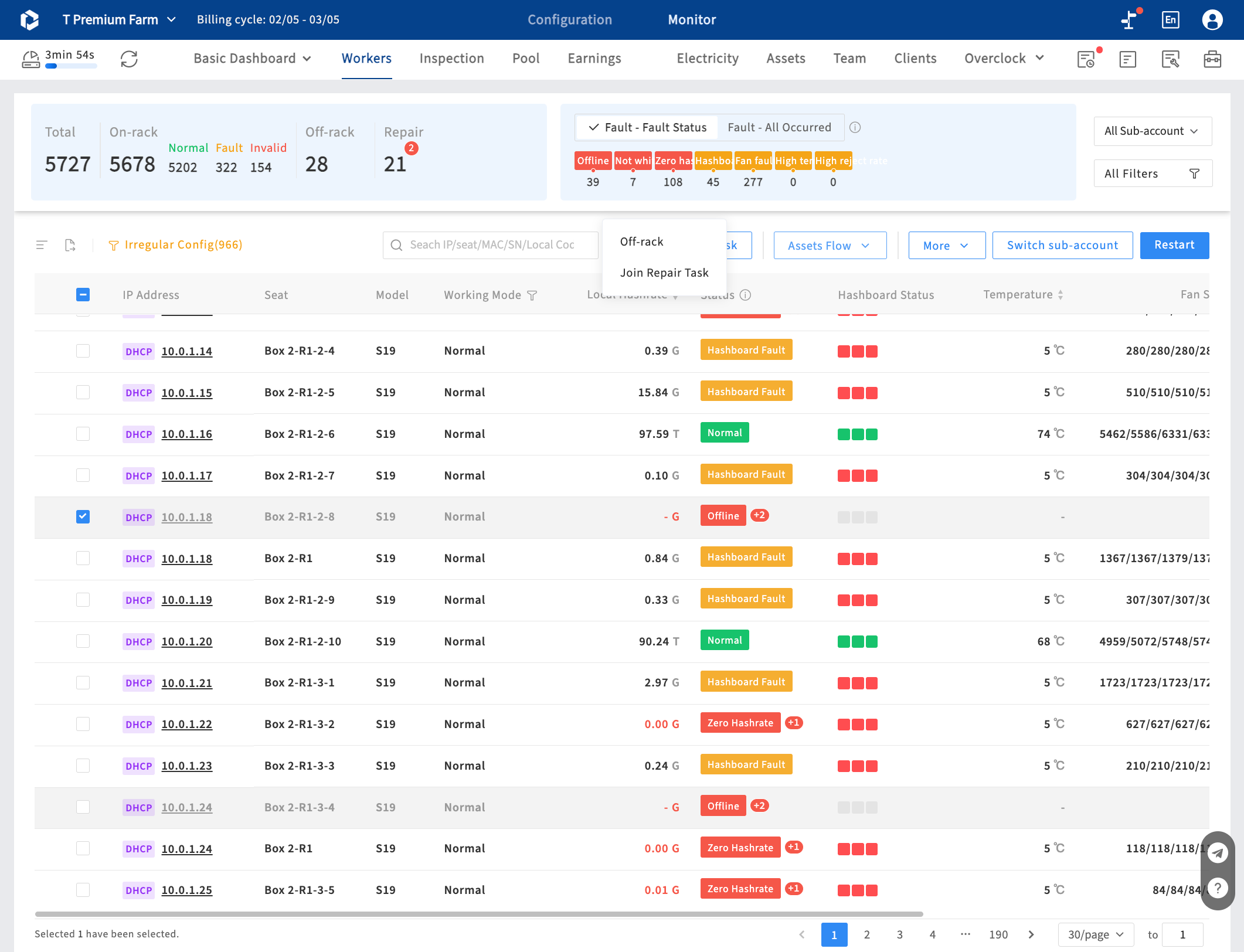

14. In addition to online operation and maintenance, miners may also be taken down from rack we called off-rack, put into inventory, and repaired. You can choose the offline machines for off-rack or join repair task to track the progress.

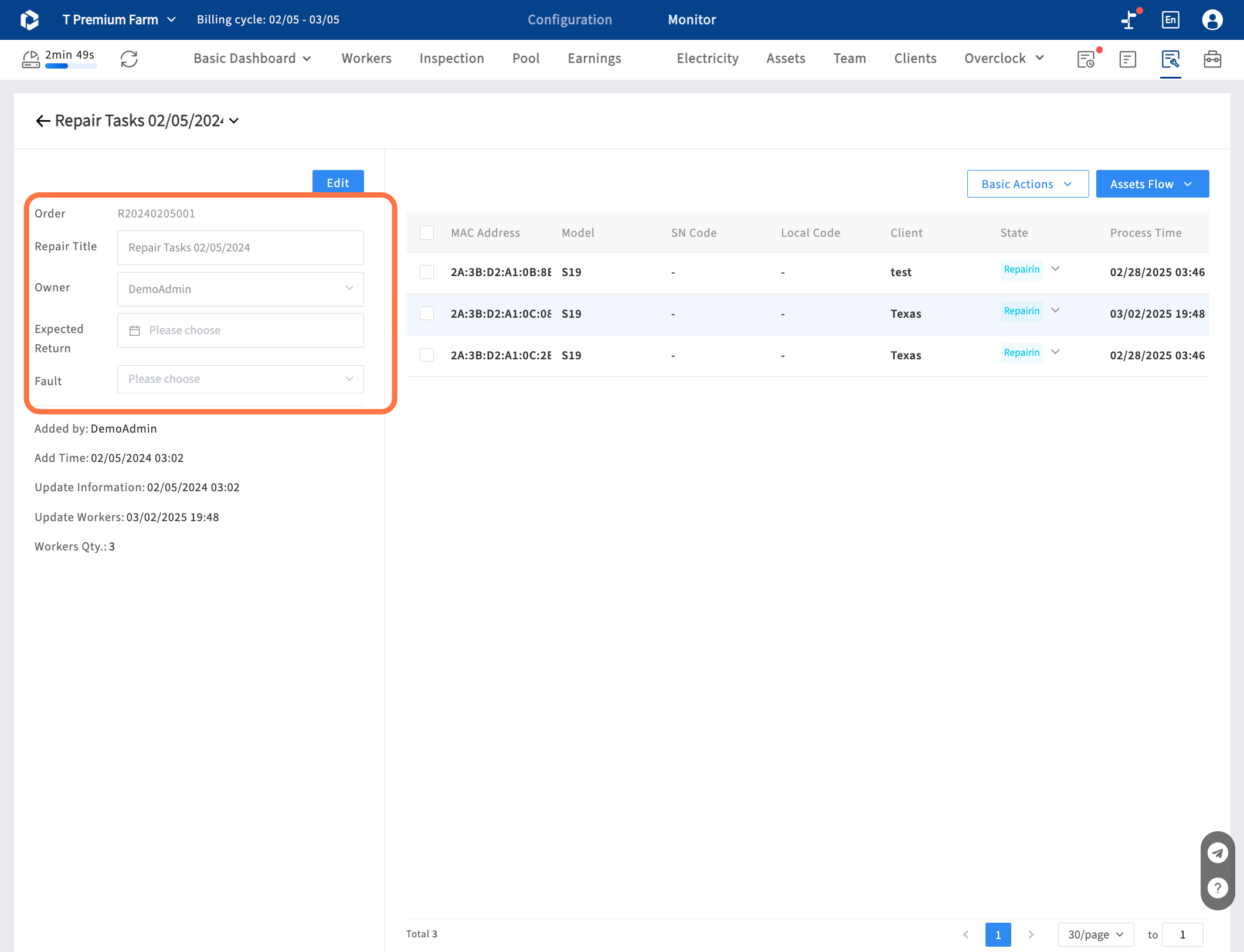

15. Repair tracking - when you use Itsminer repair tracking function, added some miners in repair tasks, just click the "repair tasks" icon and check all the tasks and detail of each repaire task, and set the state of each miner.

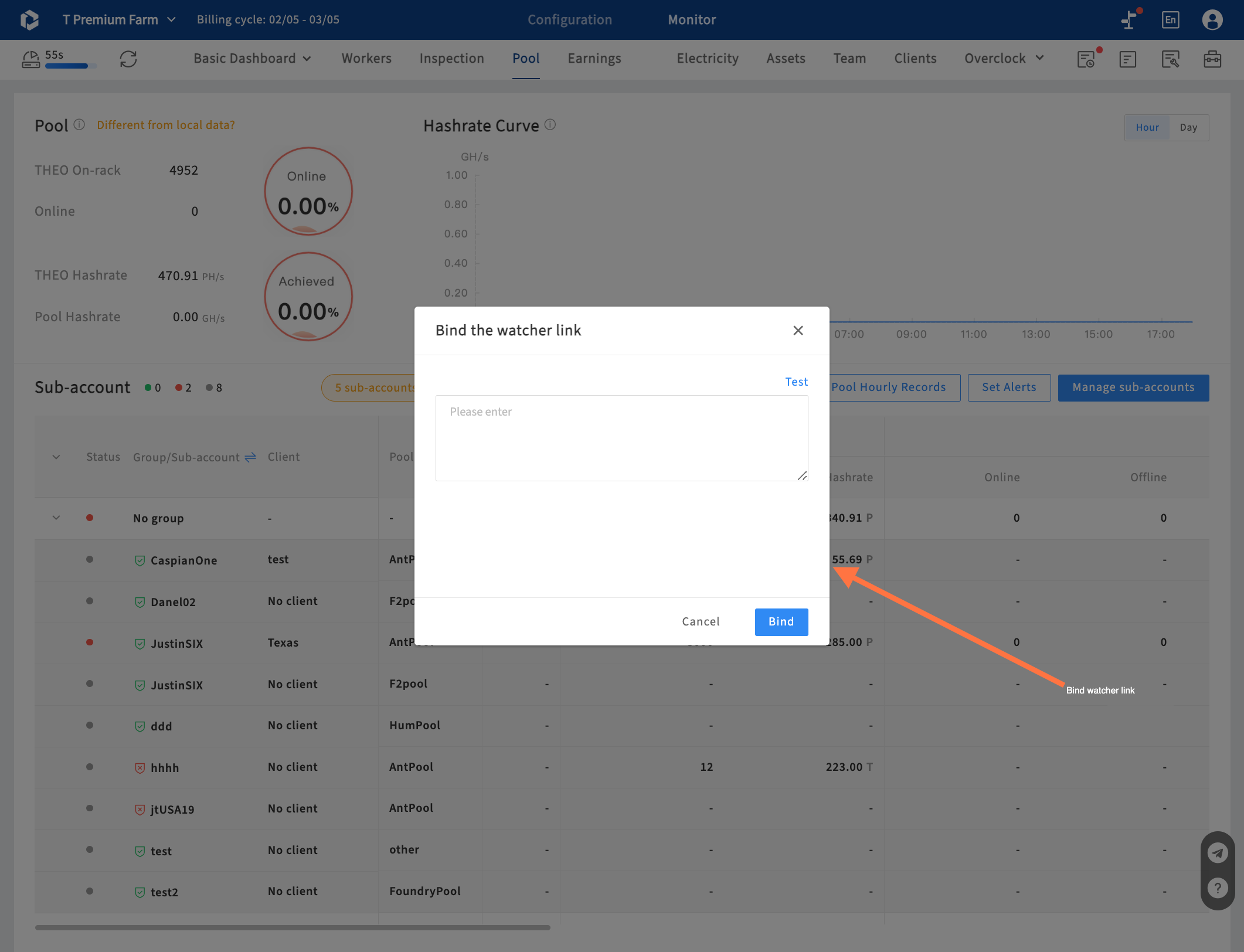

16. Pool configuration and pool data. All sub accounts in the farm will be scanned and displayed on the pool page. Hover on sub-accounts to binding observer links, ItsMiner will continuously capture data from the pool, such as online numbers, hashrate, and 24-hour average hashrate

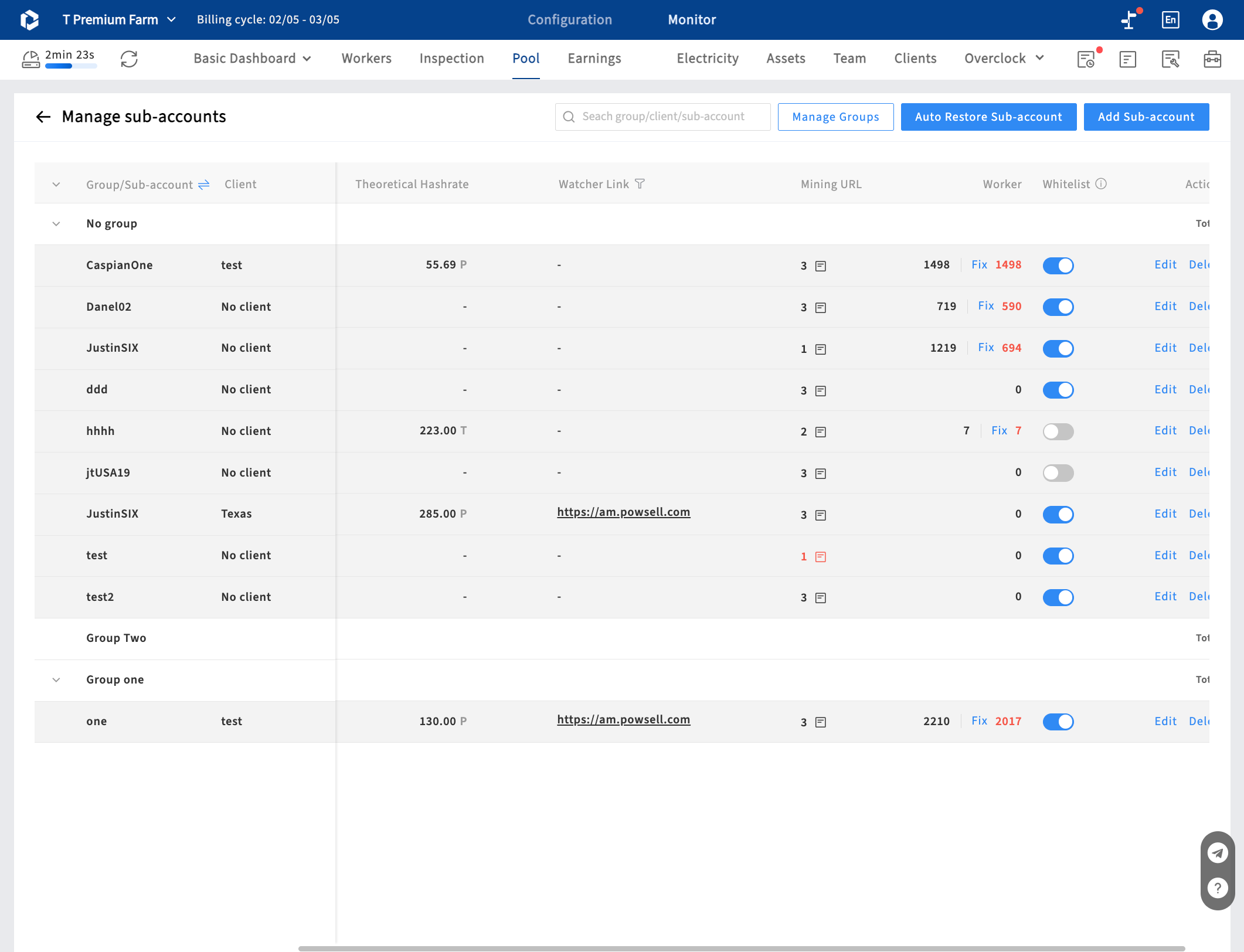

17. Sub-account whitelist - enabling the whitelist of sub-account, means that this sub-accout is in the whitelist. Any sub-account scaned not in whitelist will be identified as a fault of "not in whitelist" and filtered out in the fault statistics bar of the Workers page.

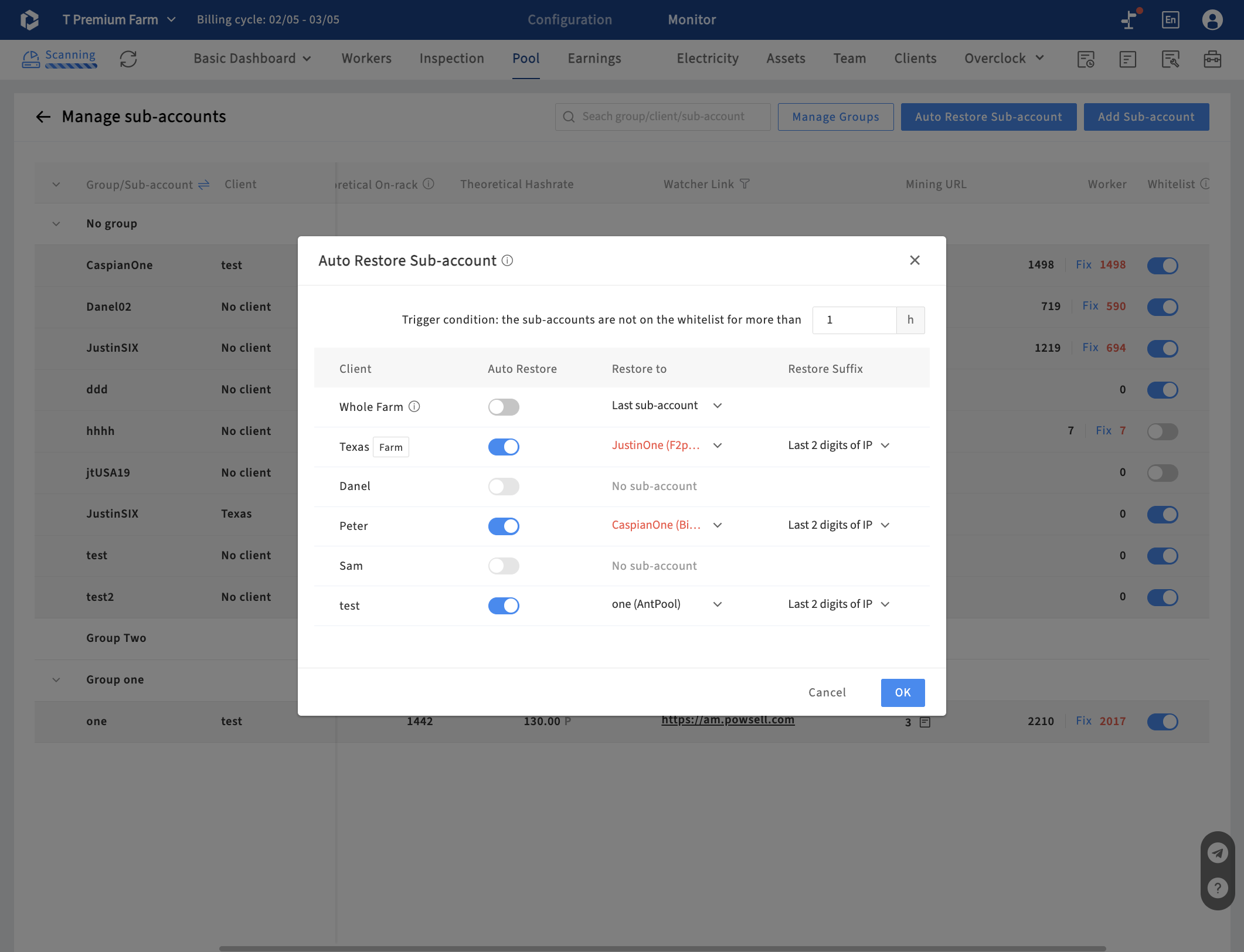

18. Auto Restore Sub-account is for configure back to the sub-account you want when client's miner is identified as "not in whitelist"

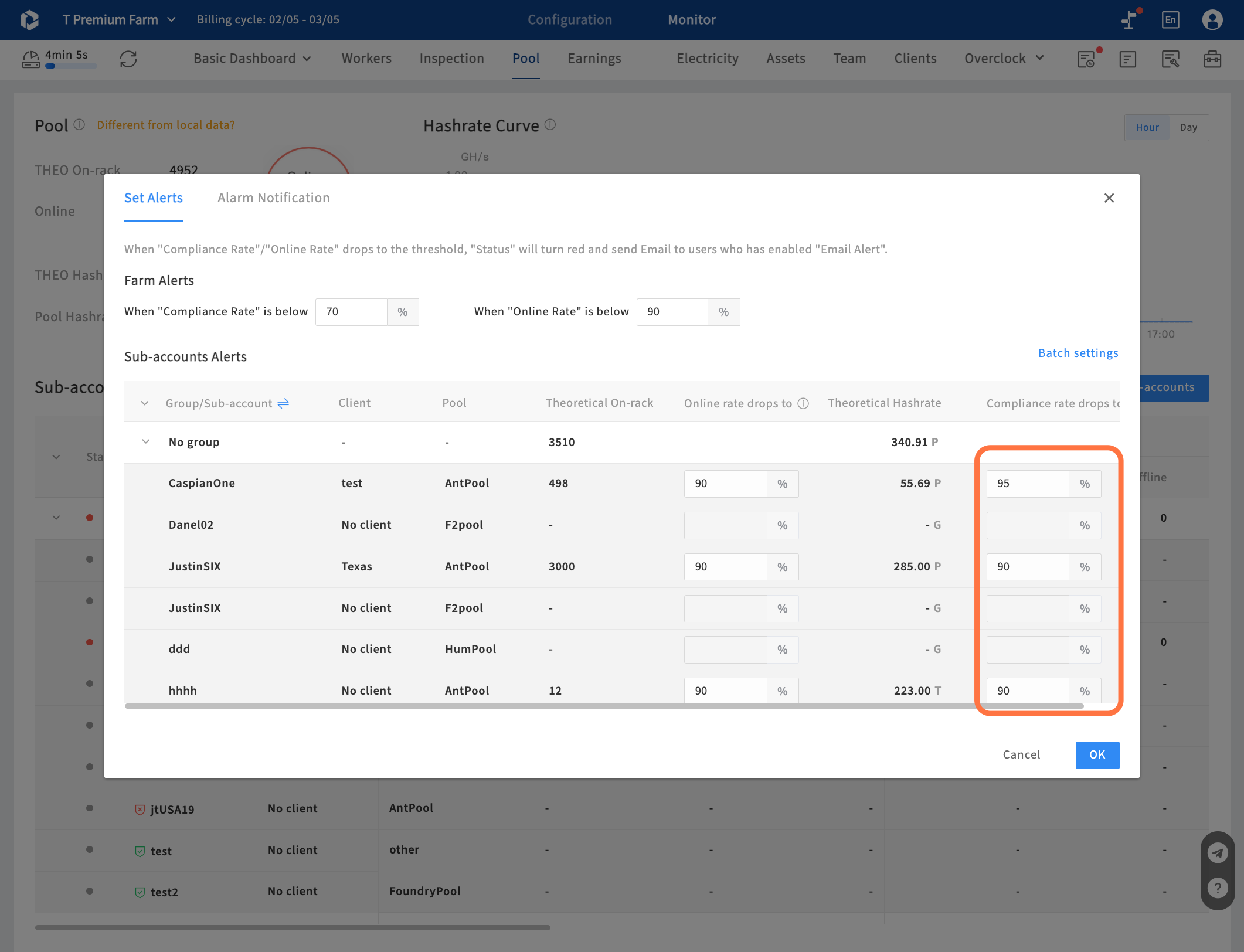

19. Pool Data Alarm - in pool page, click the 'set alert' button, you can set the threshold of online rate and hashrate for each sub-account. That mean if the real-time data is low than the percentage number, ItsMienr will send alarm notifications to users via email and Telegram.

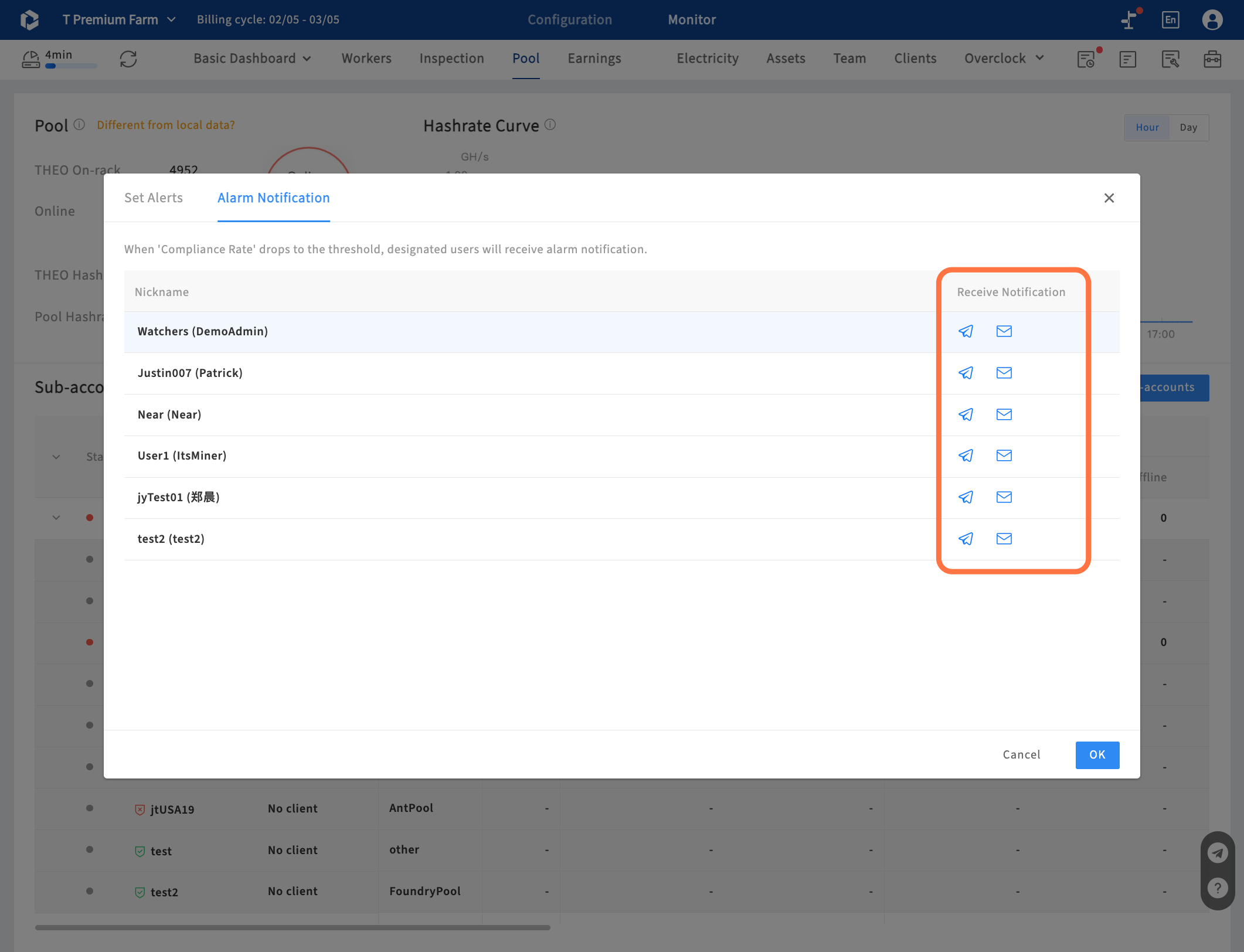

20. Alarm Notification page is for seting who will receive the alarm message. Click the icon to enable it.

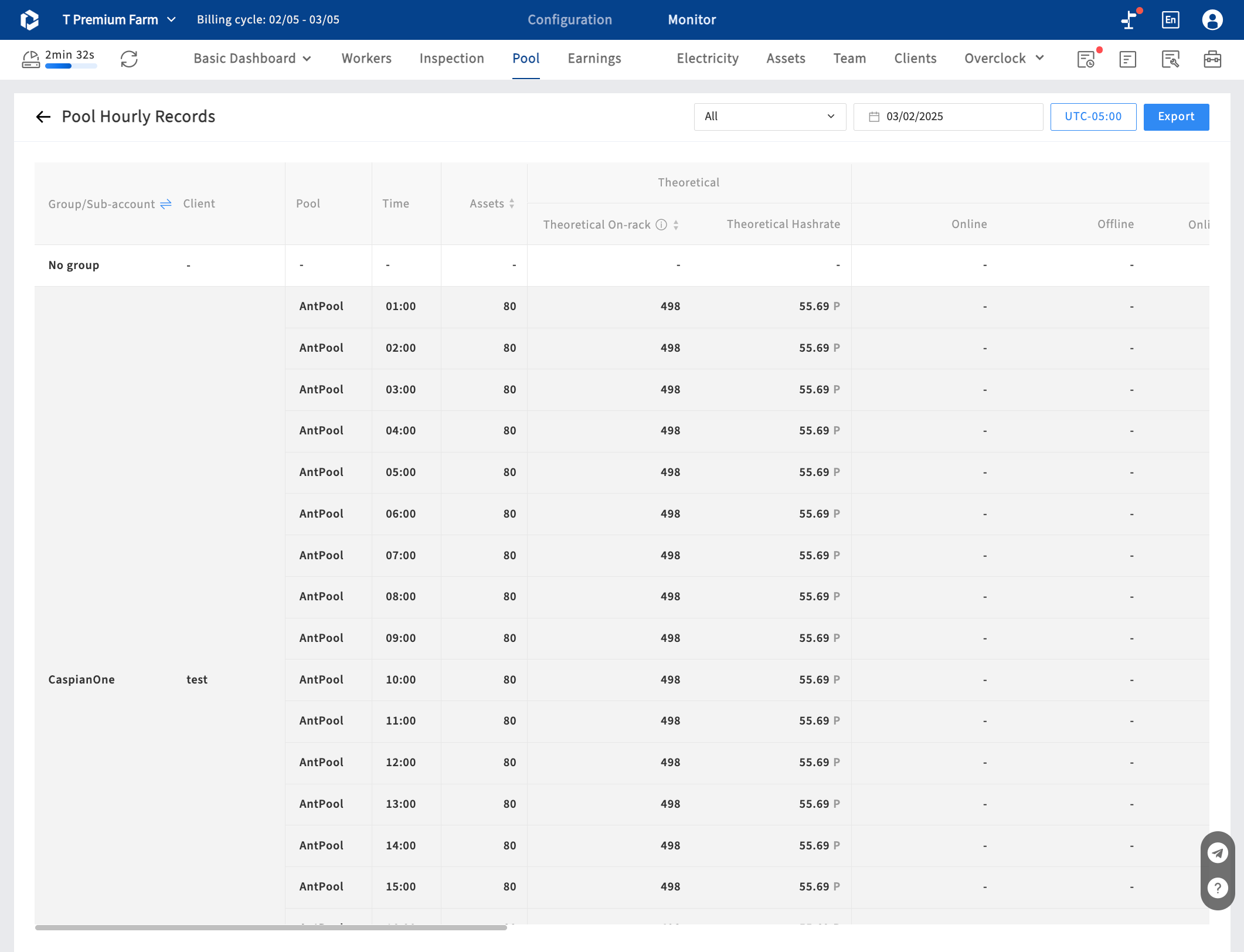

21. Pool Hourly Records is just a snapshot of pool data like online number, offline number, hashrate,reject rate. 24h avg hashrate, and the local data at the same time , for all sub-account.

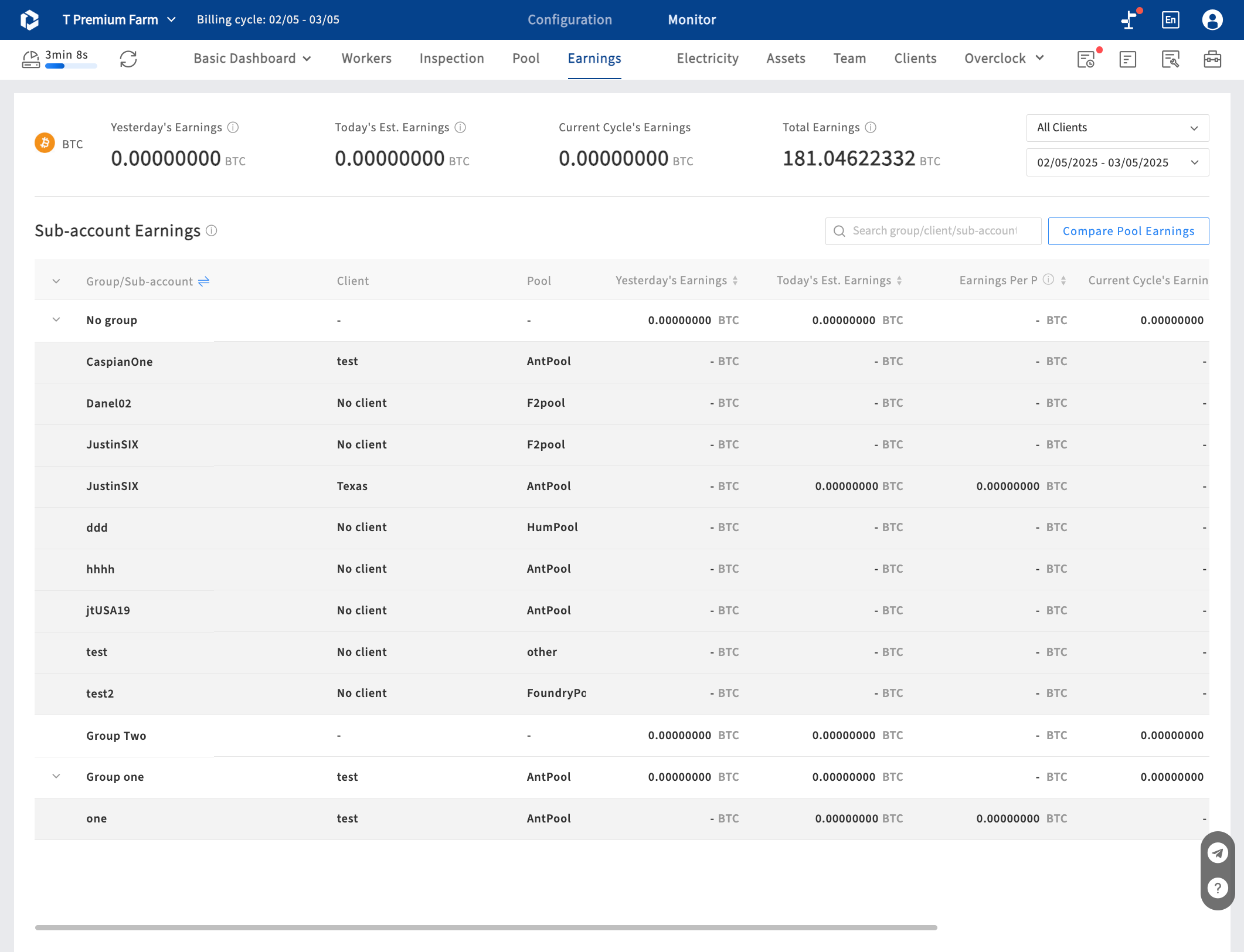

22. Earnings page show the earning data for all sub-accounts

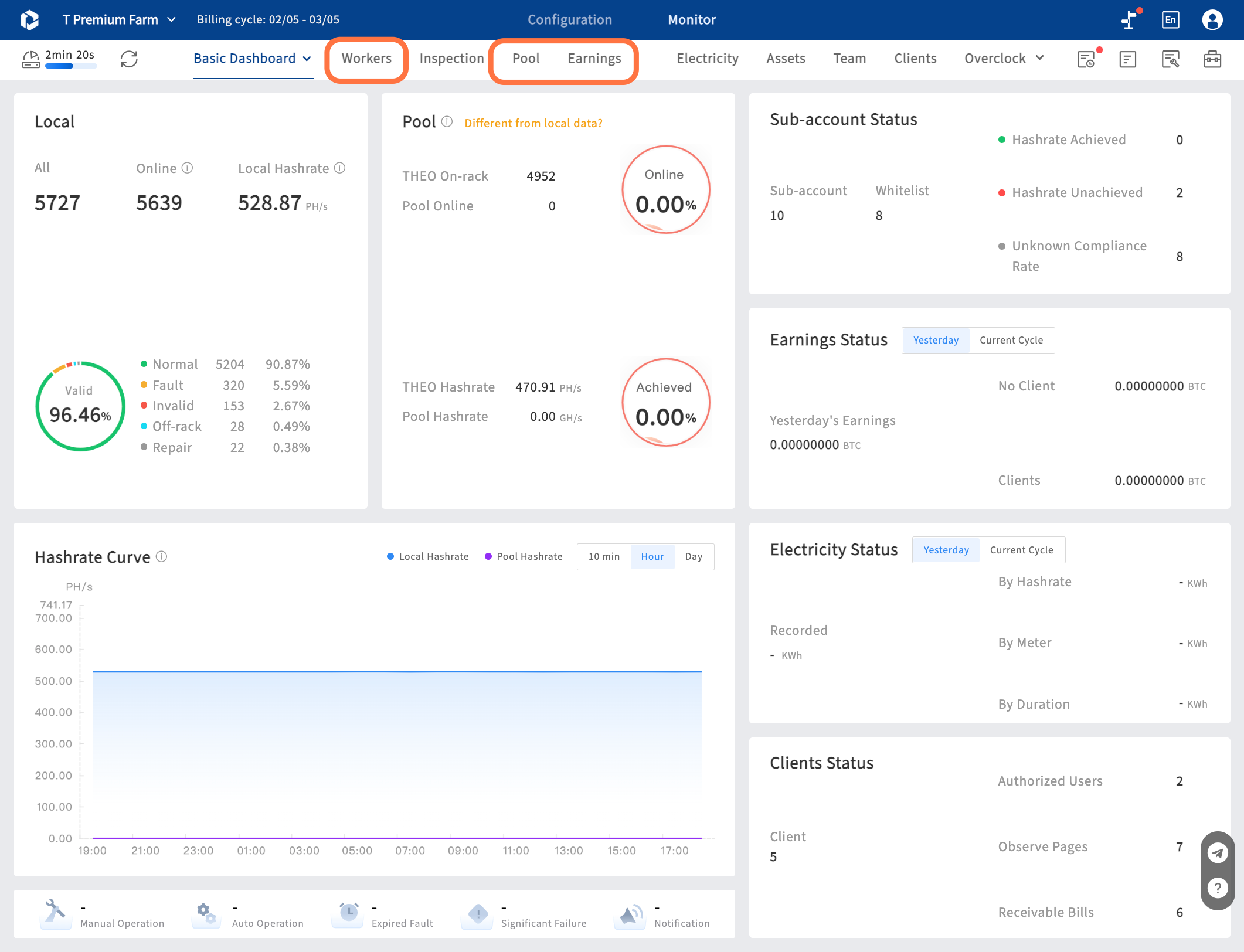

23. To summarize, you can use the dashboard, workers and pool, to monitor the status of mining machines, configure sub-account, view and compare mining pool data with local data, and operate mining machines to solve faults
