Vinyl Cutter Practice Project (Adobe Illustrator Design)
BMN

BeAM Makerspace Network at UNC-Chapel Hill

Created May 23, 2022

Vinyl Cutter Practice Project (Adobe Illustrator Design)

9
1

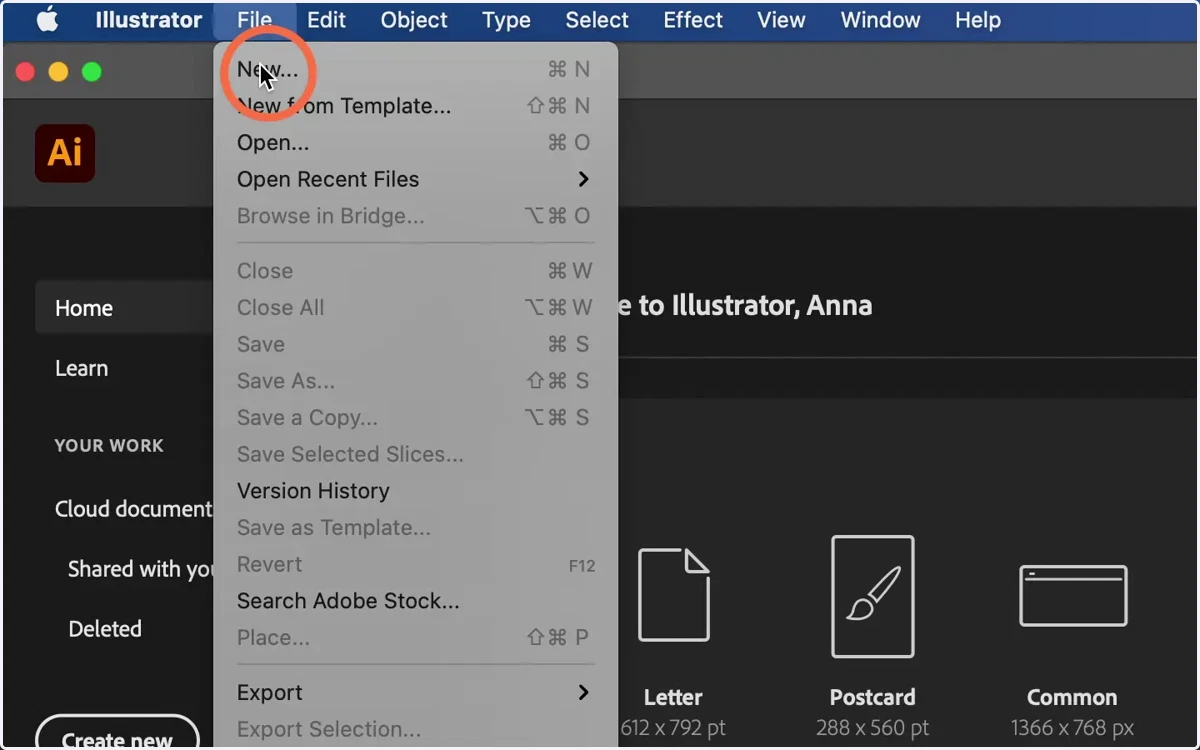

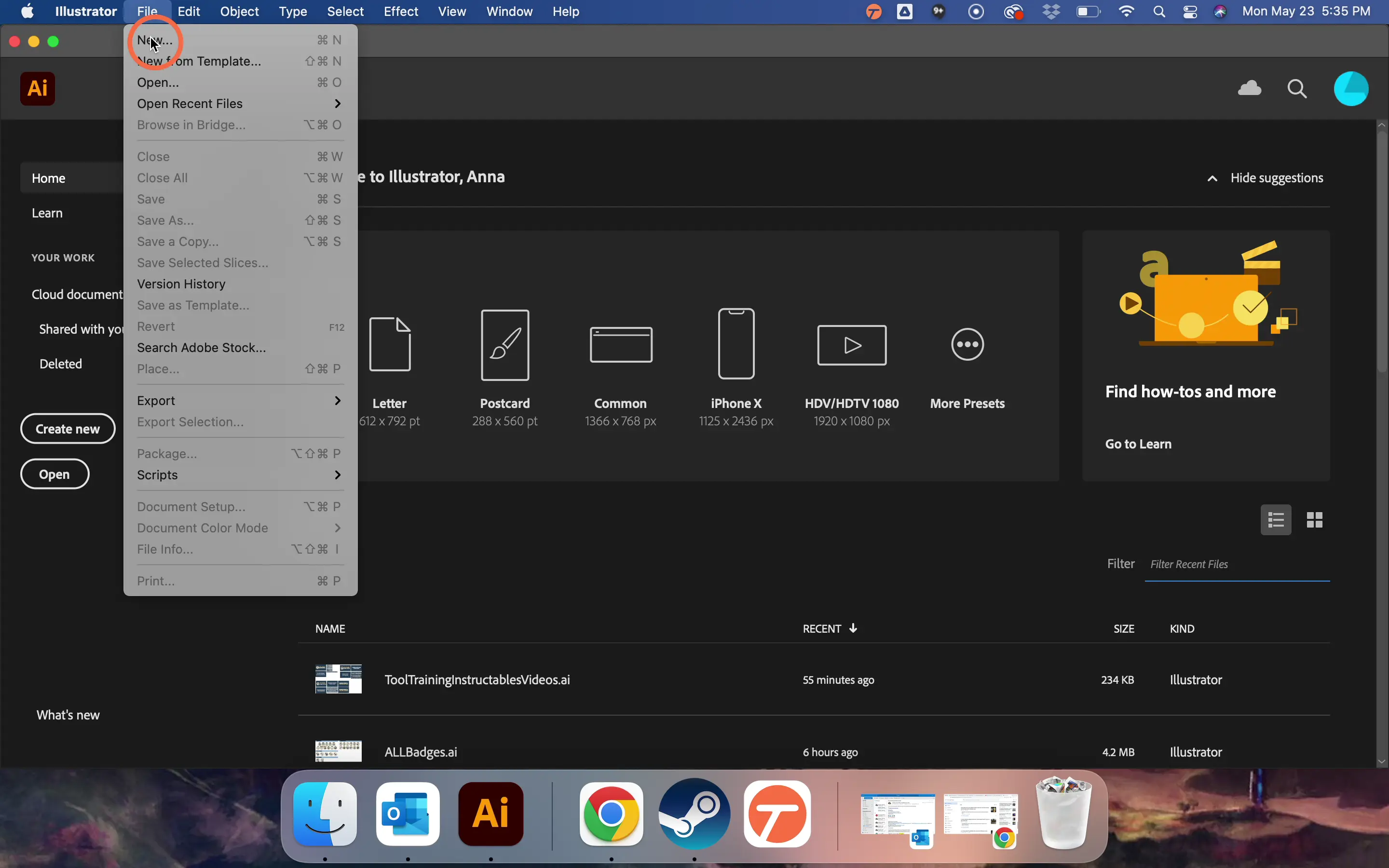

Click 'File' then 'New'

Click 'File' then 'New'
2

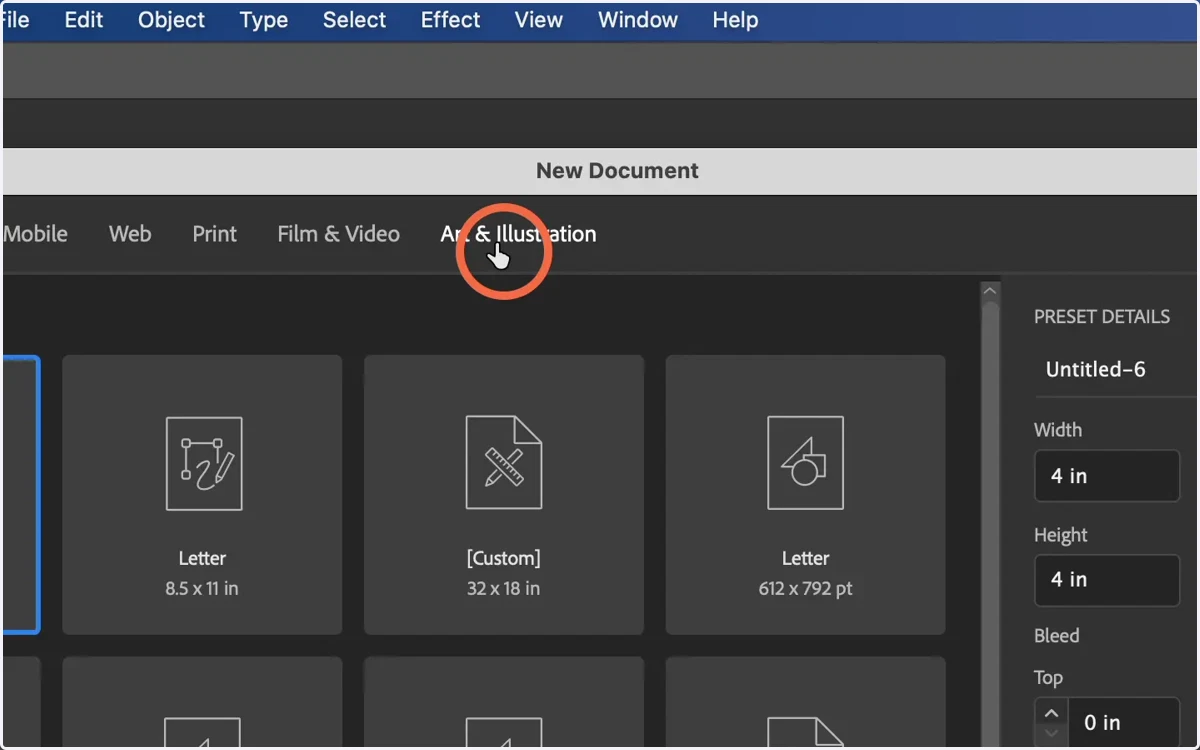

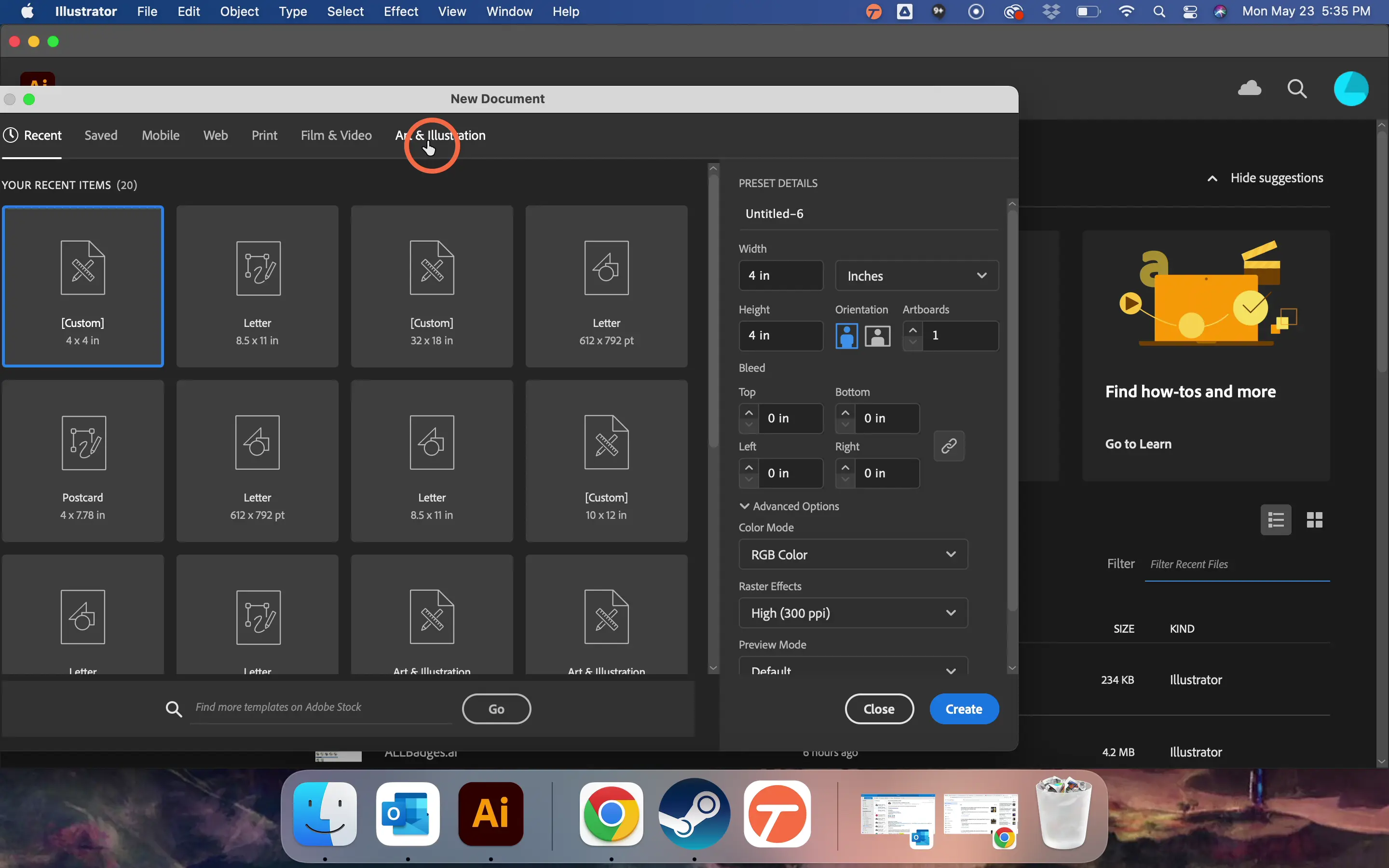

Click 'Art & Illustration'

Click 'Art & Illustration'
    a

adobe

5 Steps
3

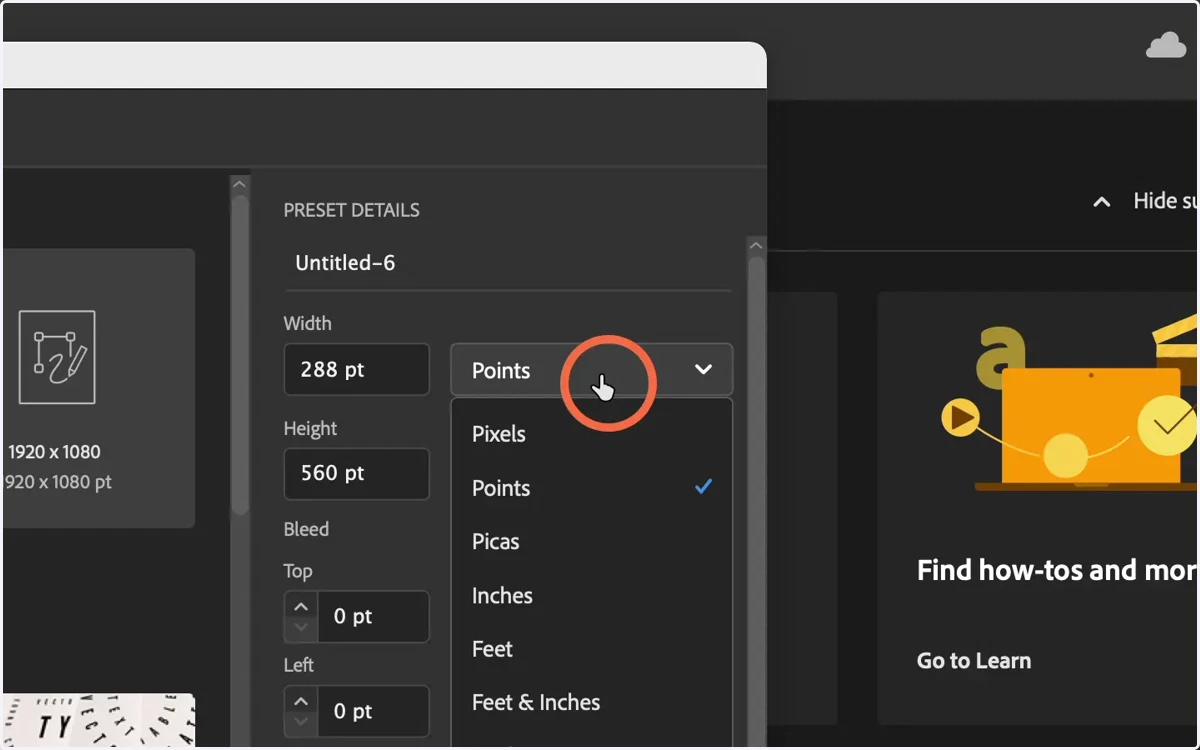

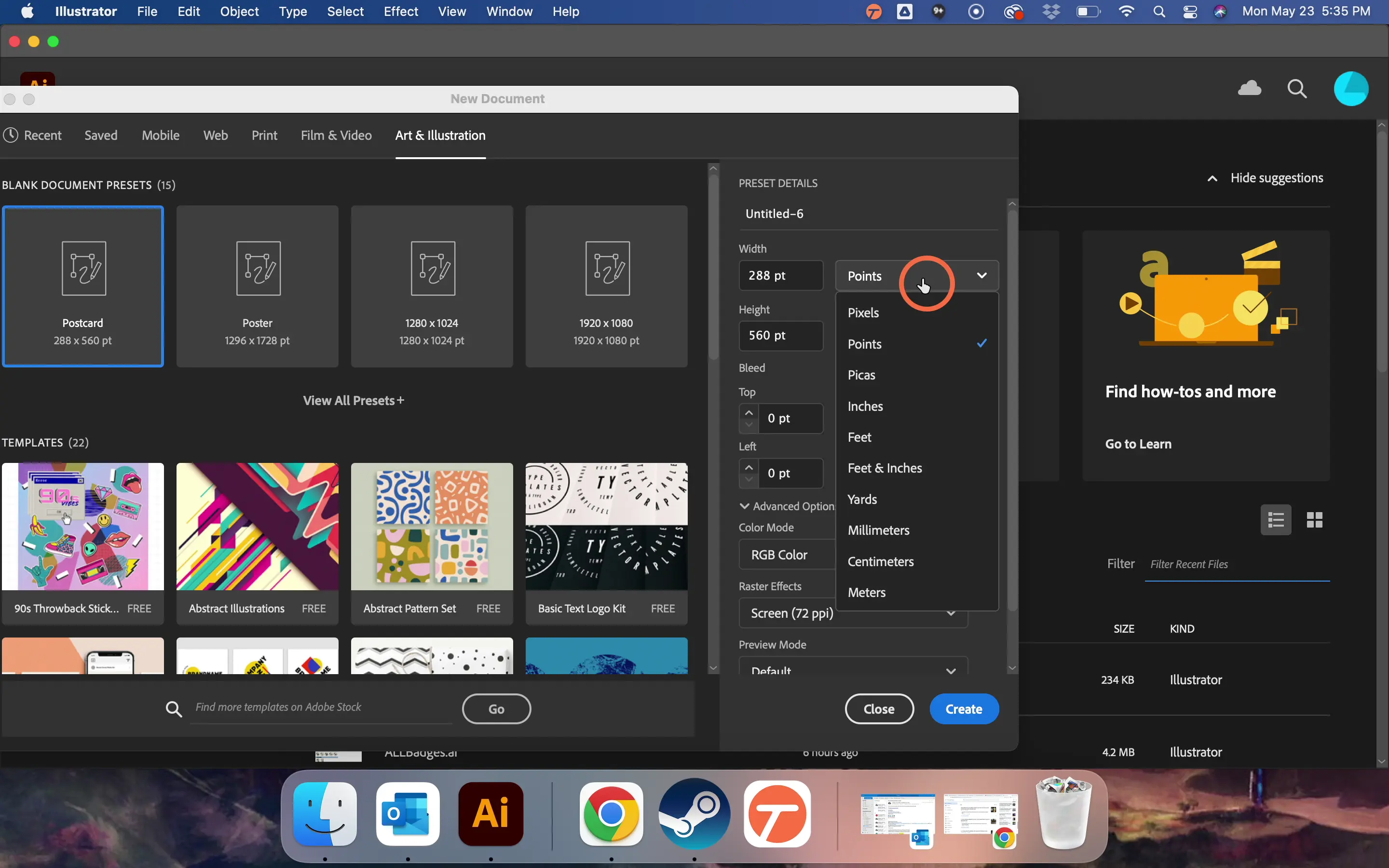

Click dropdown and select 'Inches'

Click dropdown and select 'Inches'
4

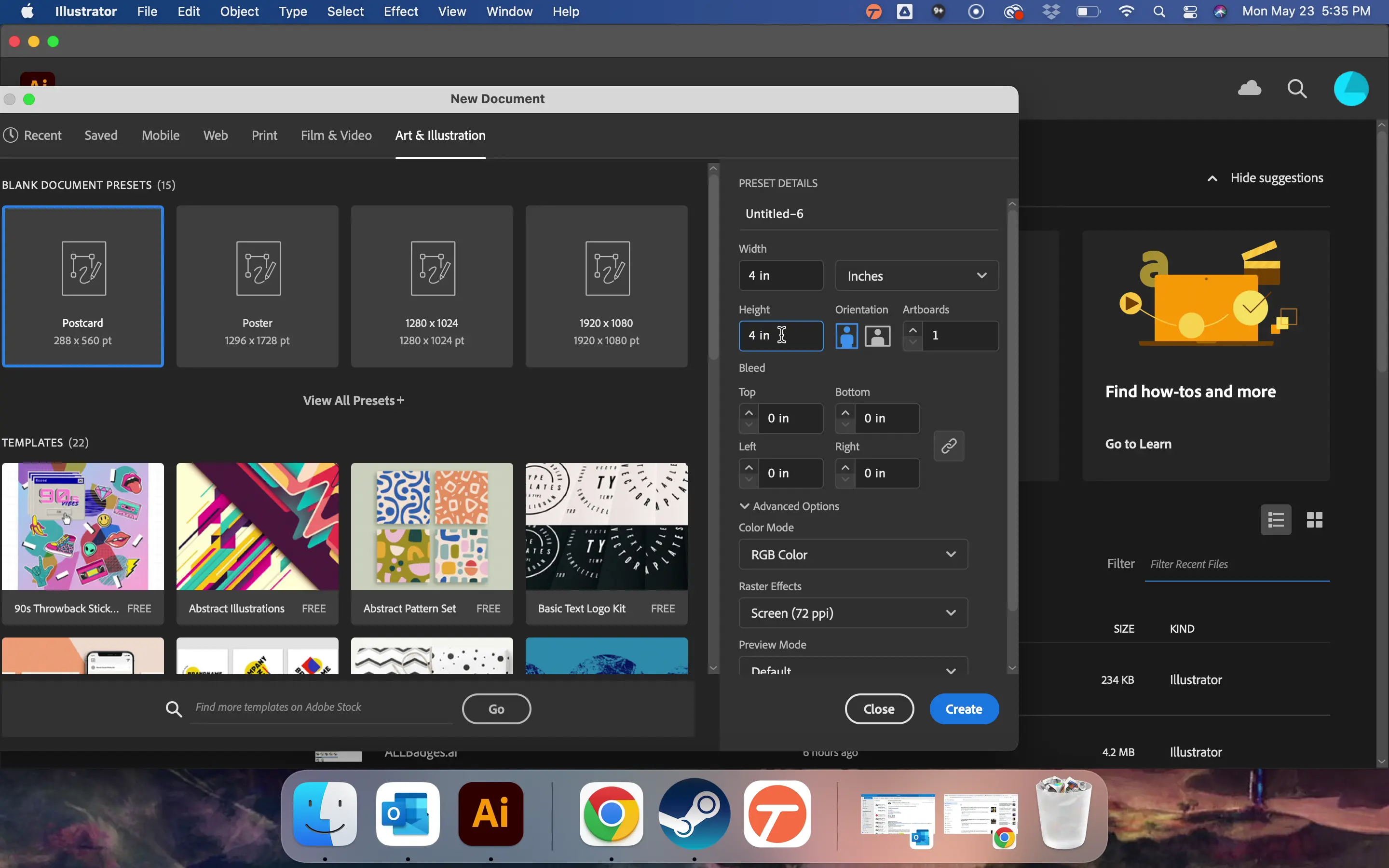

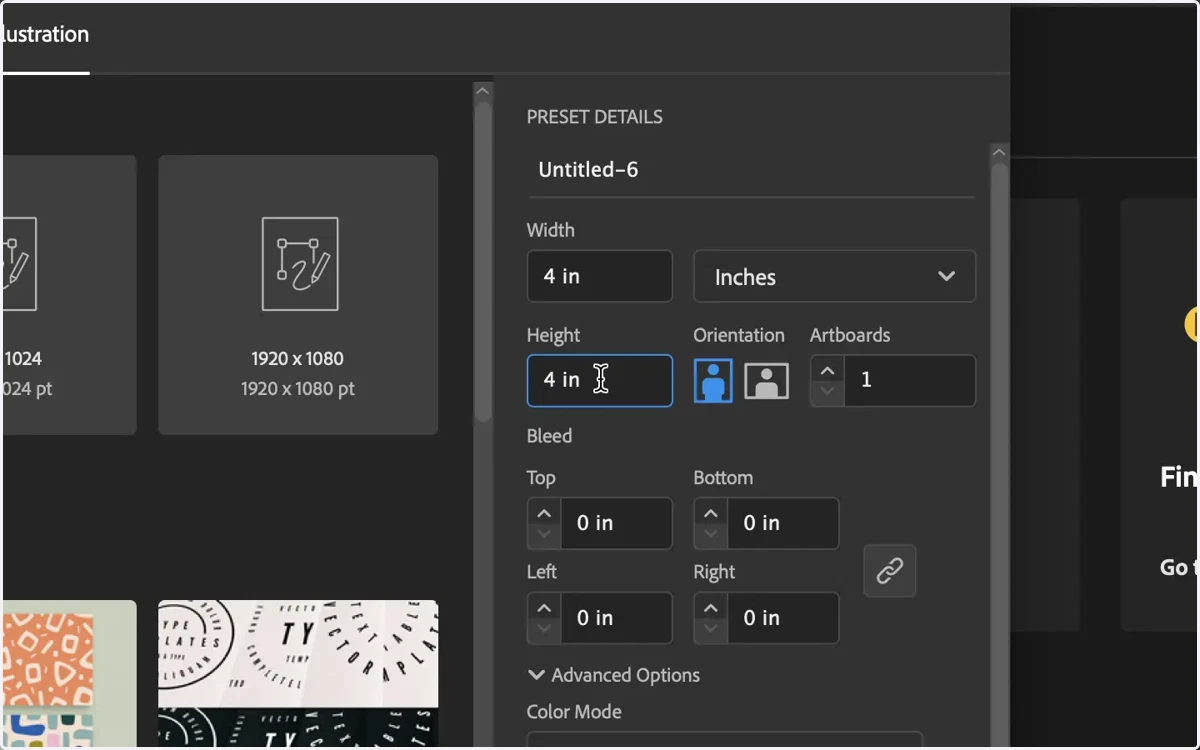

Set the dimensions to 4" by 4"

Set the dimensions to 4" by 4"
5

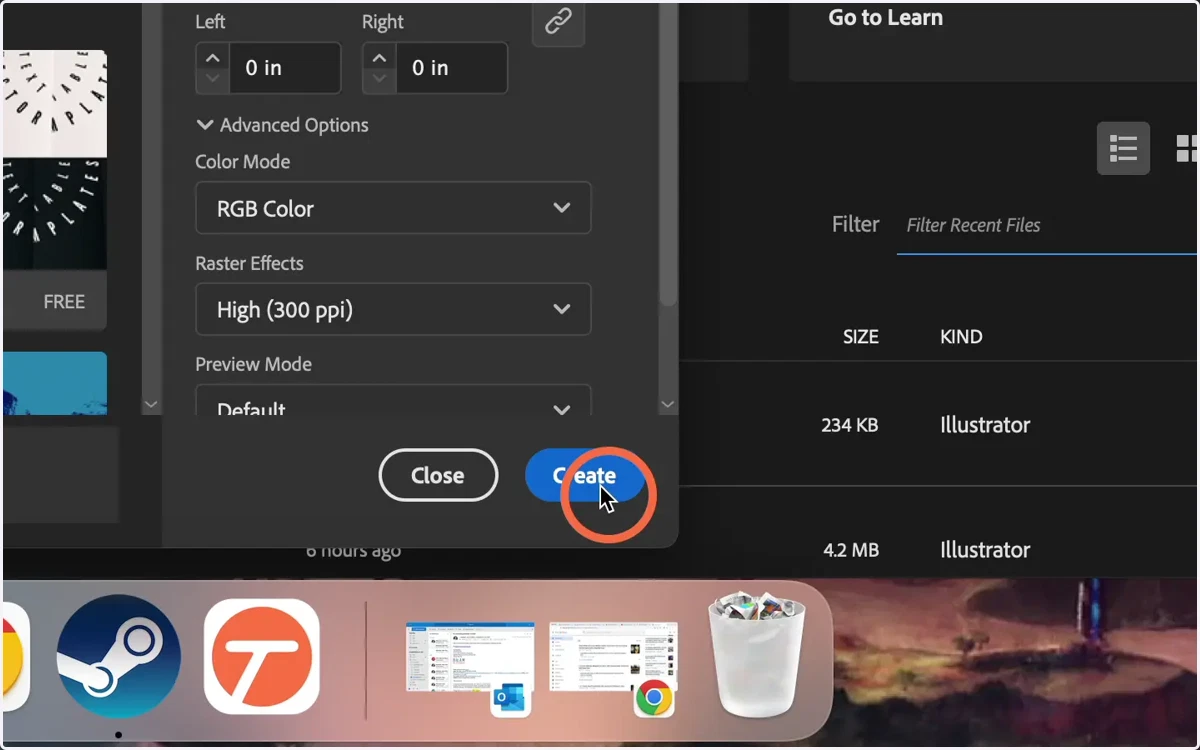

Click 'Create' to generate your canvas

Click 'Create' to generate your canvas
6

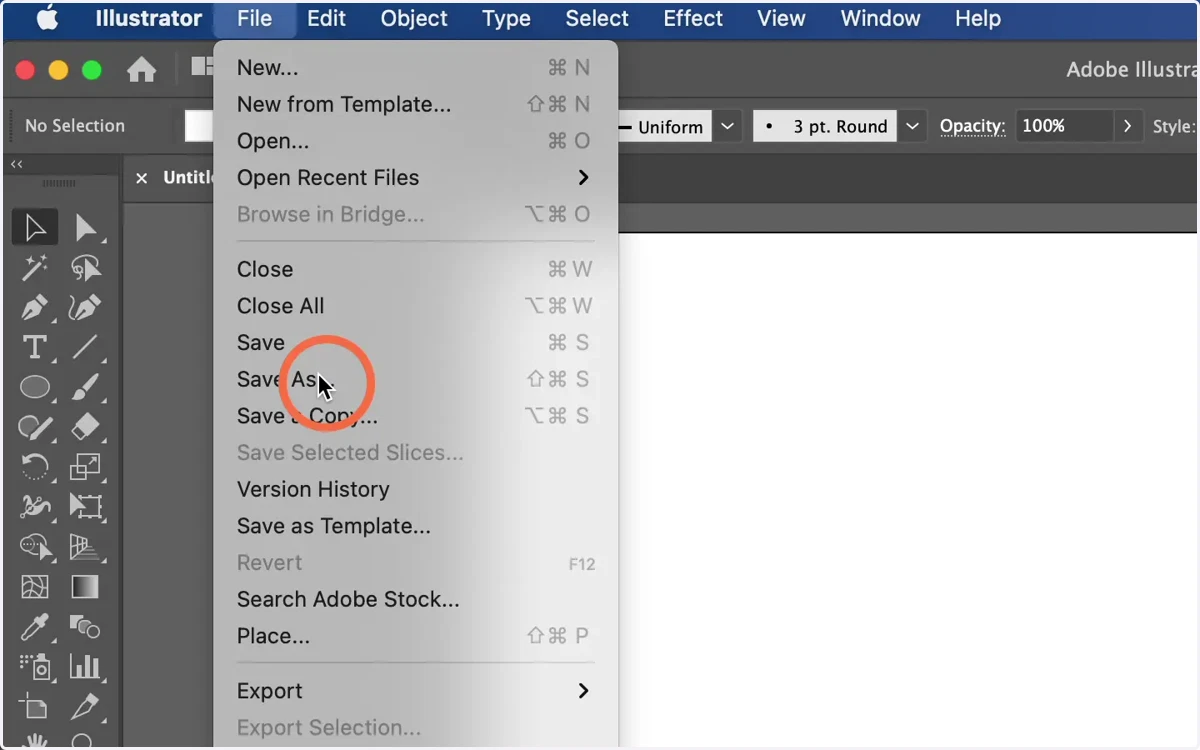

Rename your file by clicking 'File' then 'Save As...'

Rename your file by clicking 'File' then 'Save As...'
7

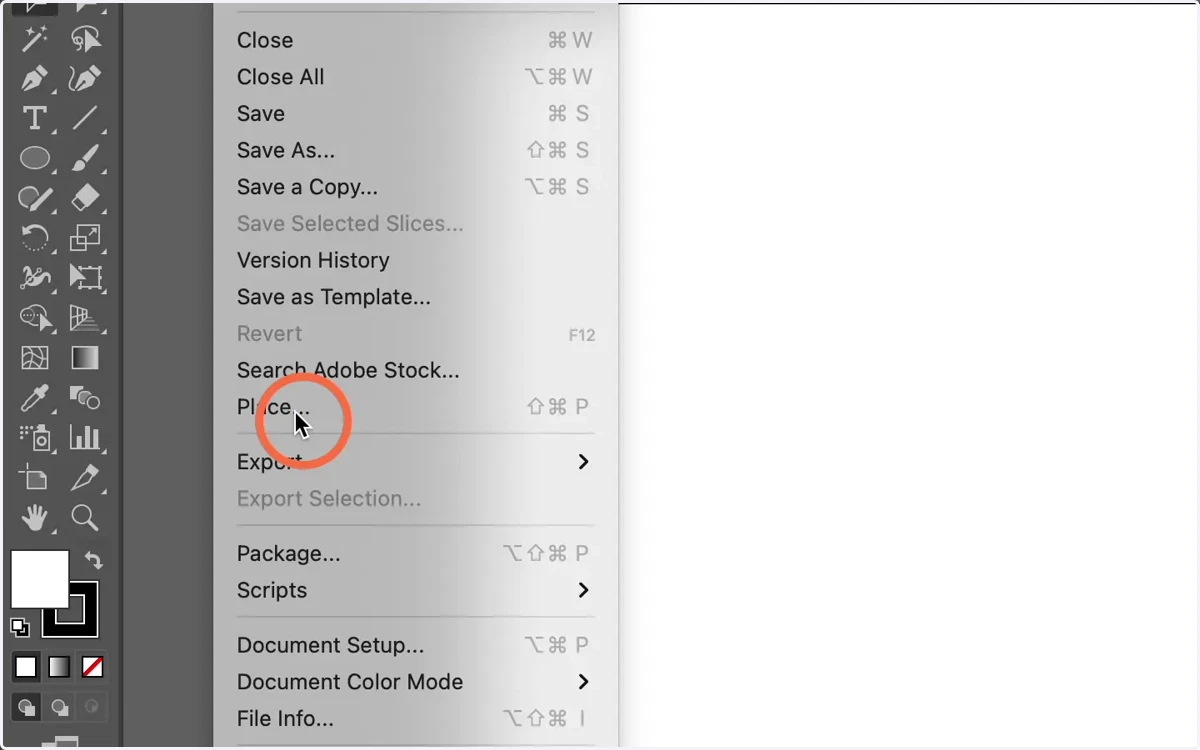

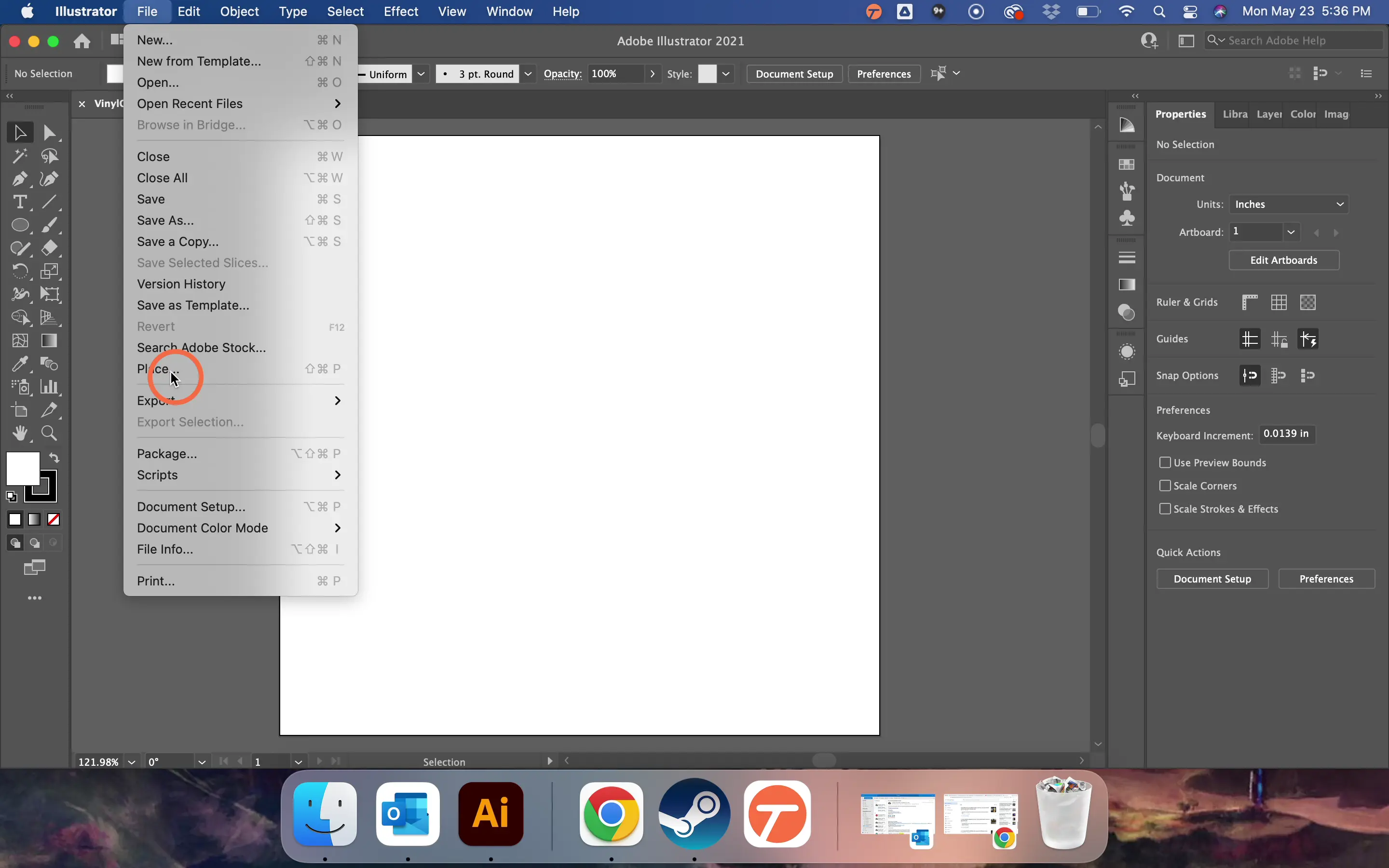

Click 'File' then 'Place' to place your image into Illustrator

Click 'File' then 'Place' to place your image into Illustrator
    a

adobe

3 Steps
8

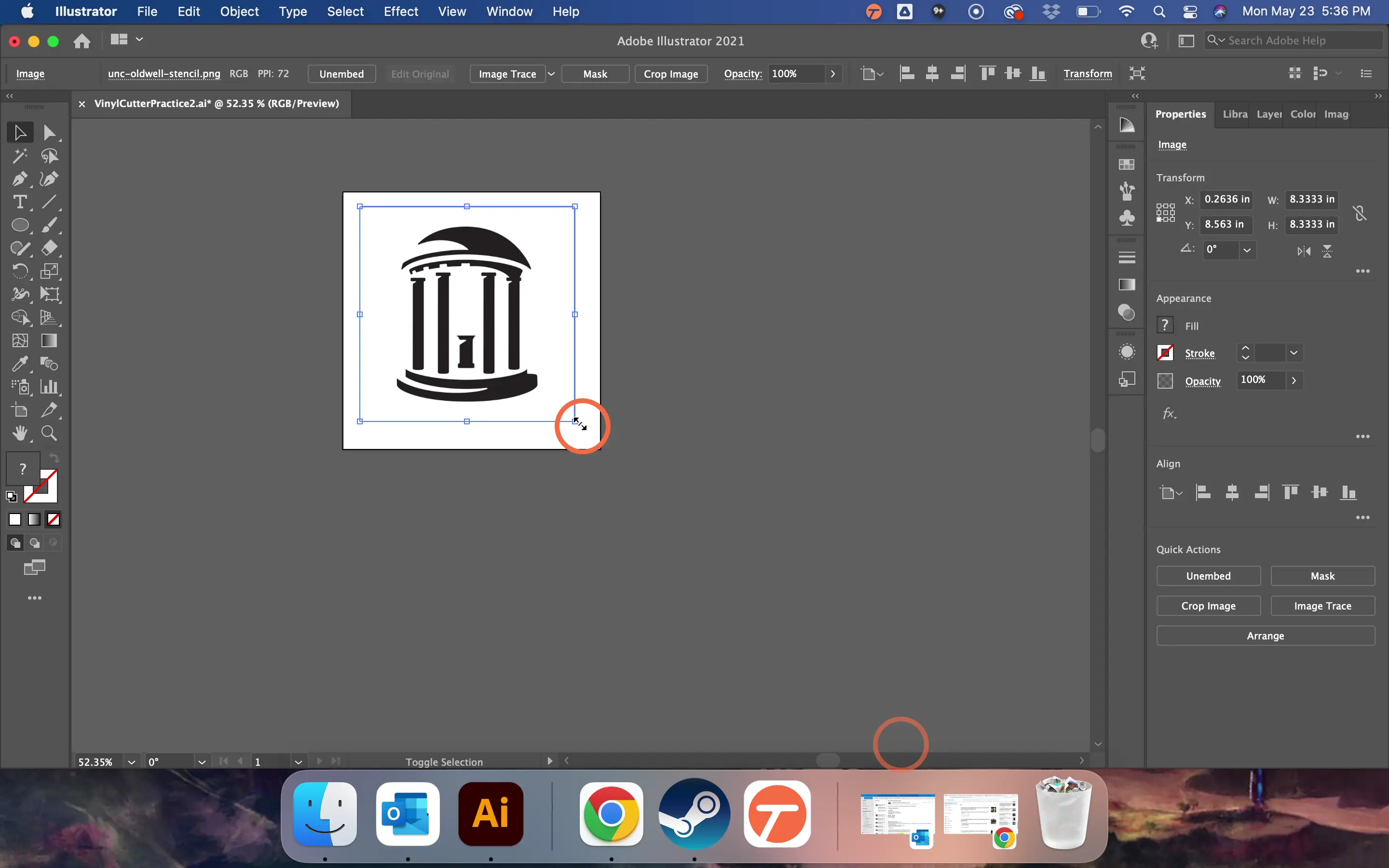

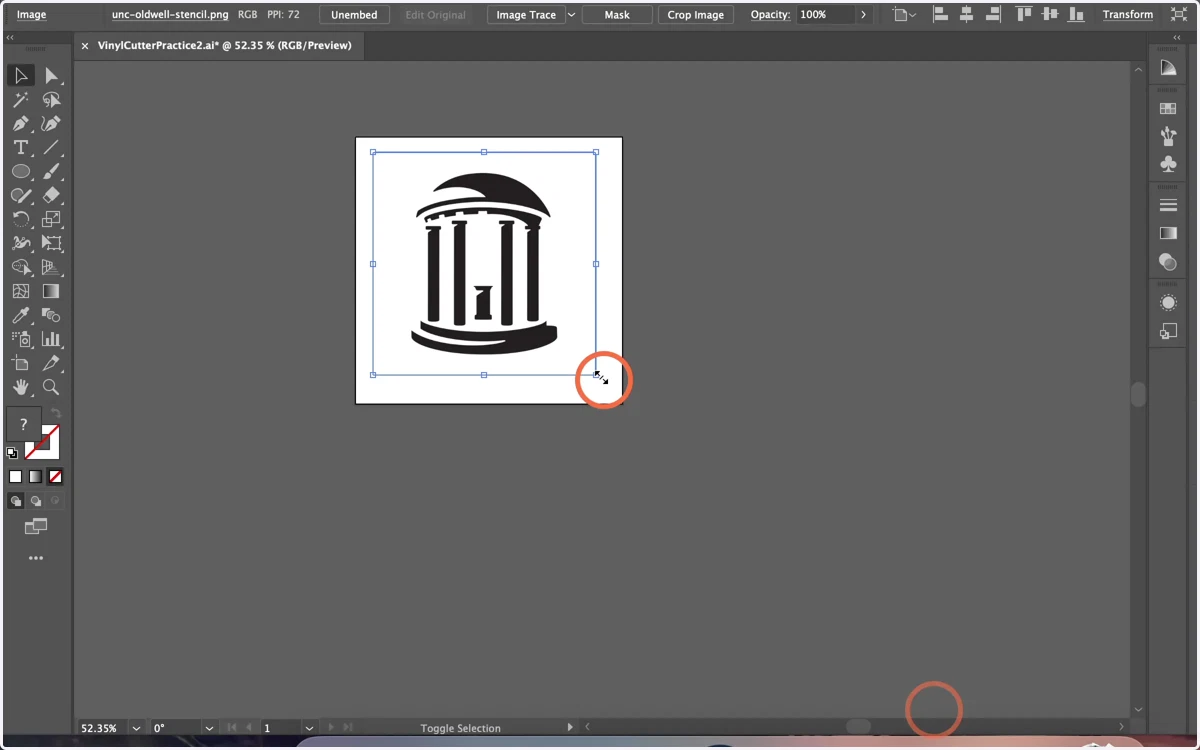

Hold Shift and drag the corners to resize your image

Hold Shift and drag the corners to resize your image
9

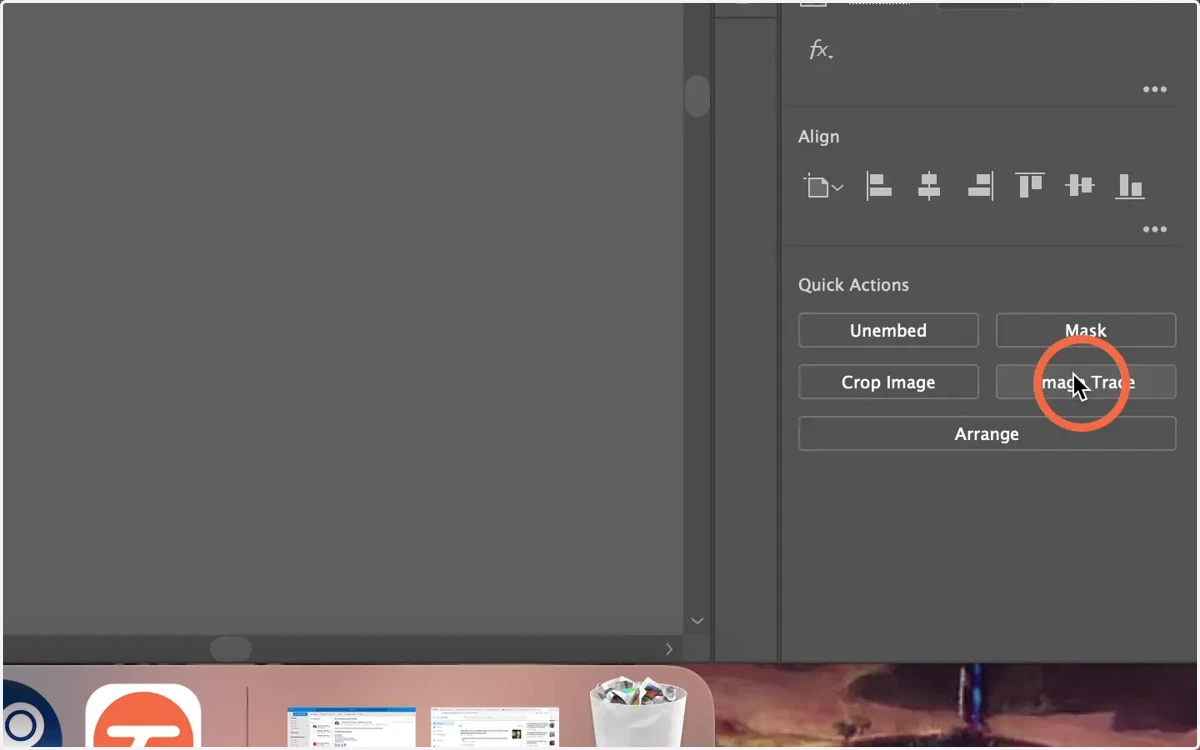

Click the 'Image Trace' button to convert your image into vector paths

Click the 'Image Trace' button to convert your image into vector paths
10

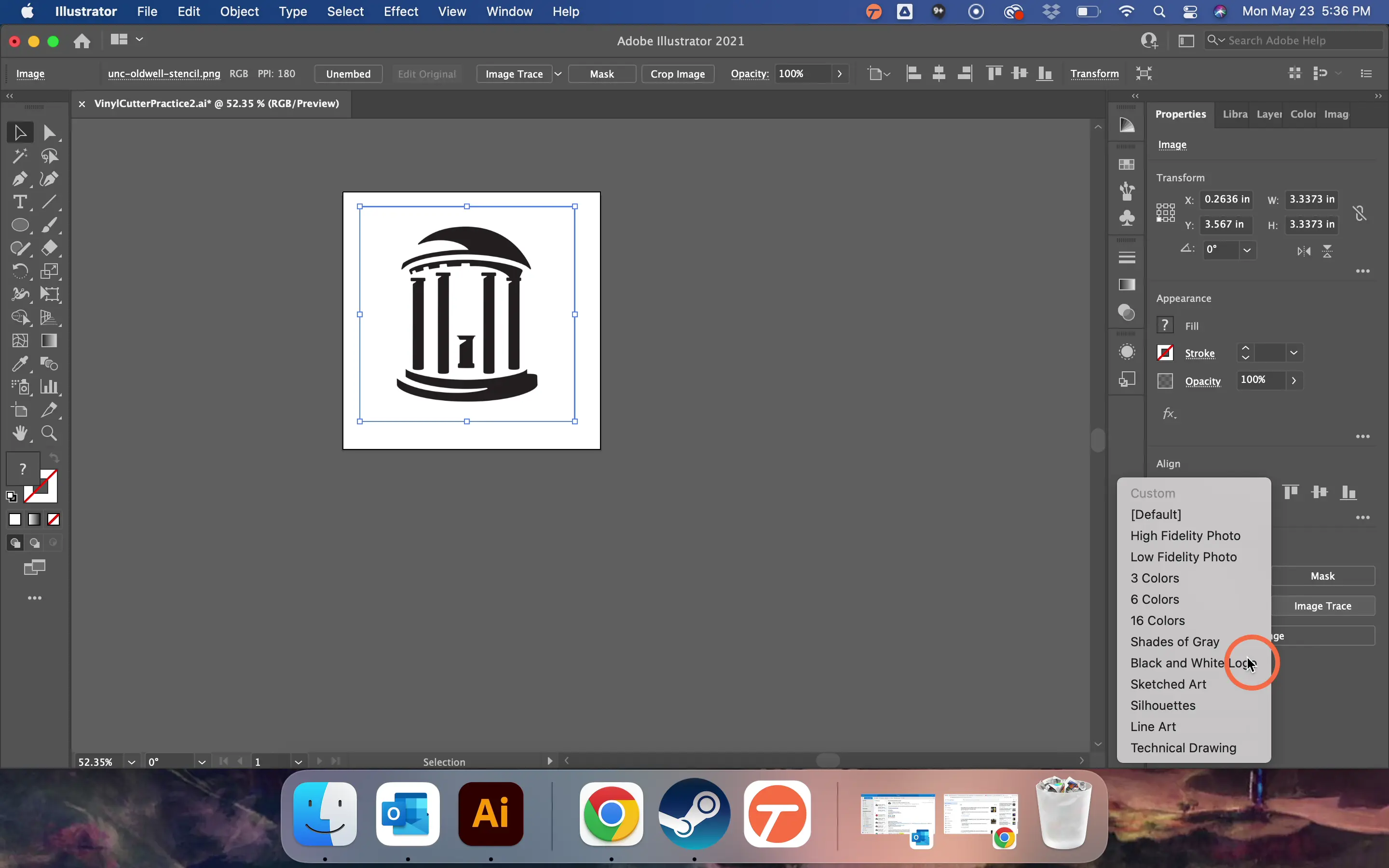

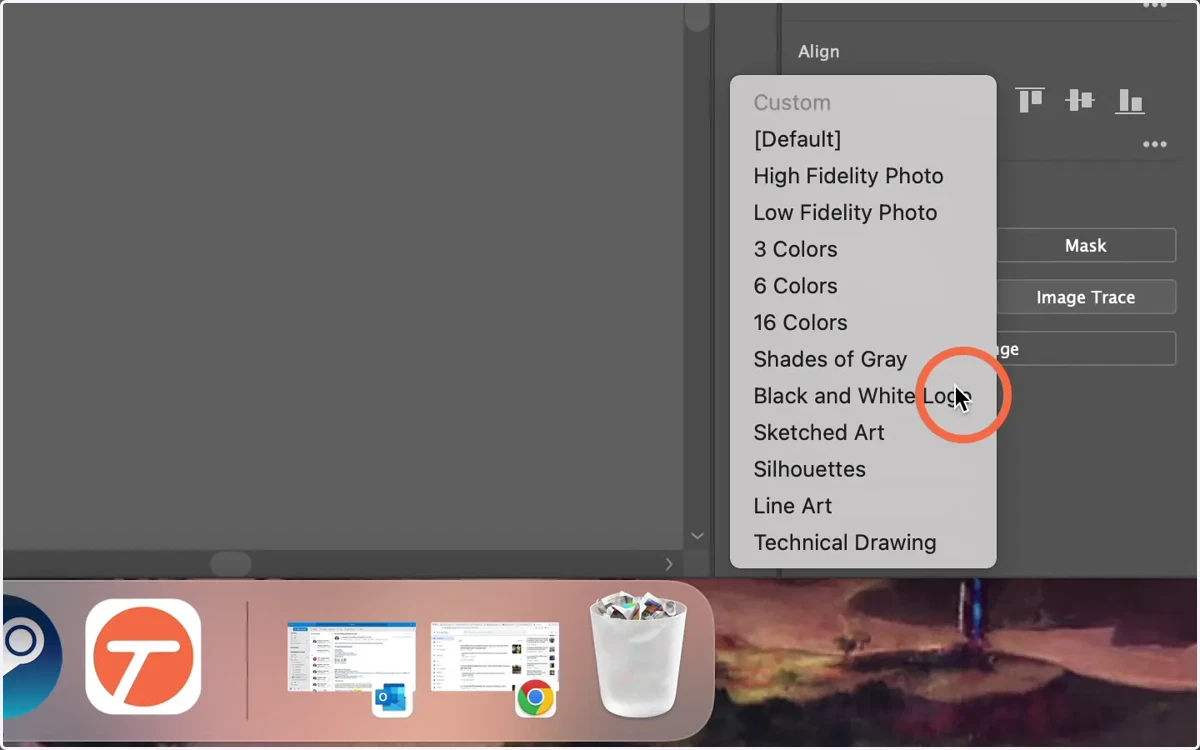

Select 'Black and White Logo' for the simplest tracing option

Select 'Black and White Logo' for the simplest tracing option
    a

adobe

2 Steps
11

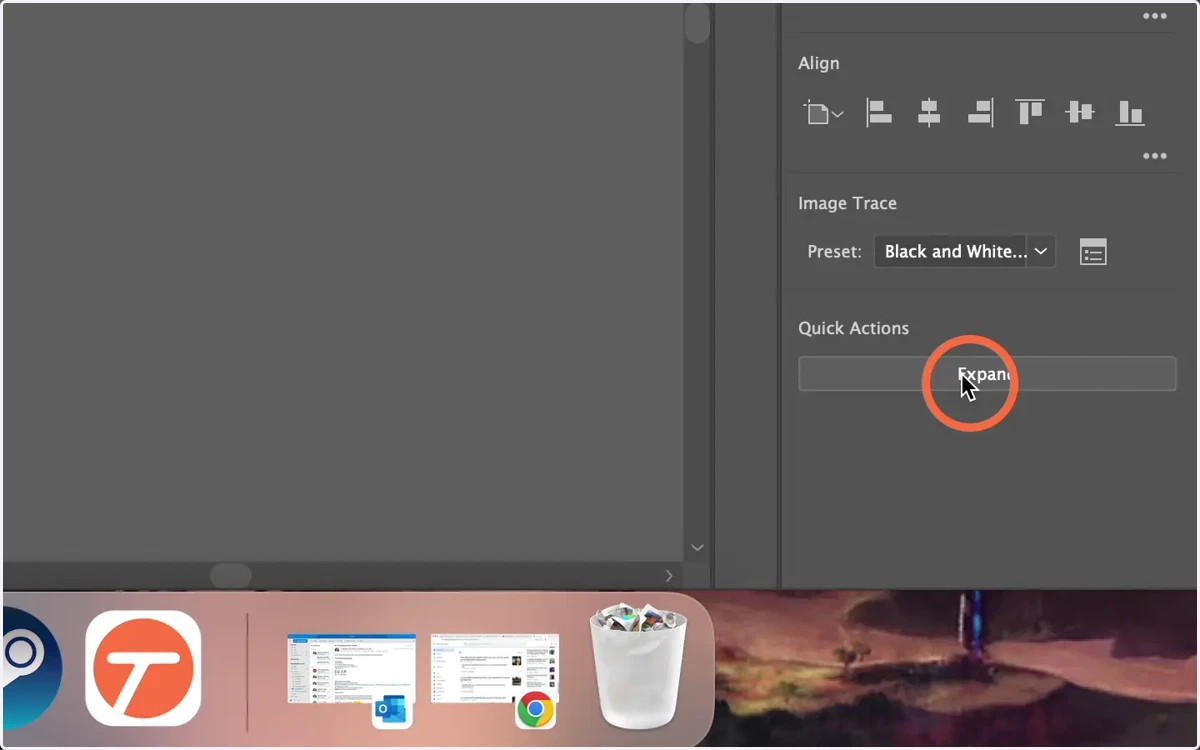

Click 'Expand' to finalize the 'Image Trace' process

Click 'Expand' to finalize the 'Image Trace' process
12

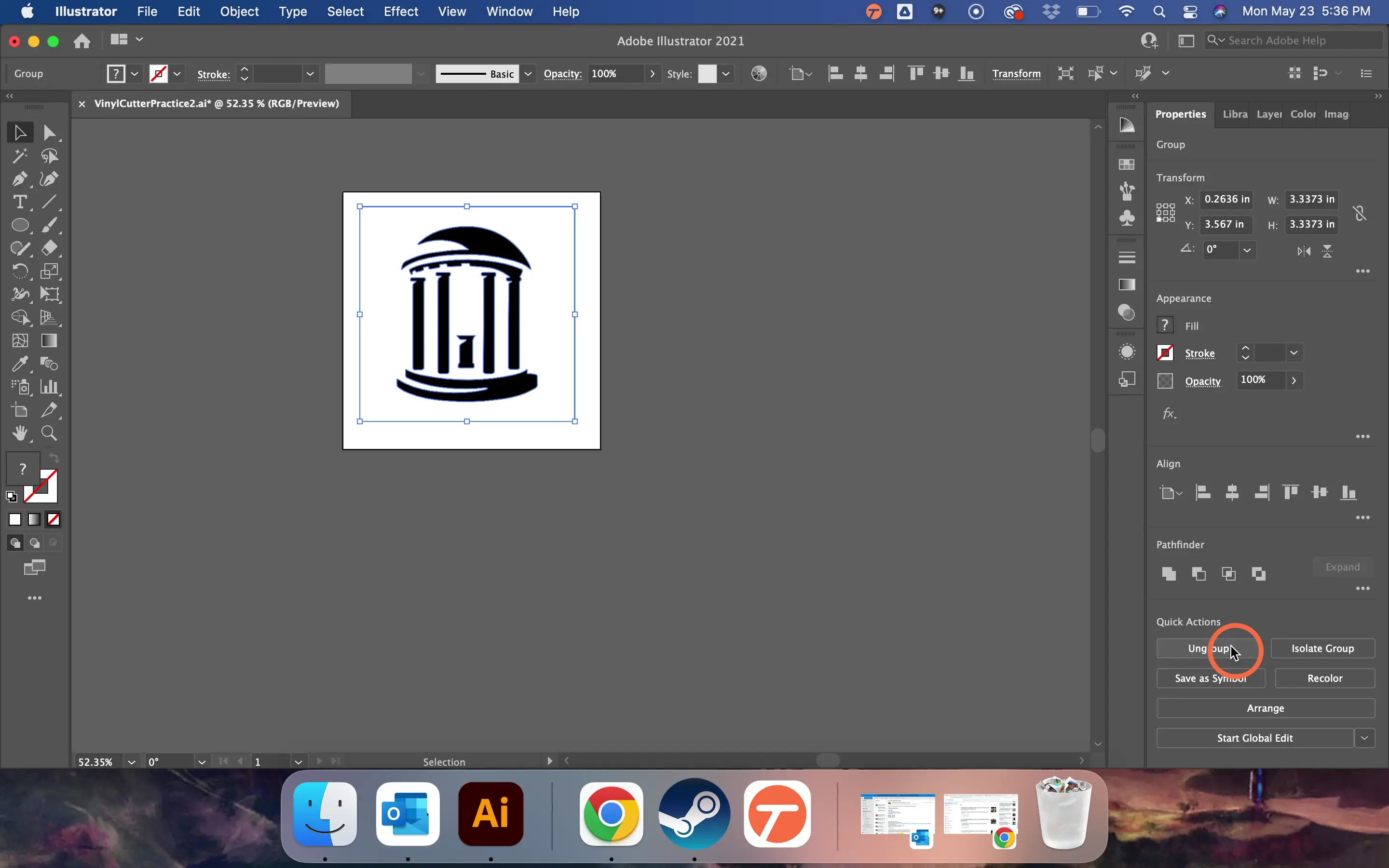

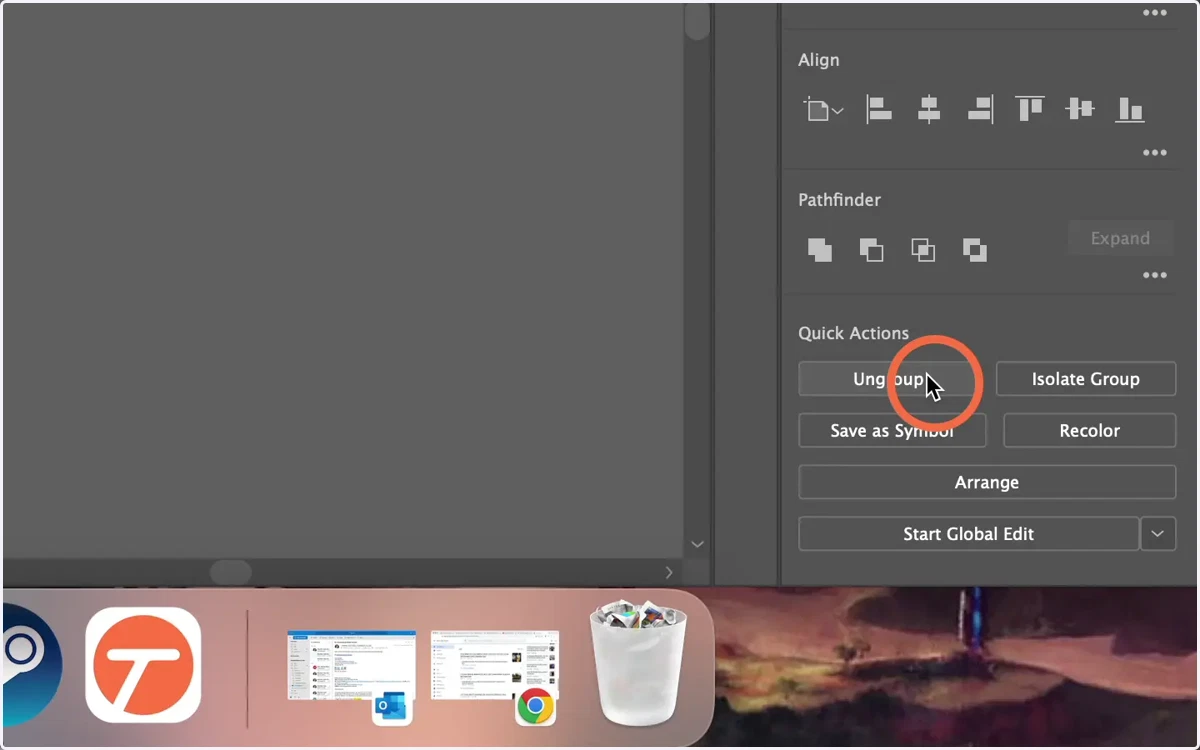

Click 'Ungroup' to ungroup your traced elements

Click 'Ungroup' to ungroup your traced elements
    a

adobe

5 Steps
13

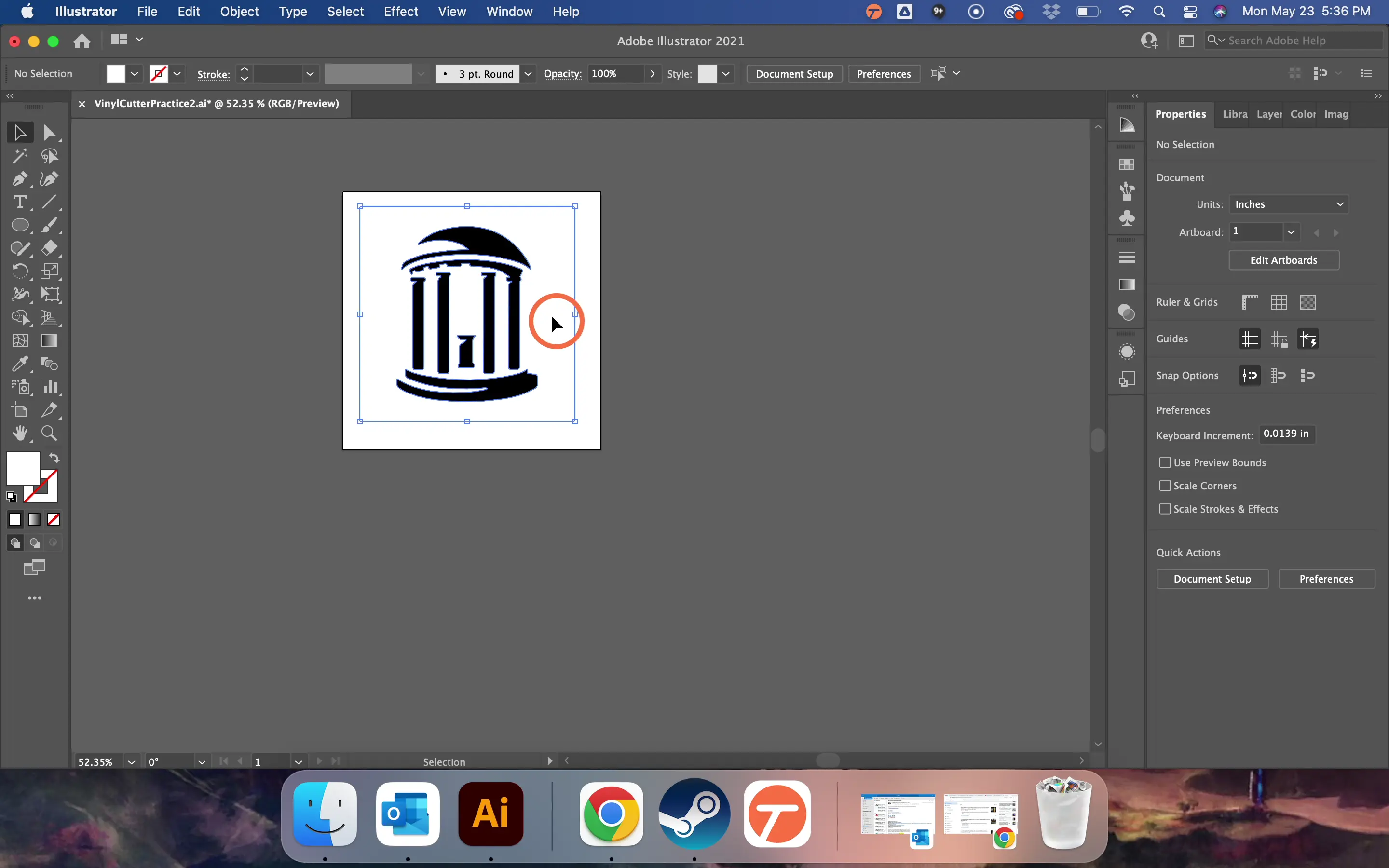

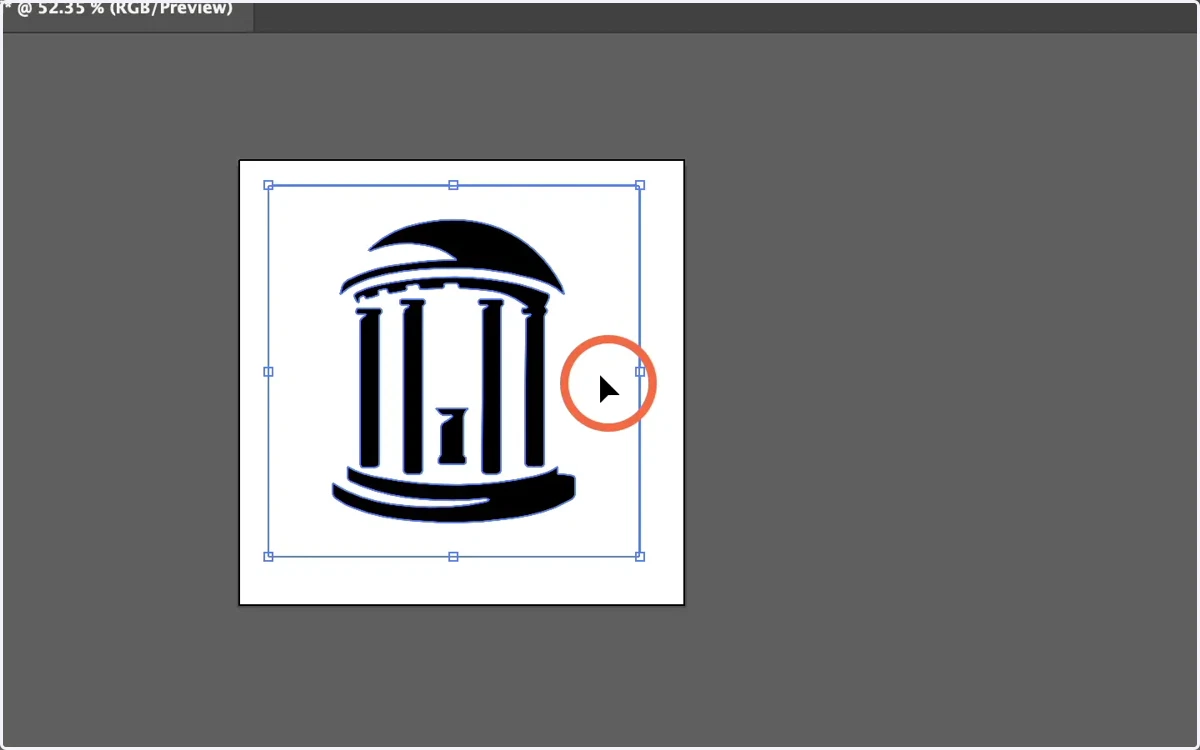

Click on the white background and press 'delete' to remove it

Click on the white background and press 'delete' to remove it
14

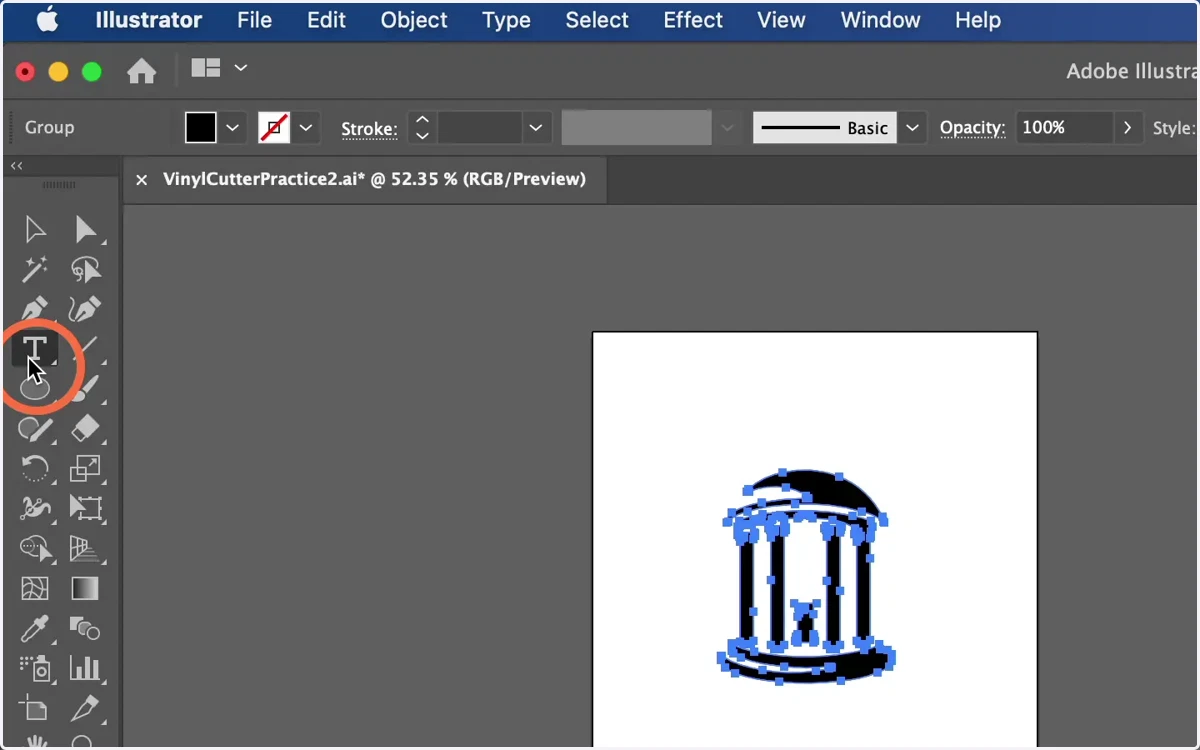

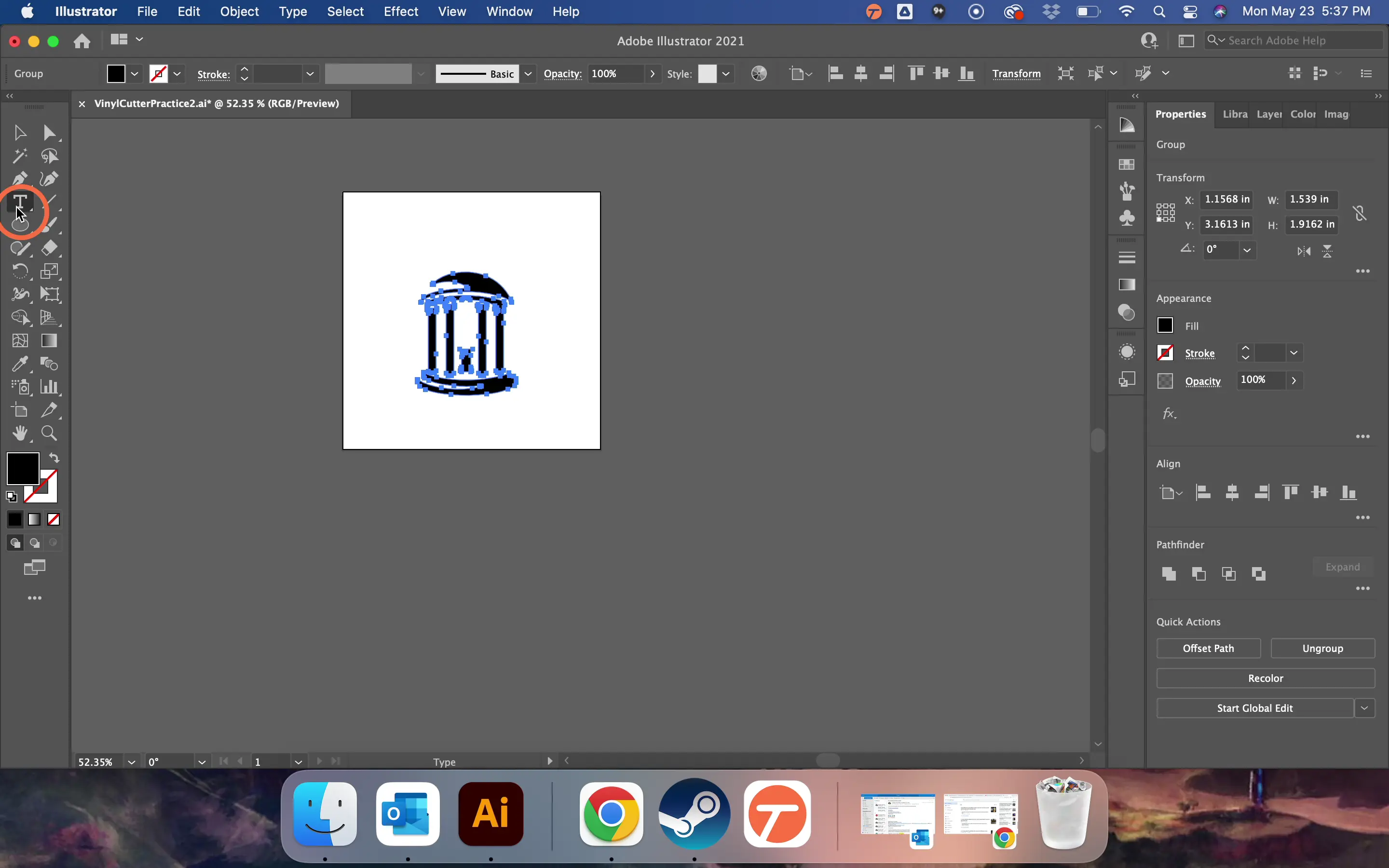

Select the 'T' icon in the sidebar to use the Type Tool

Select the 'T' icon in the sidebar to use the Type Tool
15

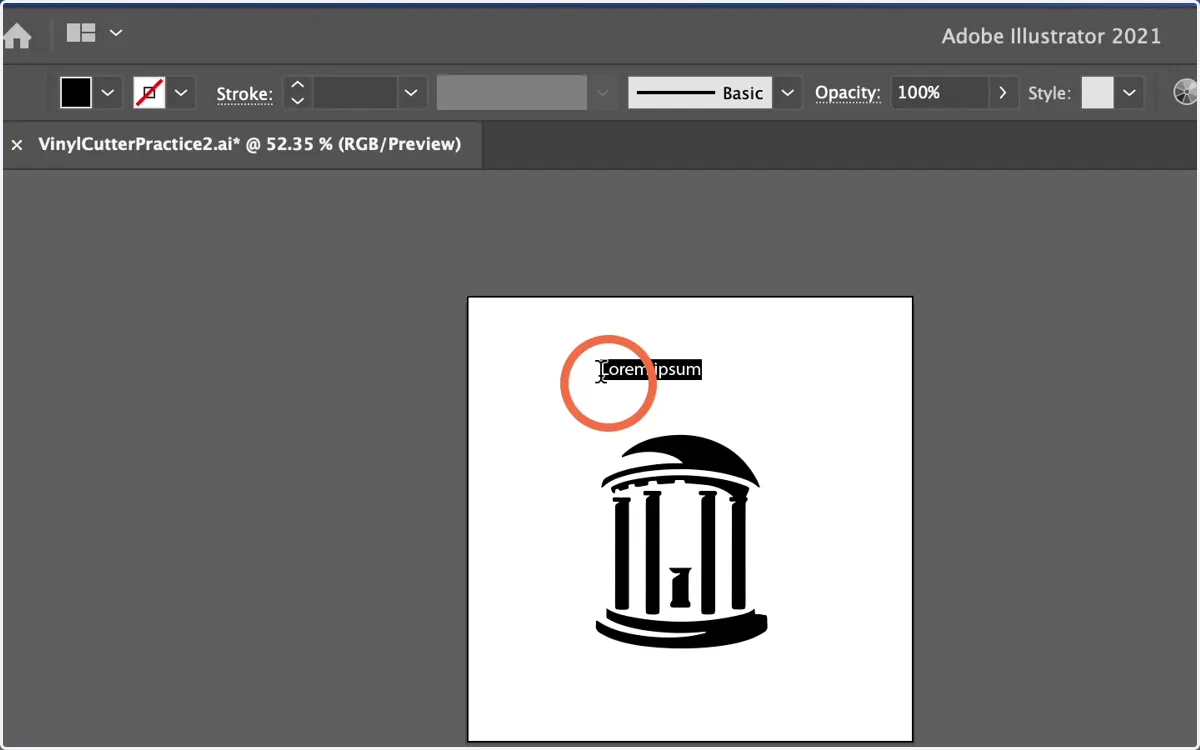

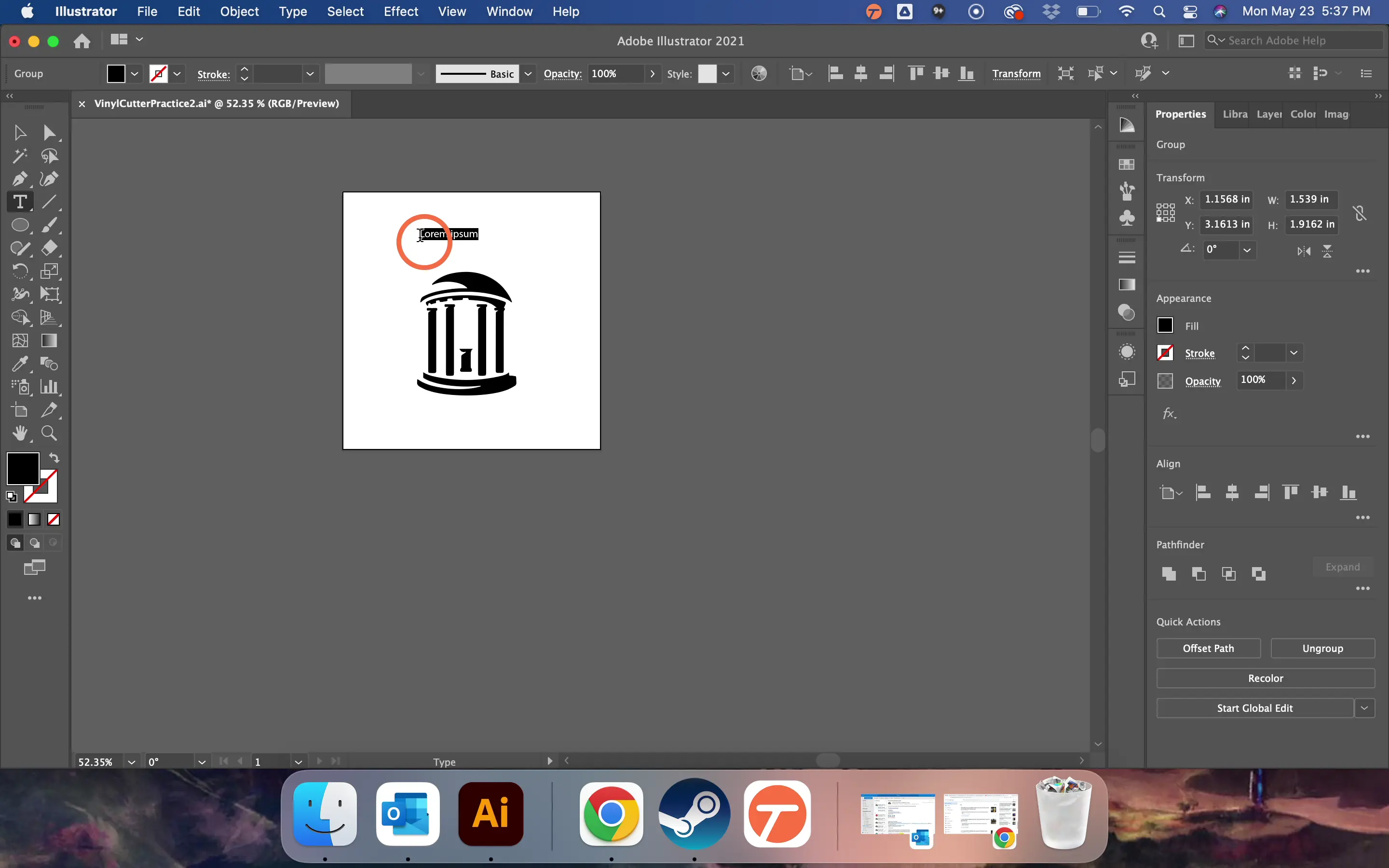

Click anywhere on the canvas to create a text box

Click anywhere on the canvas to create a text box
16

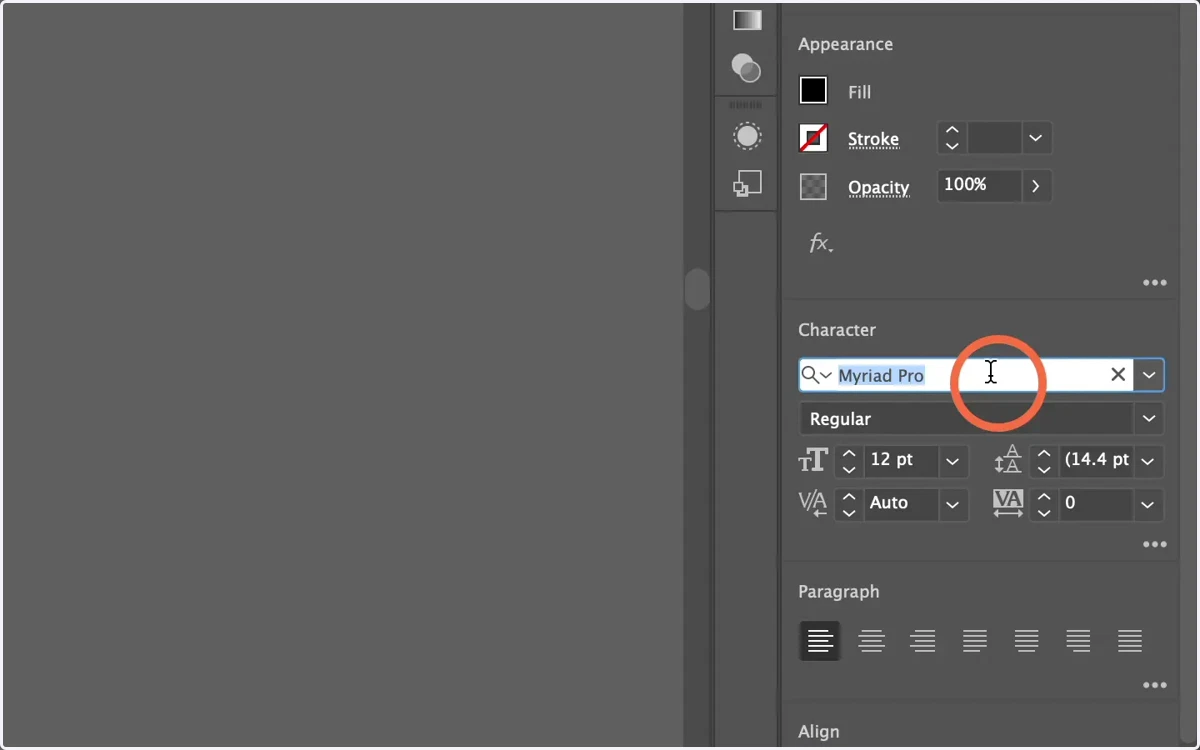

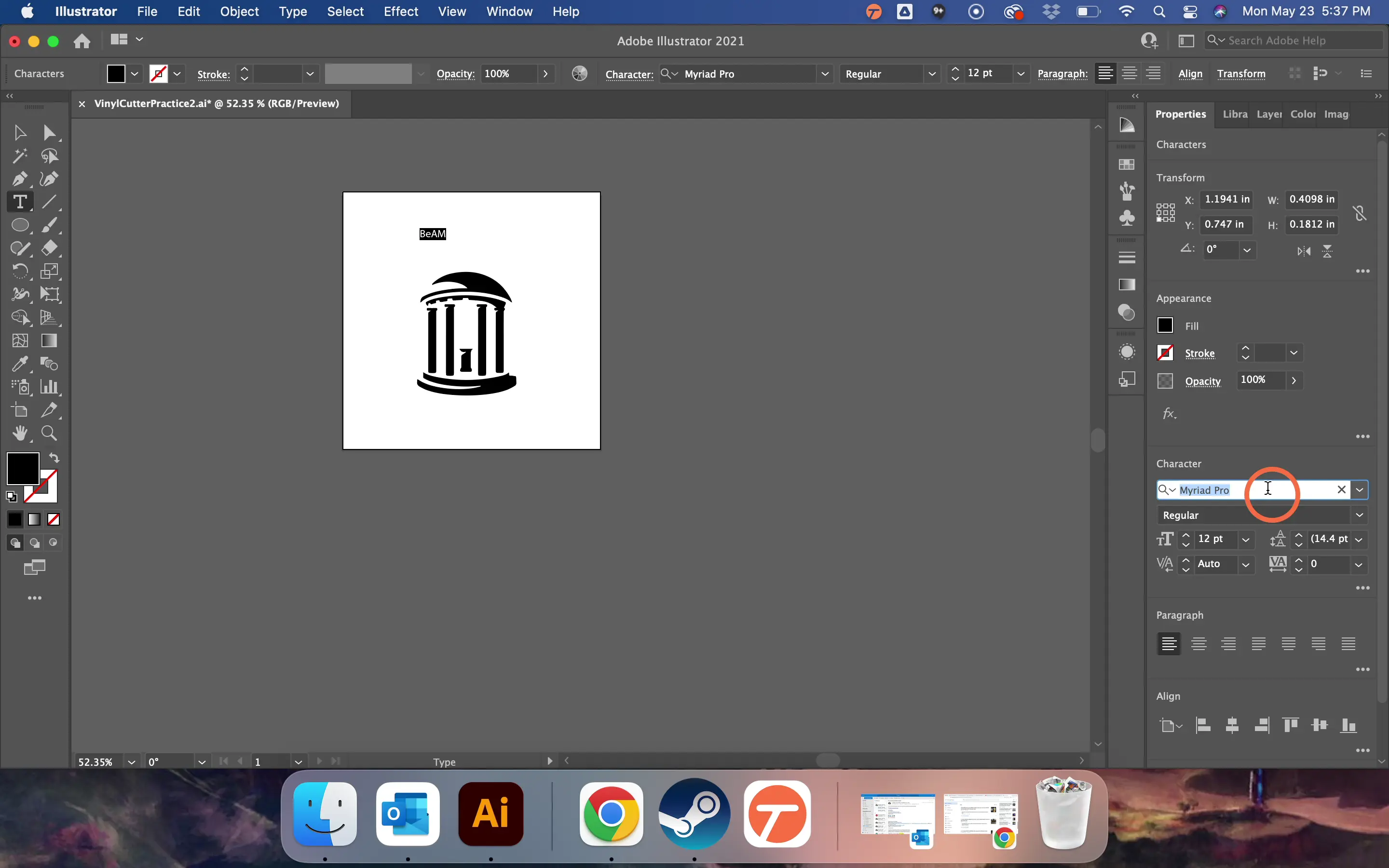

You can change the font, font size, etc. with the Properties panel

You can change the font, font size, etc. with the Properties panel
17

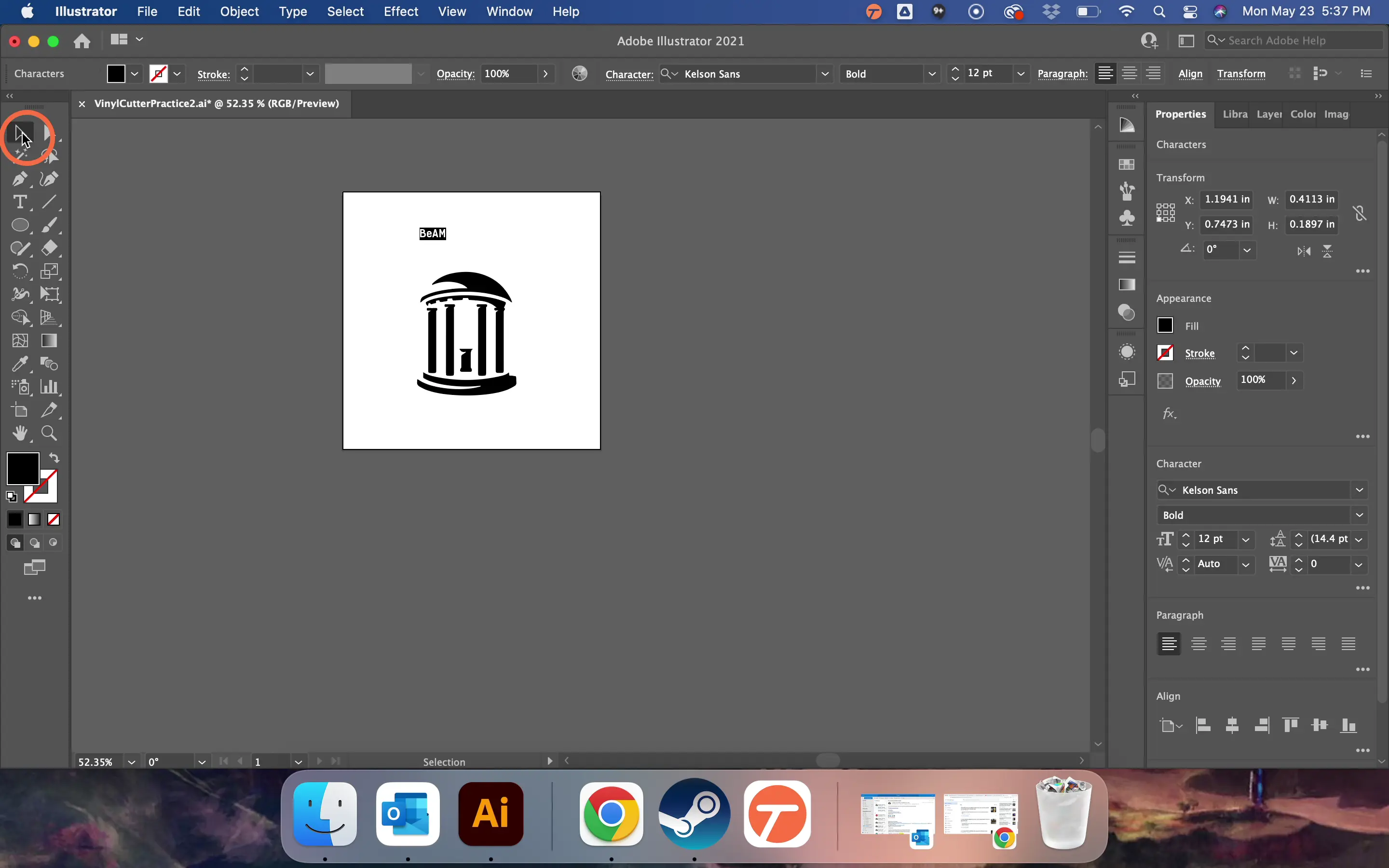

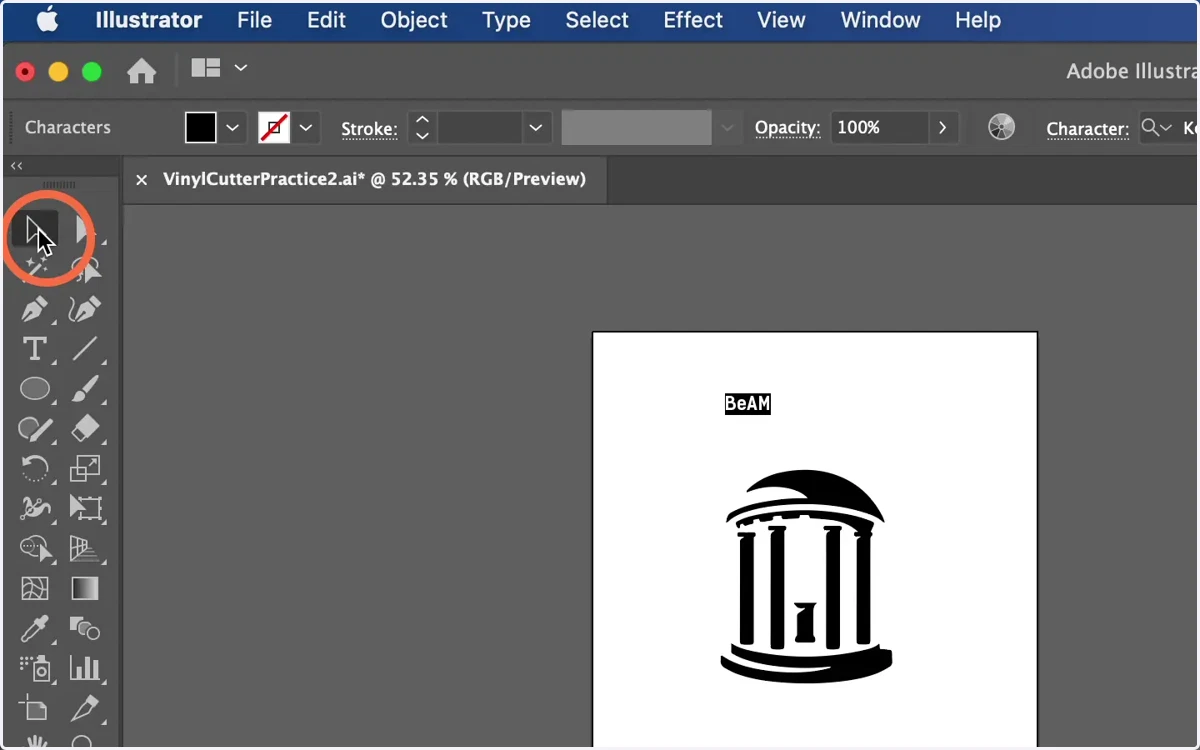

Use the black arrow 'Selection' tool to move your text around the canvas

Use the black arrow 'Selection' tool to move your text around the canvas
    a

adobe

4 Steps
18

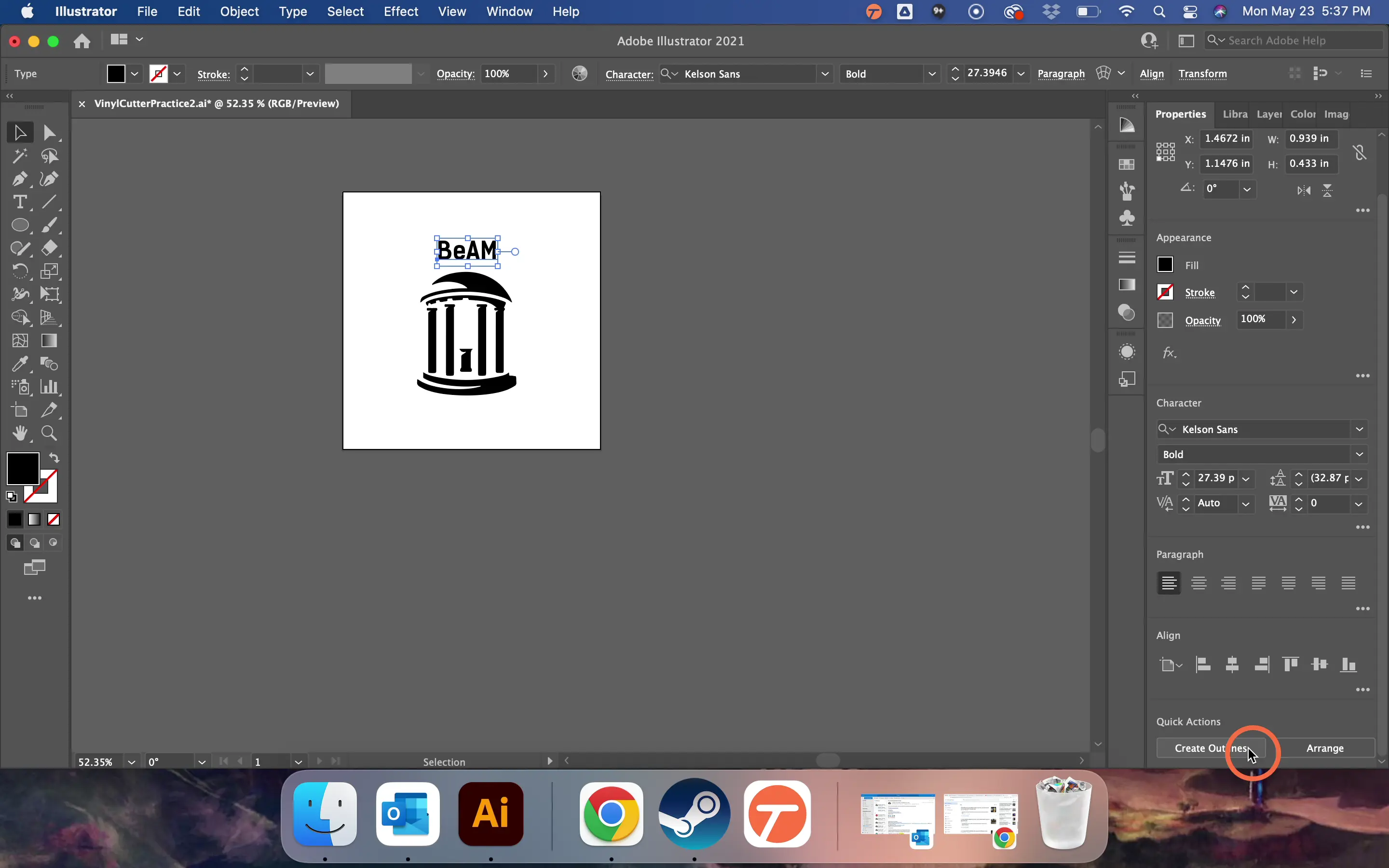

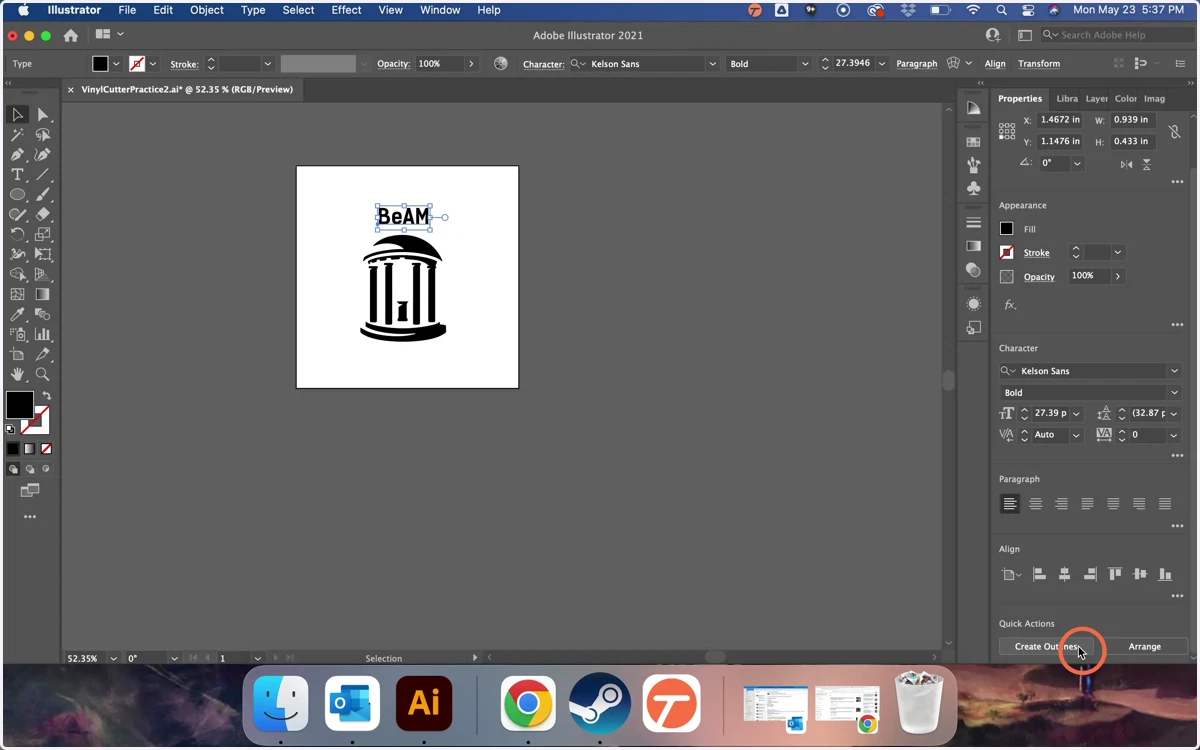

When you have the text the way you want it, click 'Create Outlines'

When you have the text the way you want it, click 'Create Outlines'
19

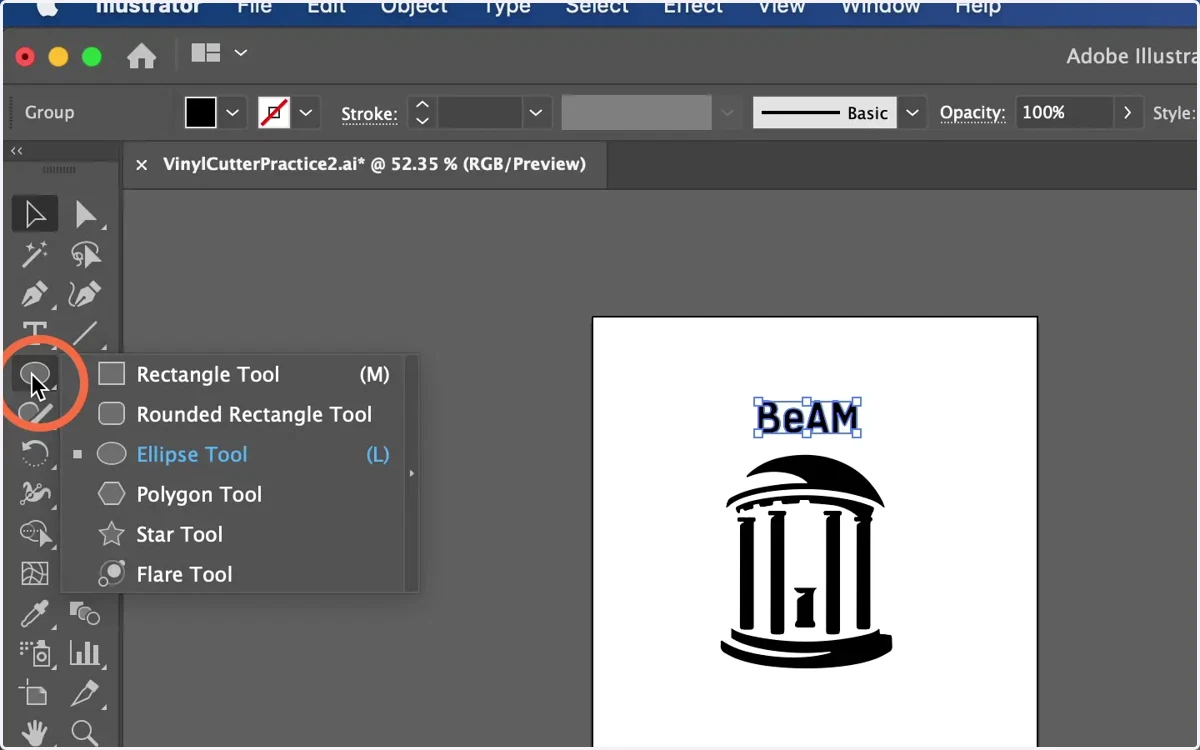

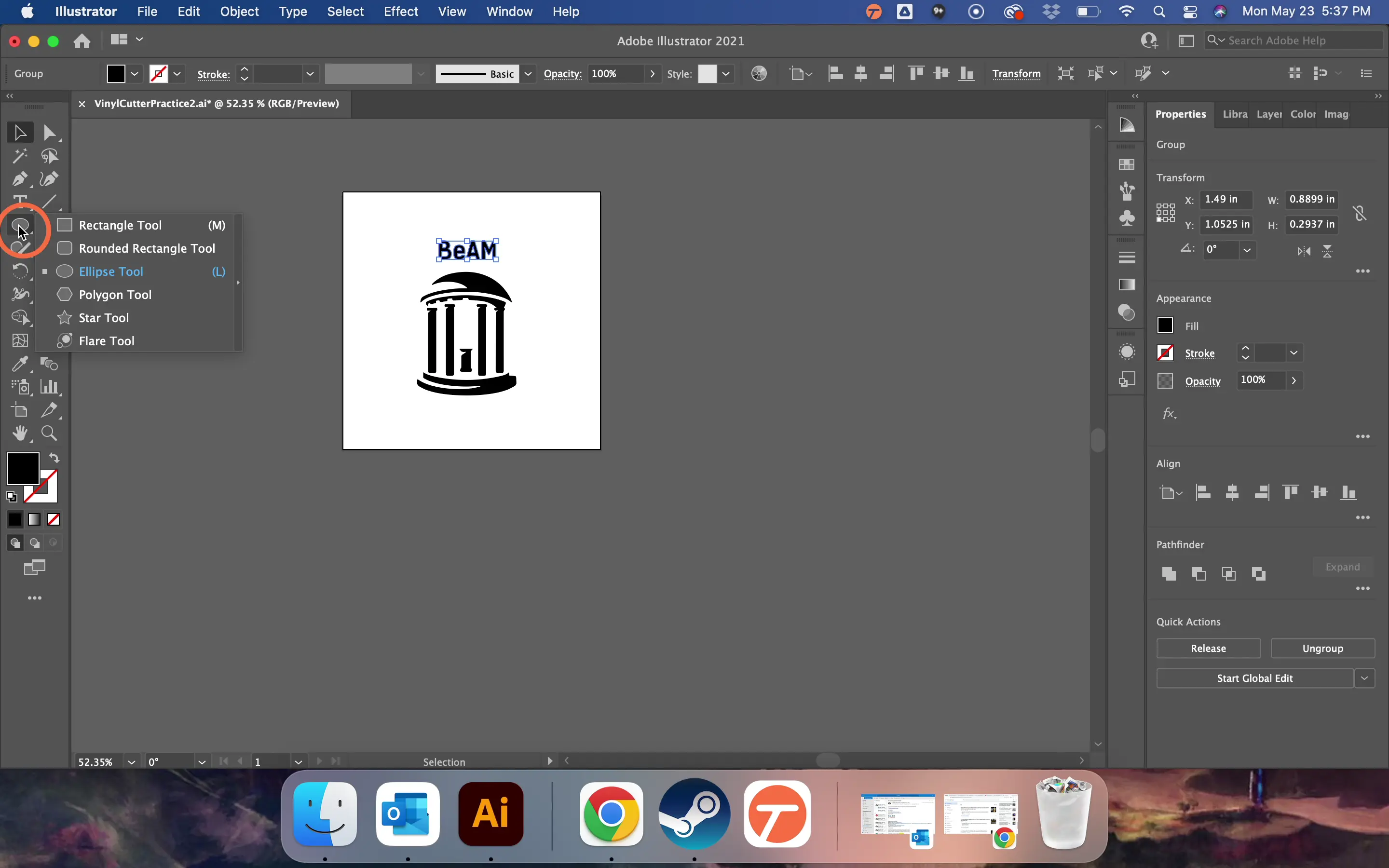

Right-click the 'Shapes Tool' to see options (Rectangle, Ellipse, etc.)

Right-click the 'Shapes Tool' to see options (Rectangle, Ellipse, etc.)
20

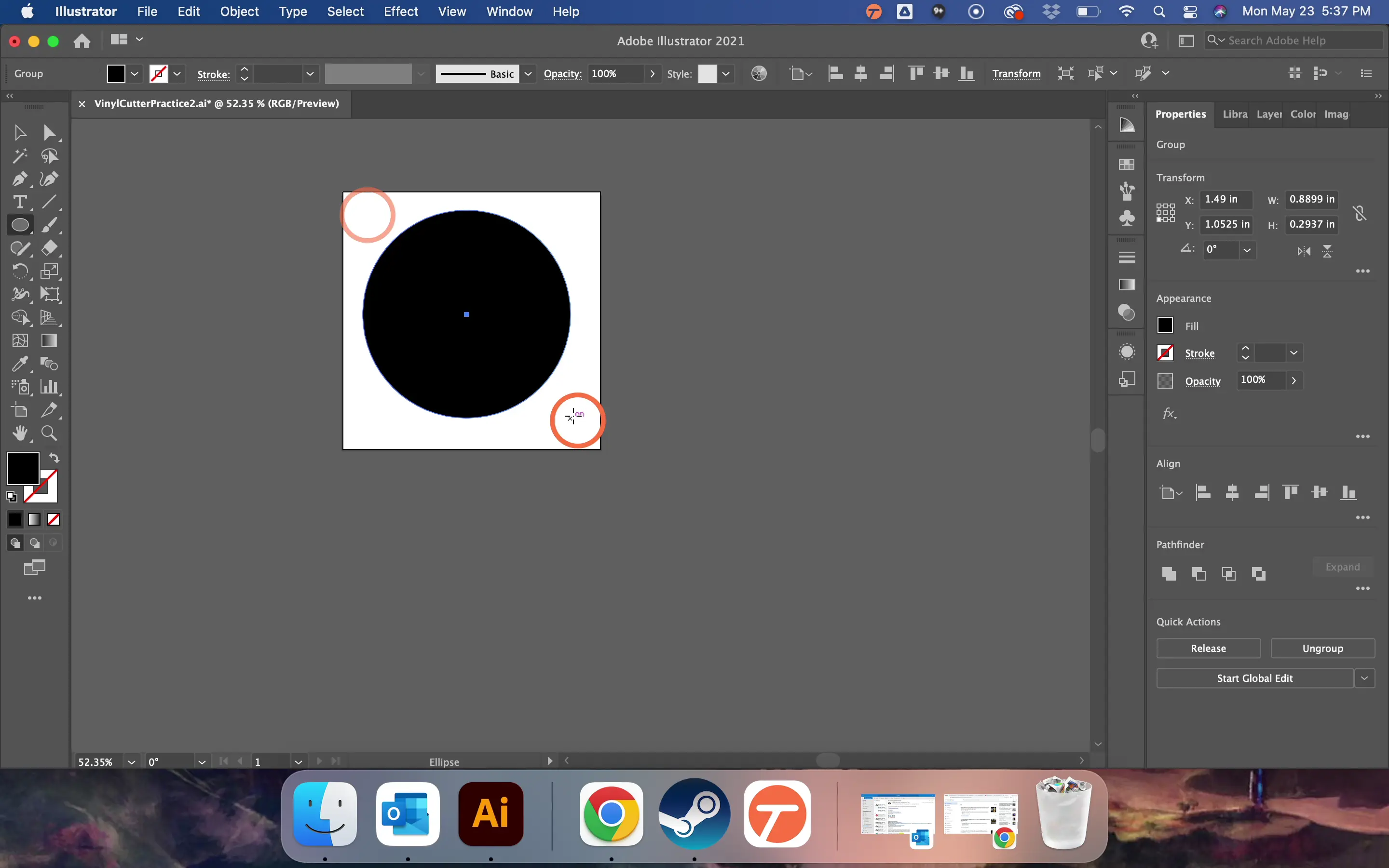

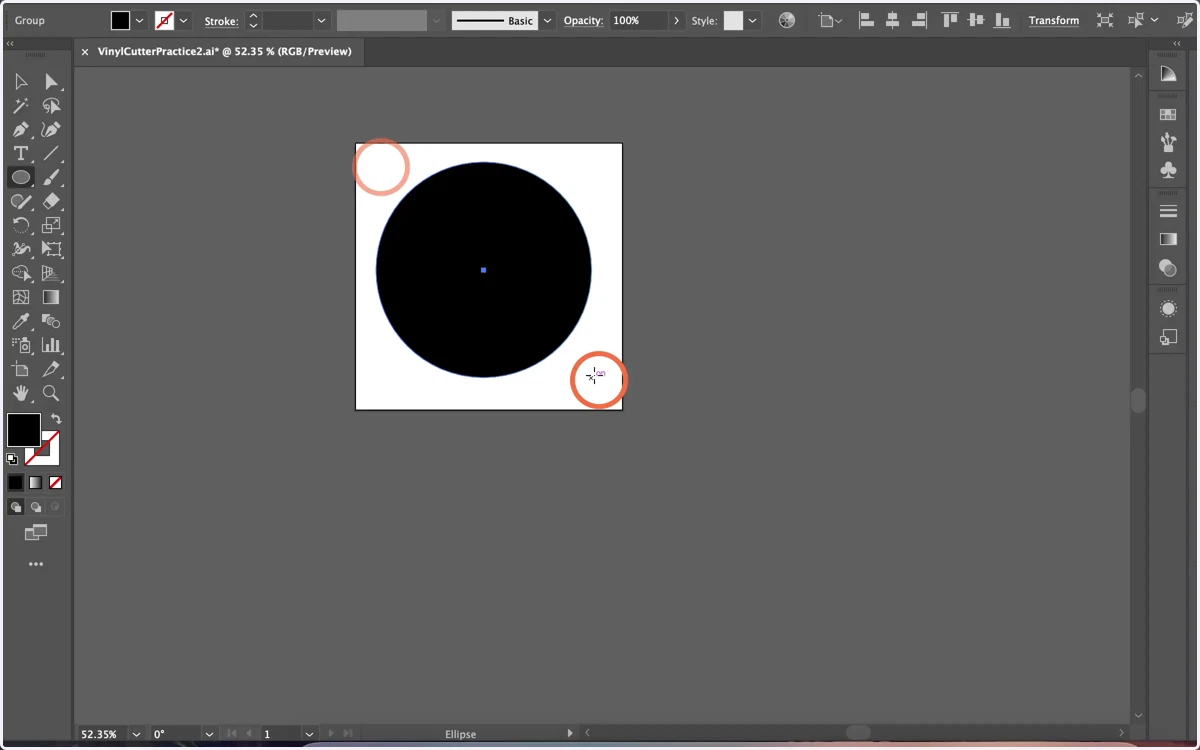

Click on the canvas and drag to create your shape

Click on the canvas and drag to create your shape
21

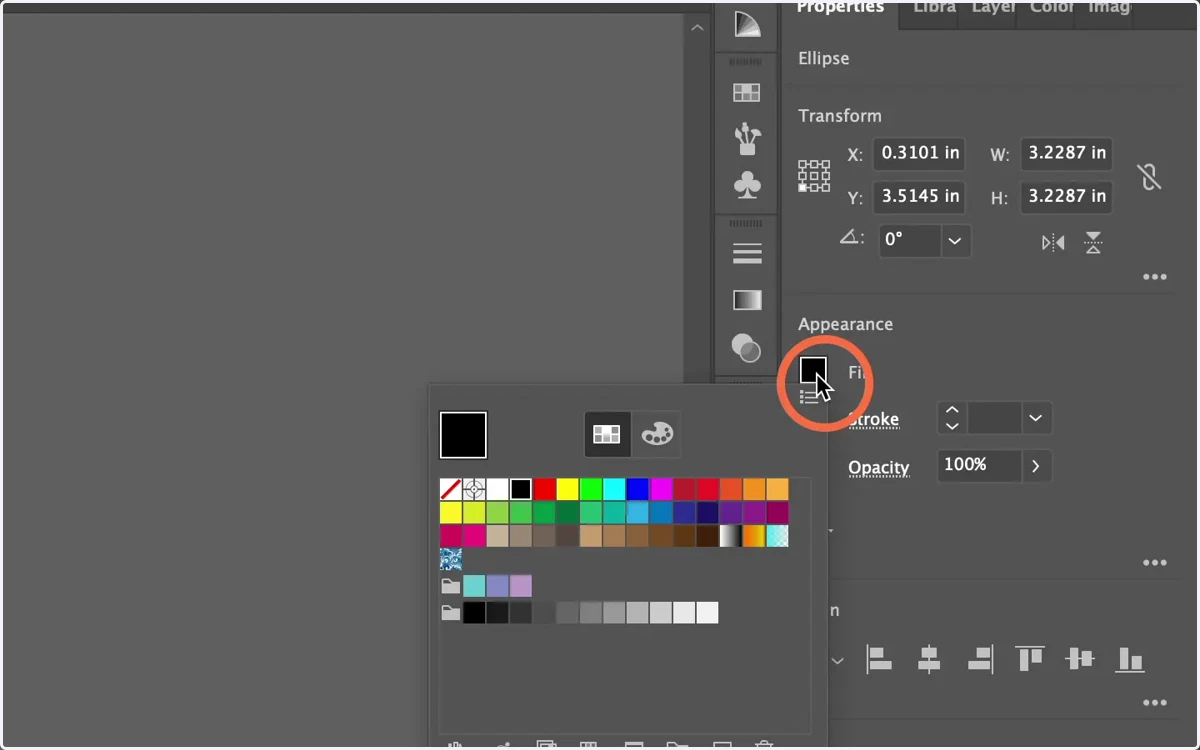

Remove the fill from the shape by selecting 'None' from the Fill Menu

Remove the fill from the shape by selecting 'None' from the Fill Menu
    a

adobe

4 Steps
22

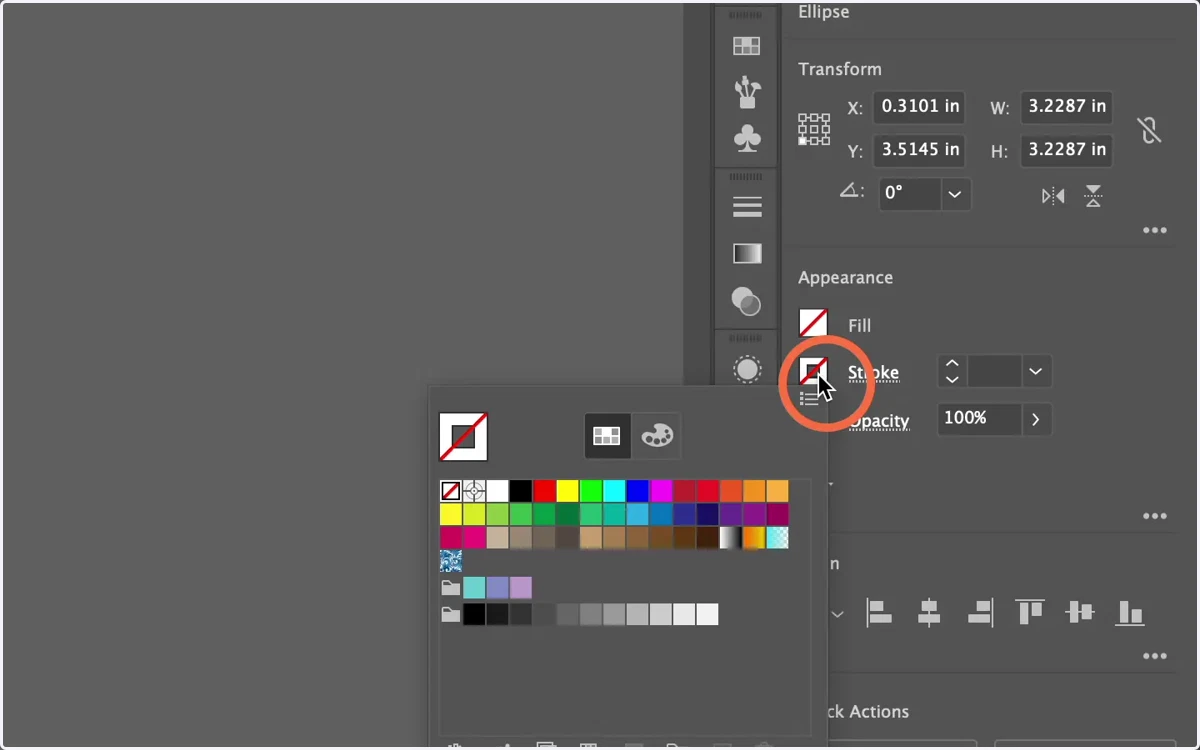

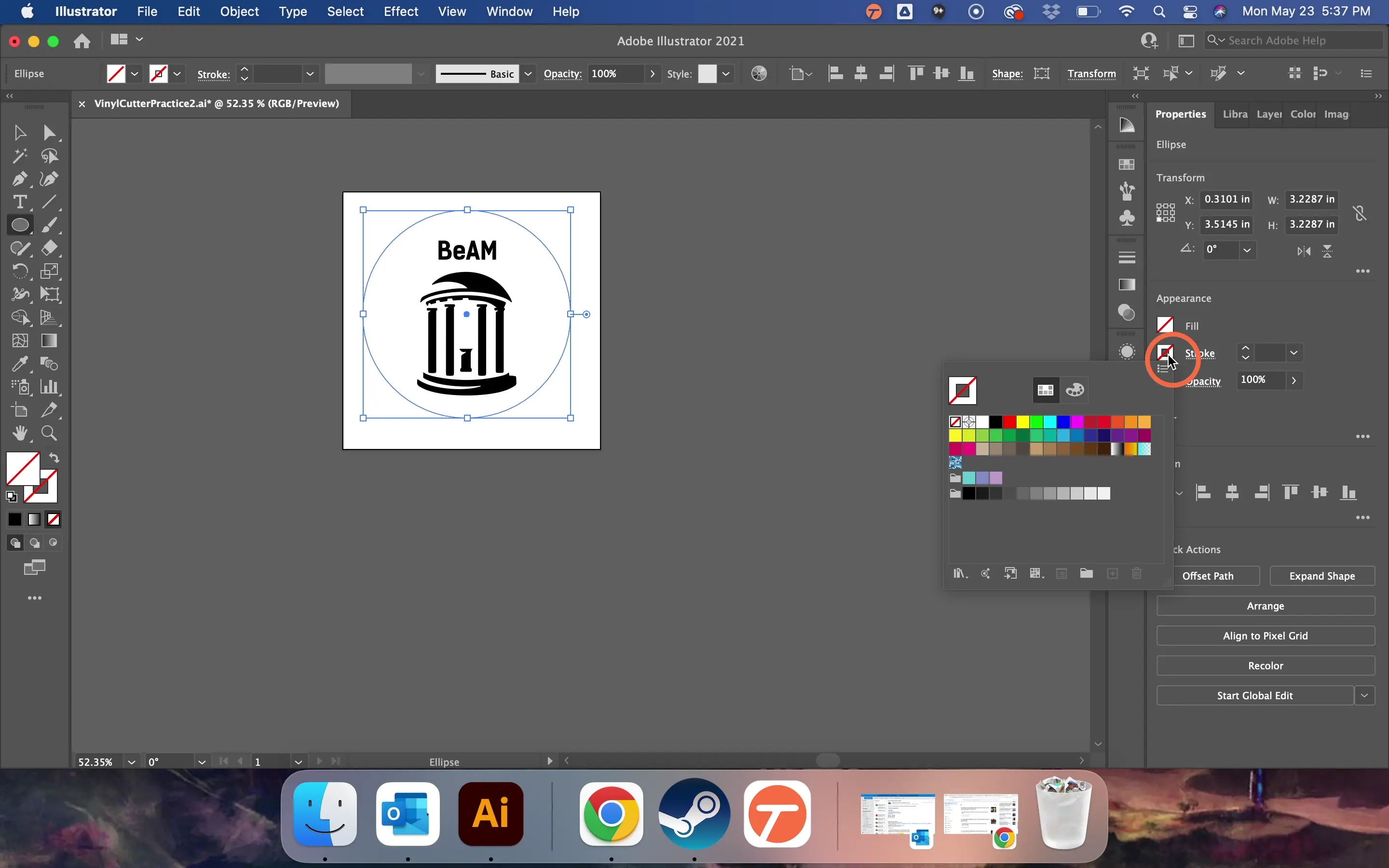

Give your shape an outline by selecting 'Black' from the Stroke menu

Give your shape an outline by selecting 'Black' from the Stroke menu
23

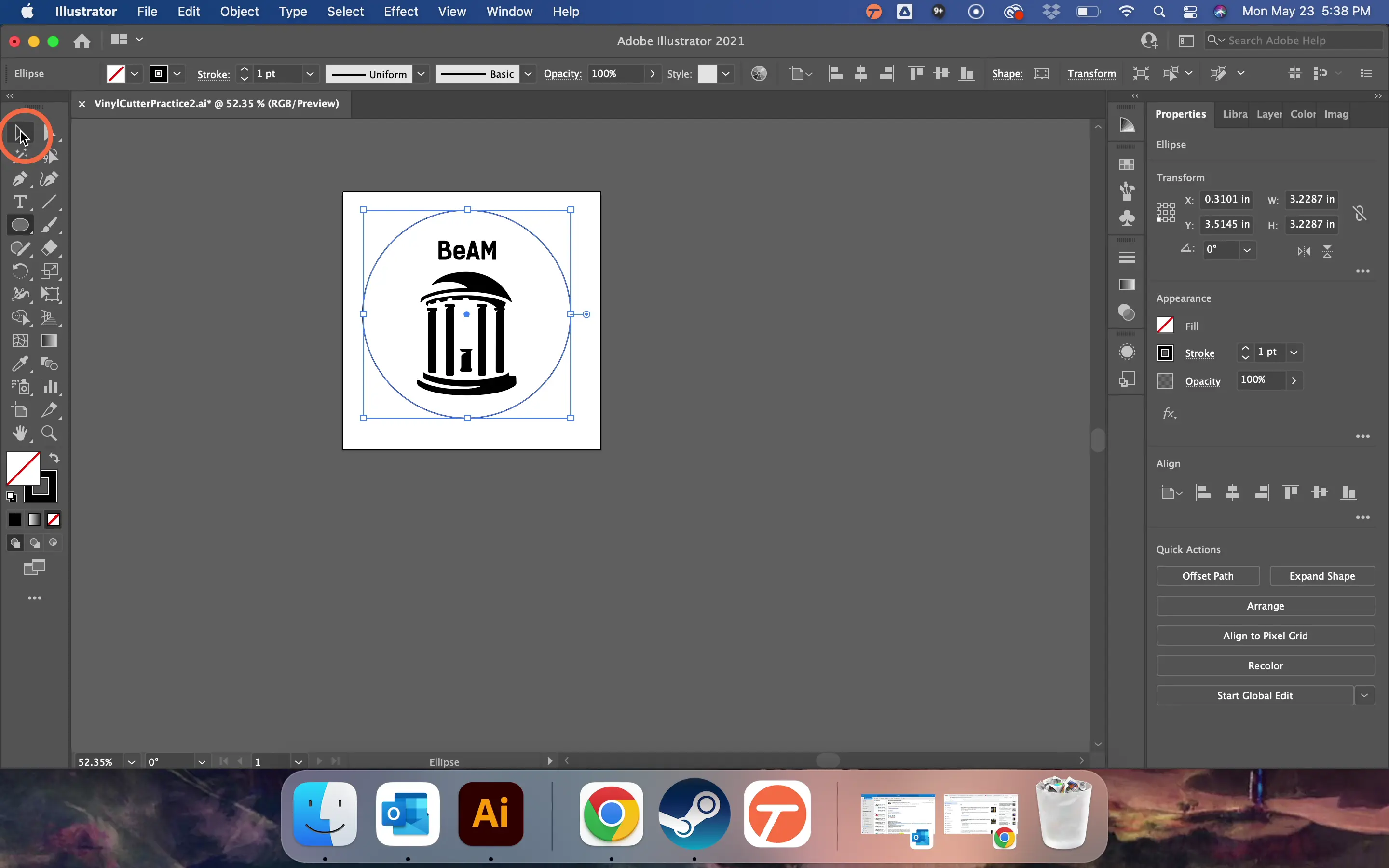

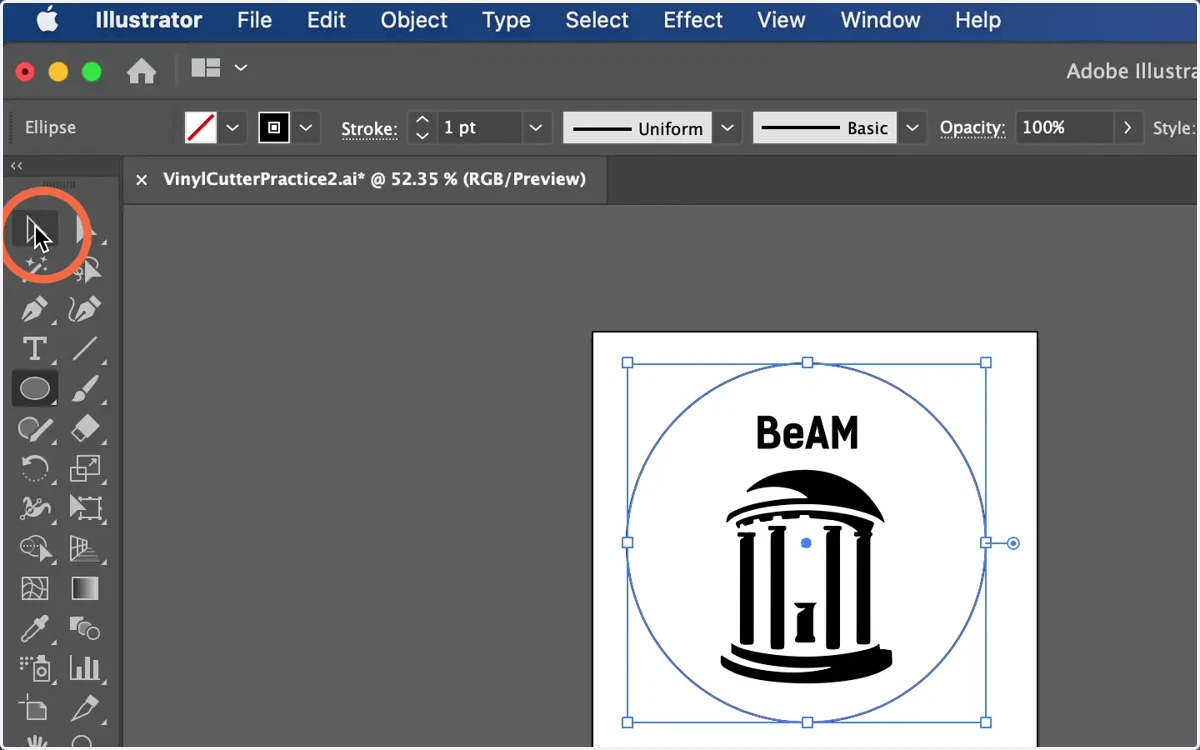

Use the black arrow 'Selection' tool to move your shape around the canvas

Use the black arrow 'Selection' tool to move your shape around the canvas
24

25

Well done!
