Configuring and Extension on a Yealink Desk Phone

How to configure an extension on a Yealink Desk Phone

8
    1

Yealink Desk Phone

18 Steps
1

Navigate to the Yealink Desk Phone IP address in your web browser

2

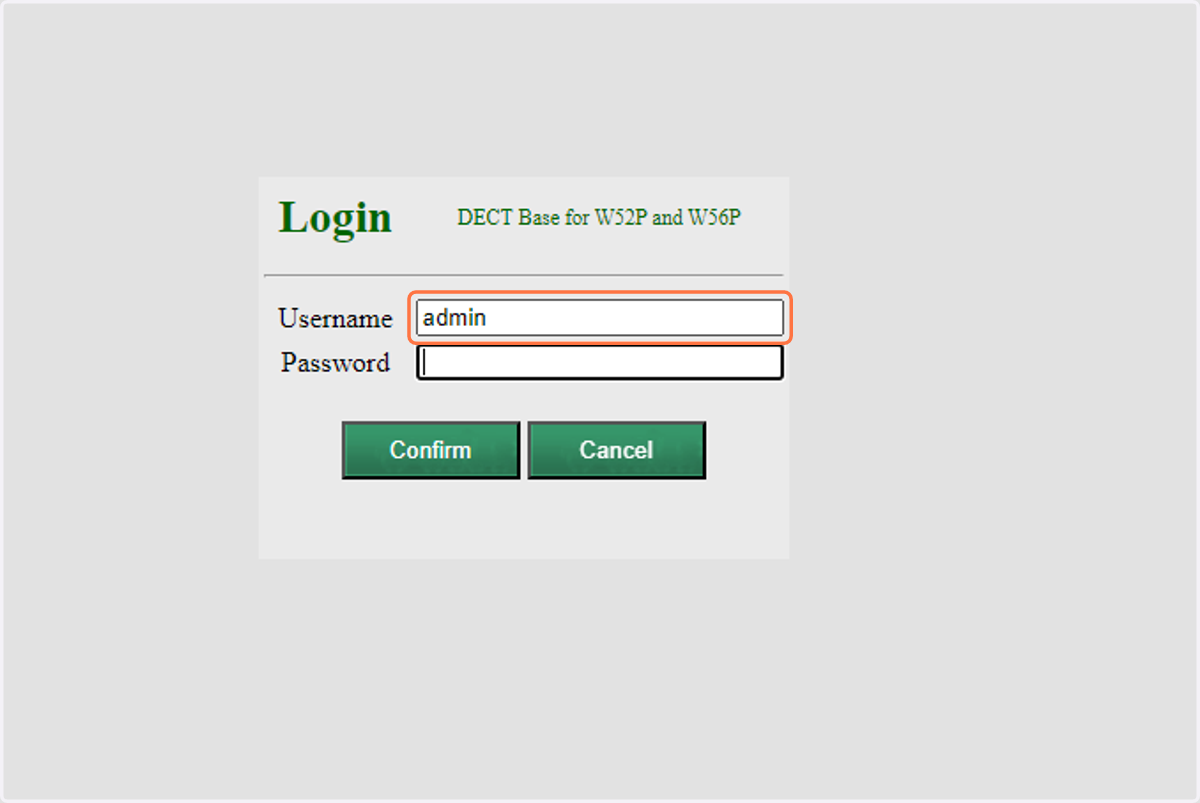

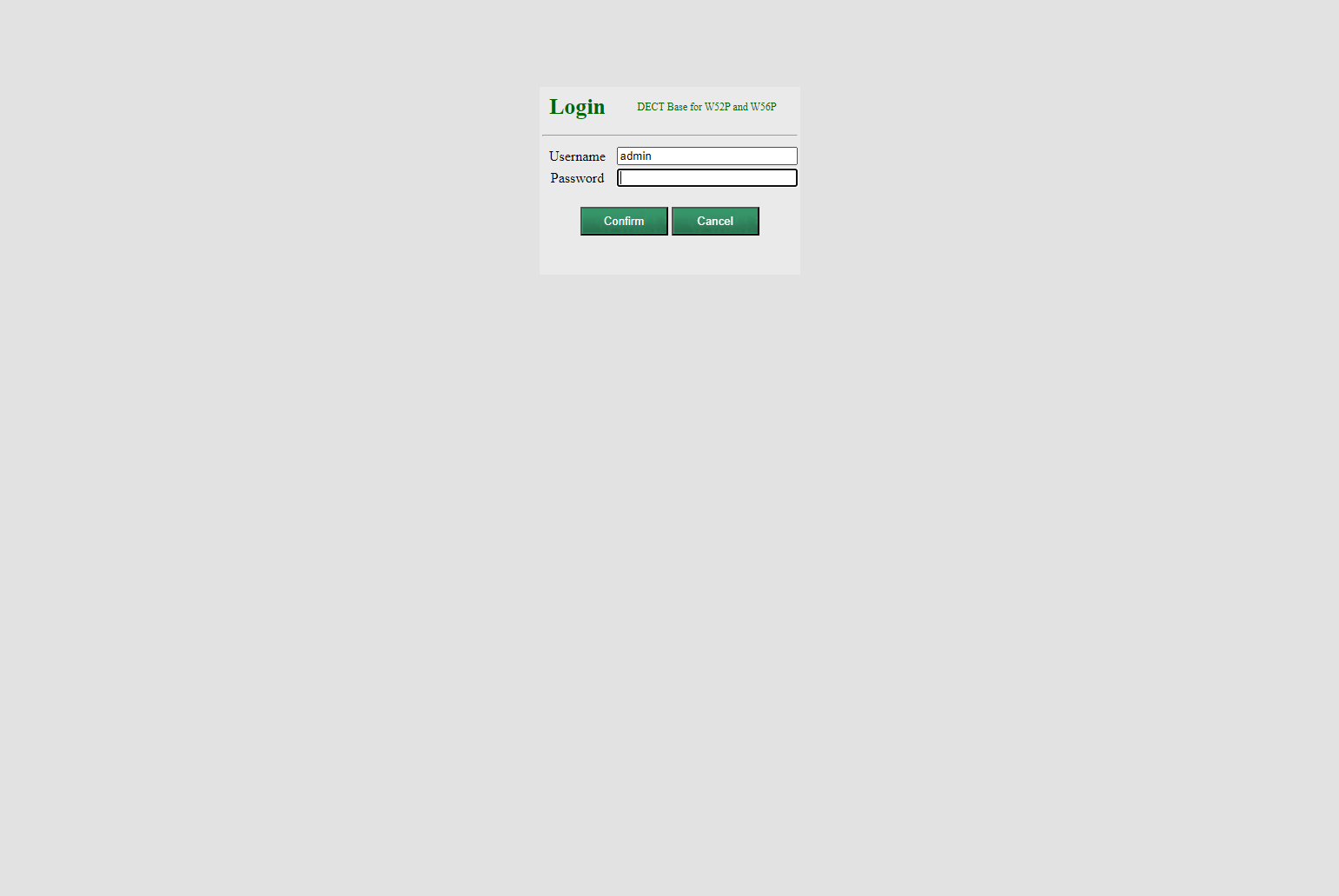

From the Yealink Login screen, enter the username

Default is admin

From the Yealink Login screen, enter the username
3

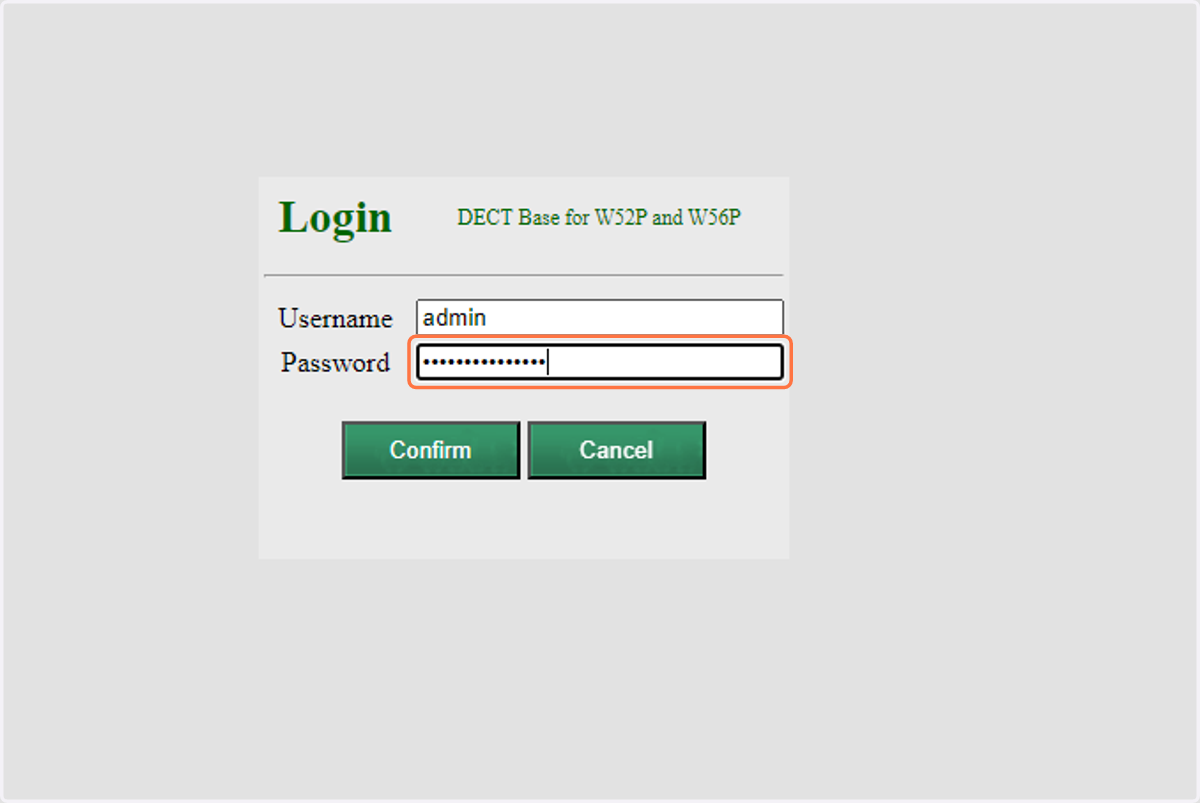

Enter the password

Default is admin

Enter the password
4

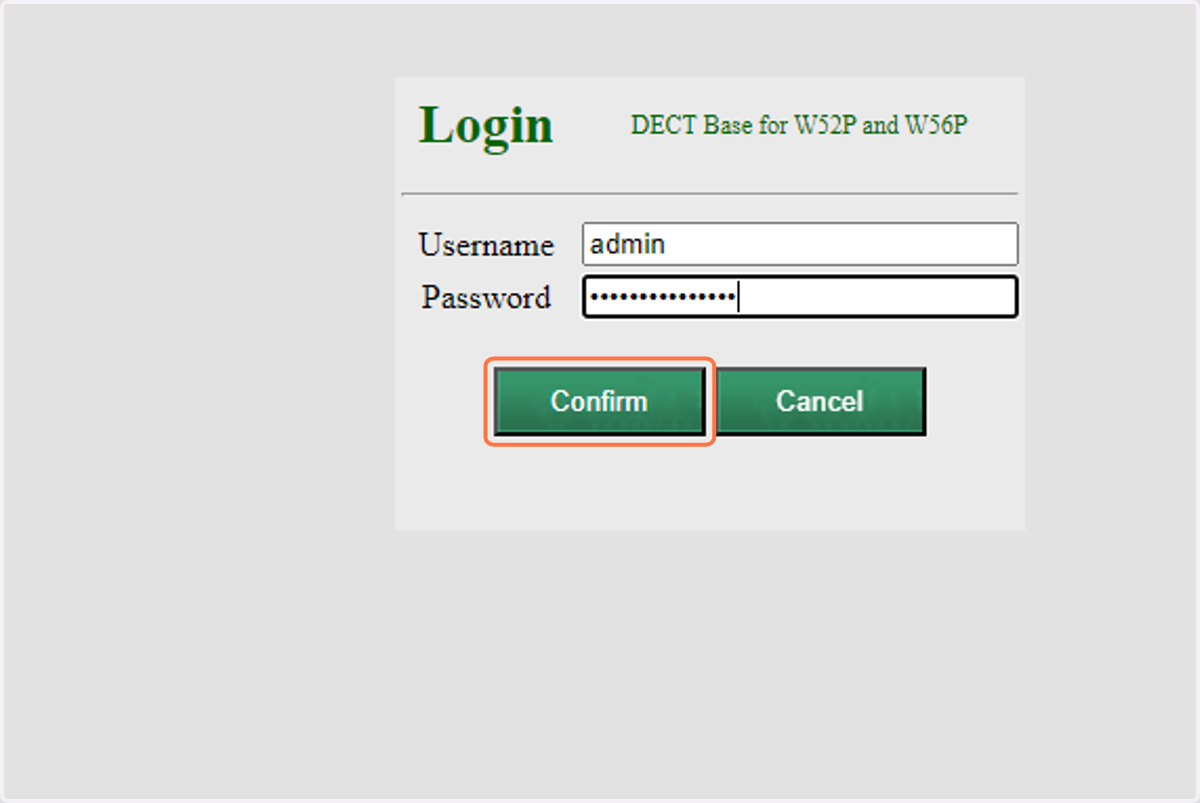

Click on Confirm

Click on Confirm
5

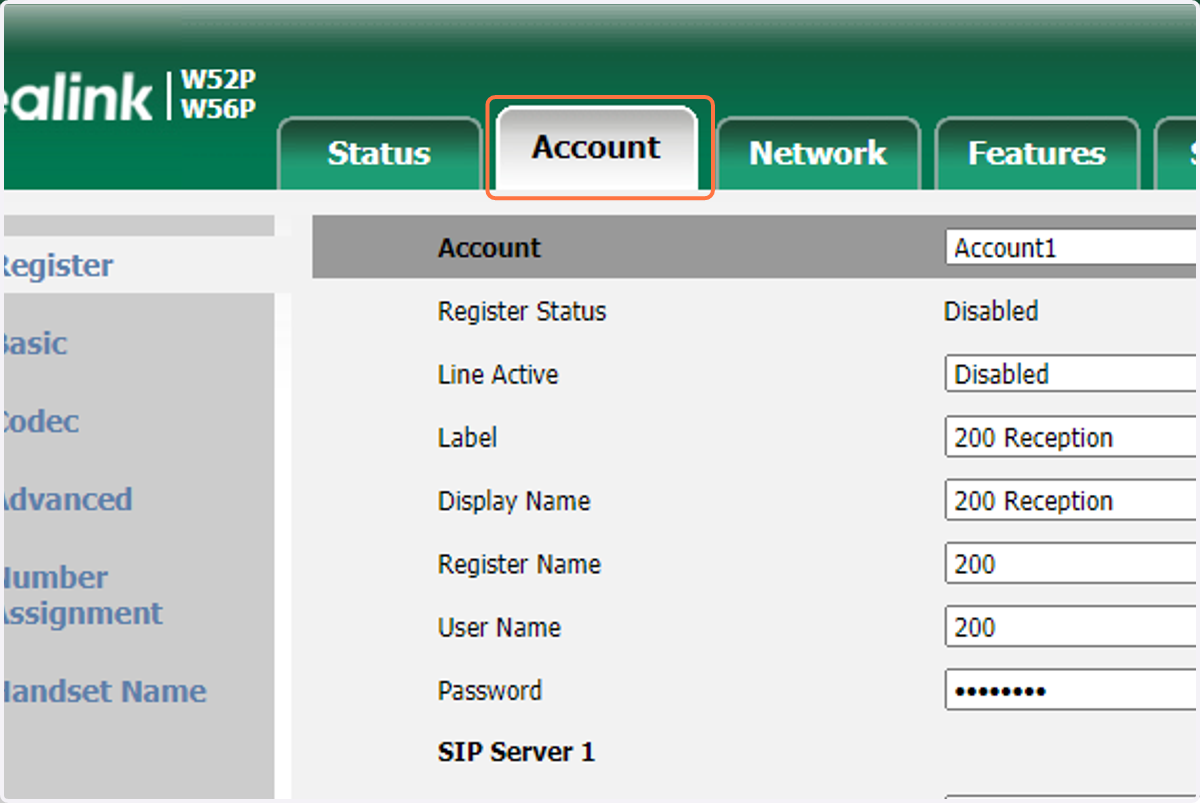

Click on the Account tab

Click on the Account tab
6

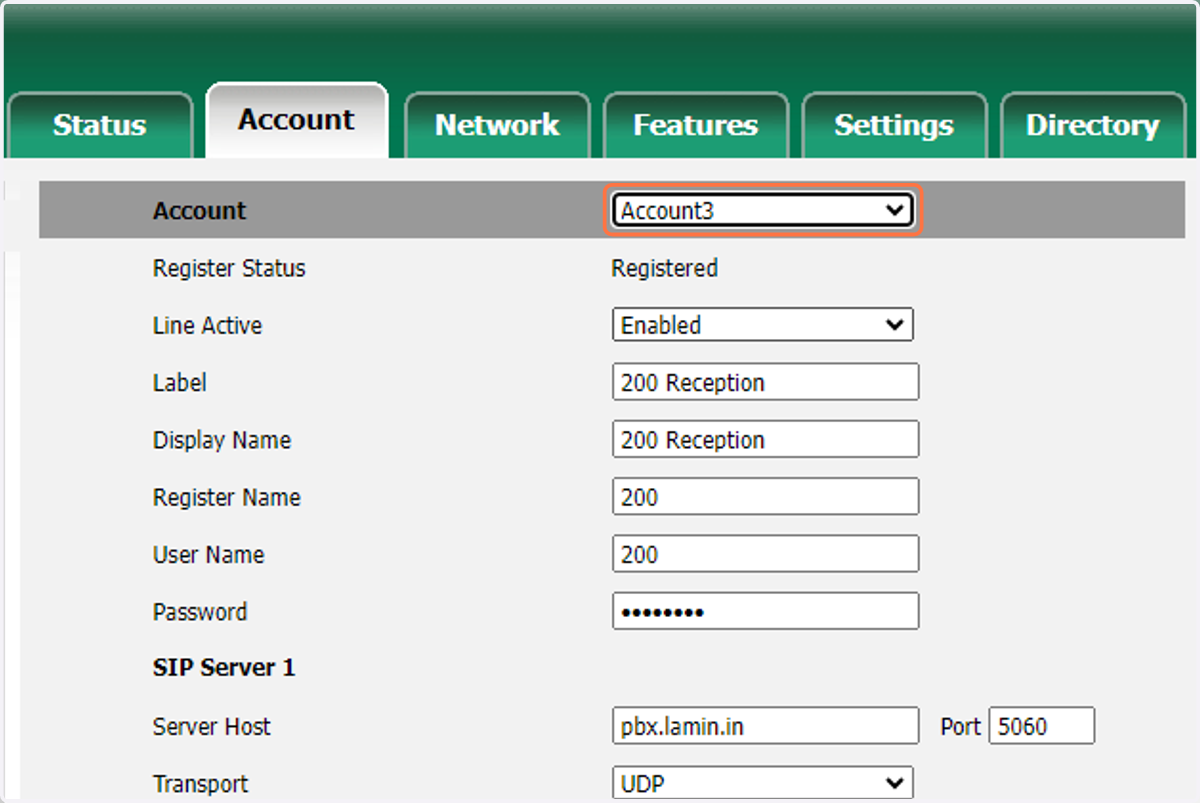

Select the account that you want to configure from the dropdown menu

Select the account that you want to configure from the dropdown menu
7

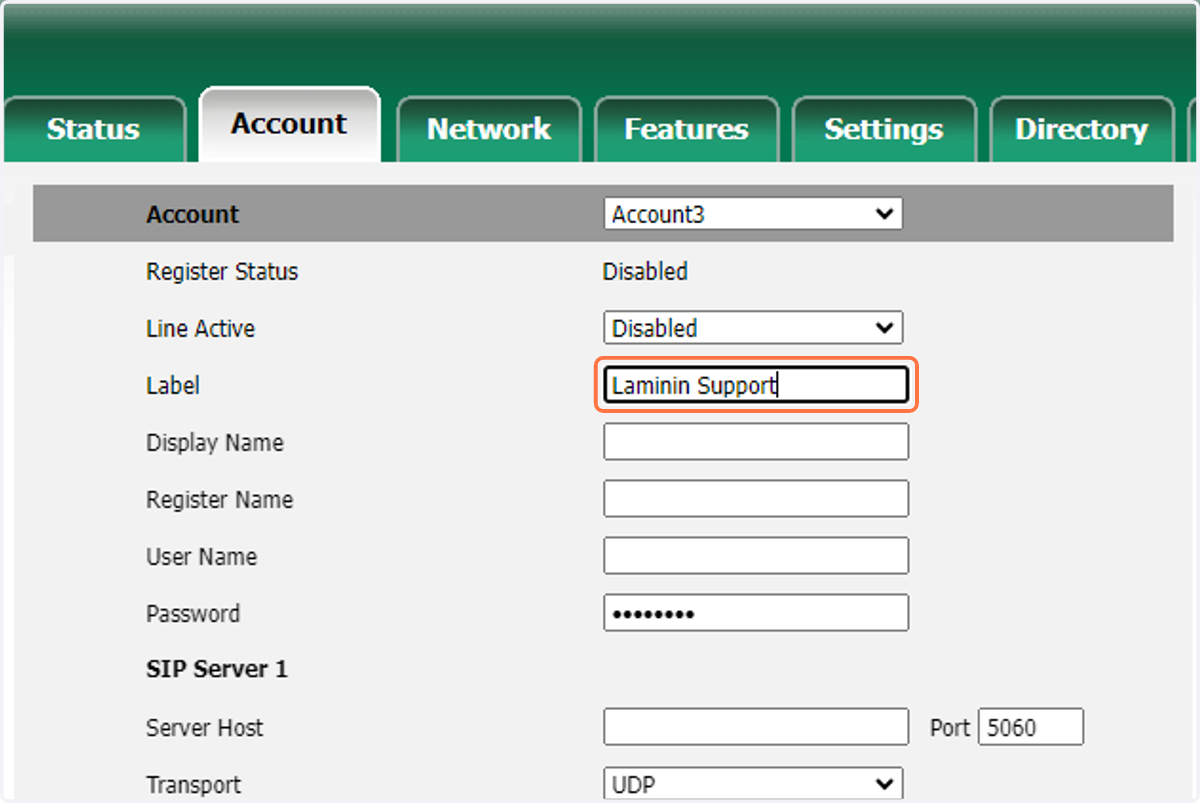

Enter the Label for this account

This name is to easily identify the account

Enter the Label for this account
8

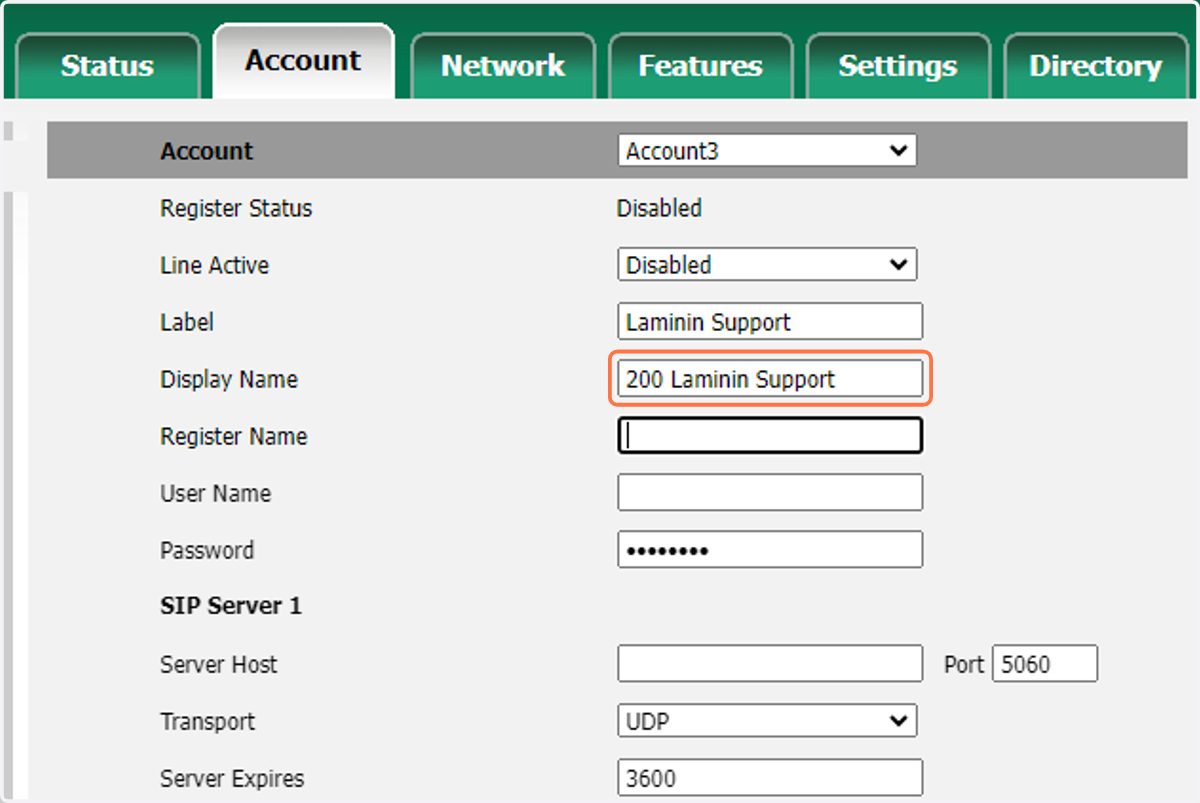

Enter the Display Name

This name will display on the phone

Enter the Display Name
9

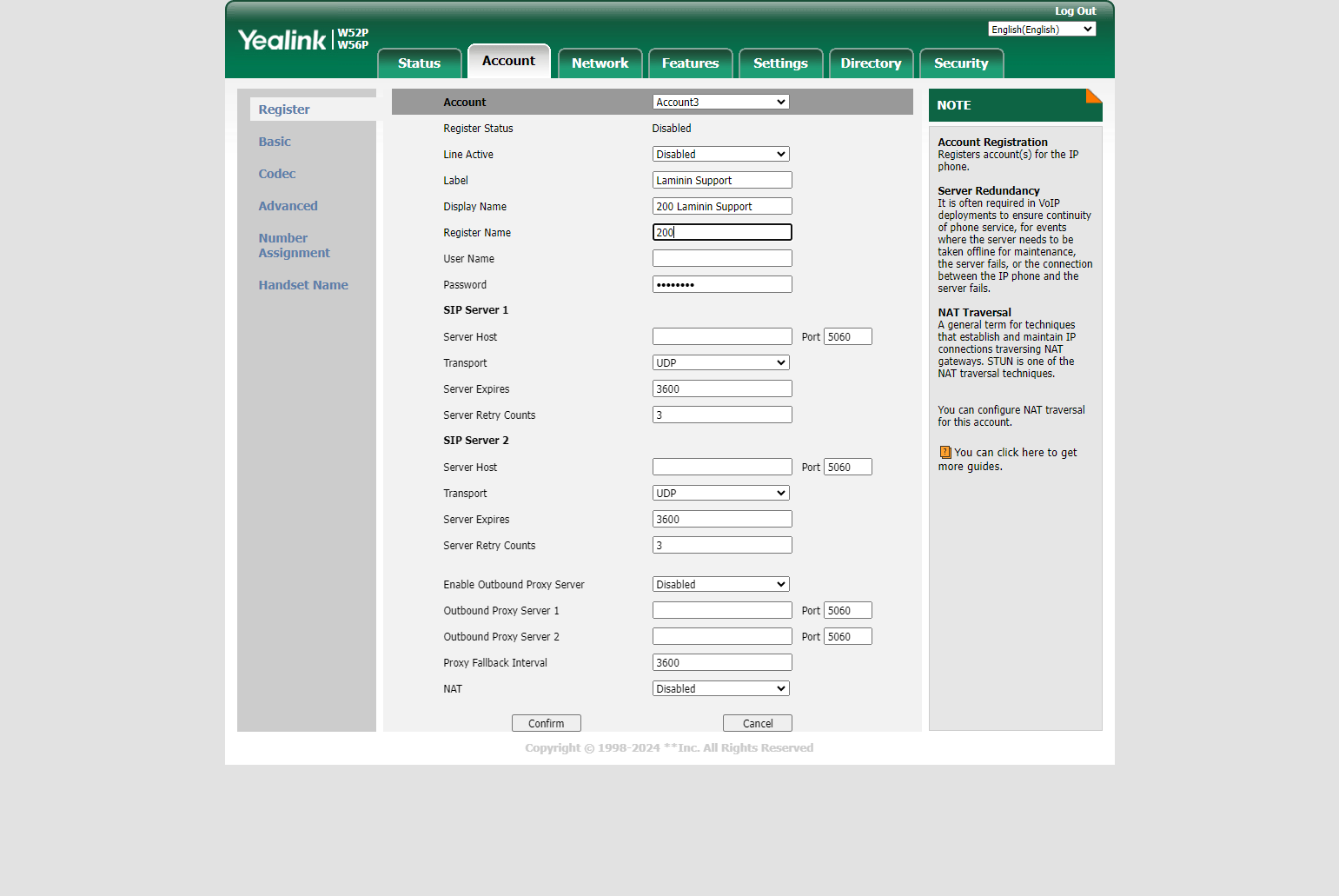

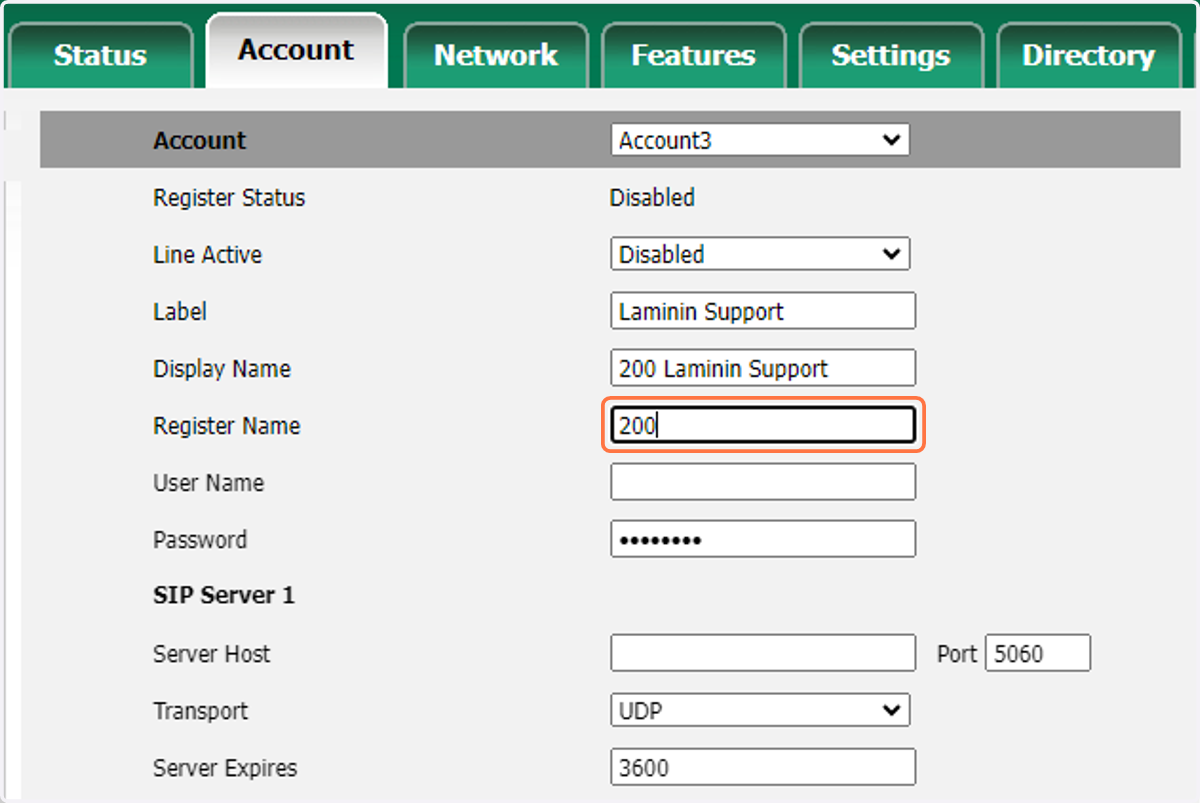

Enter the Extension Register Name

You can get this information from the Extension User Device in VitalPBX

Enter the Extension Register Name
10

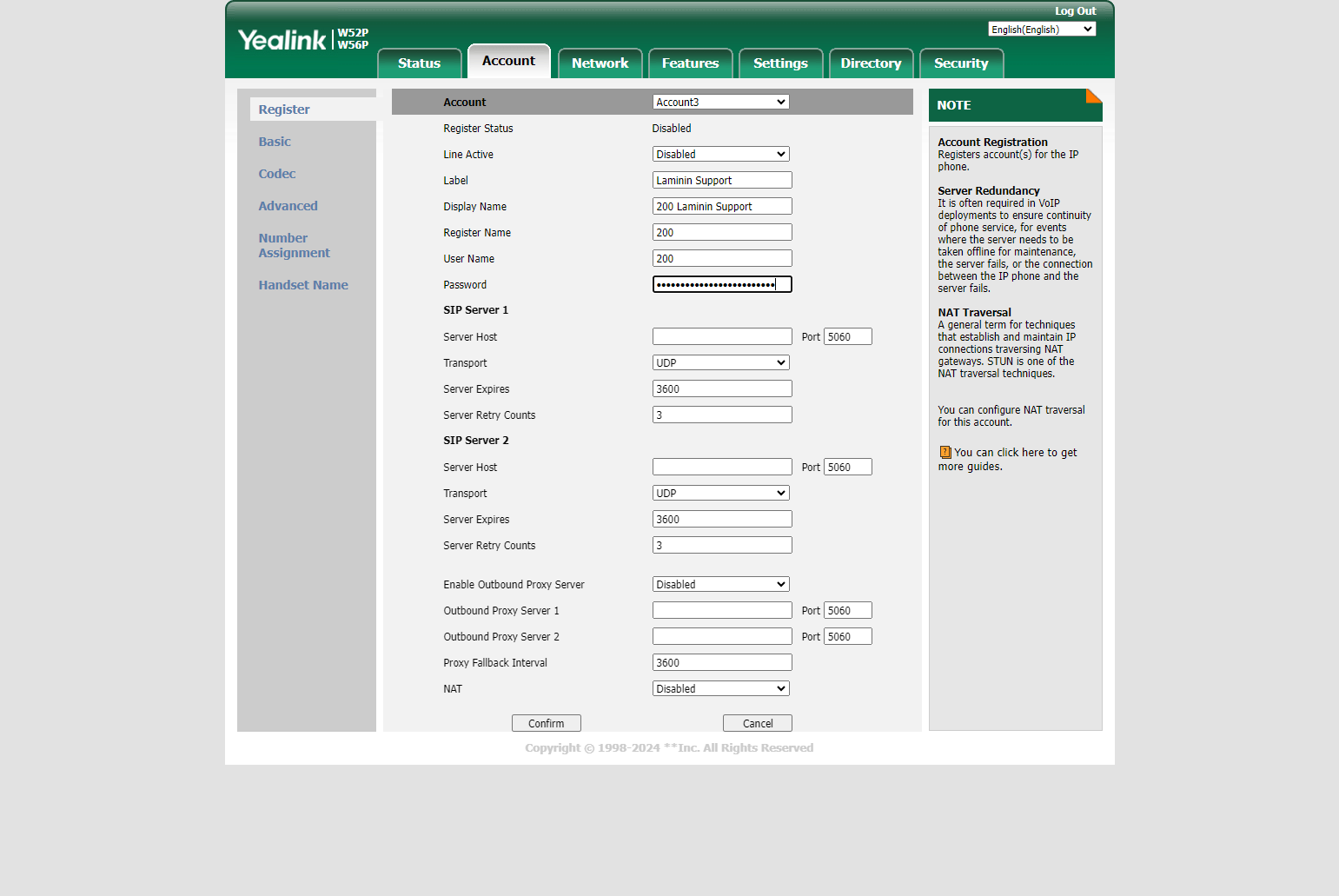

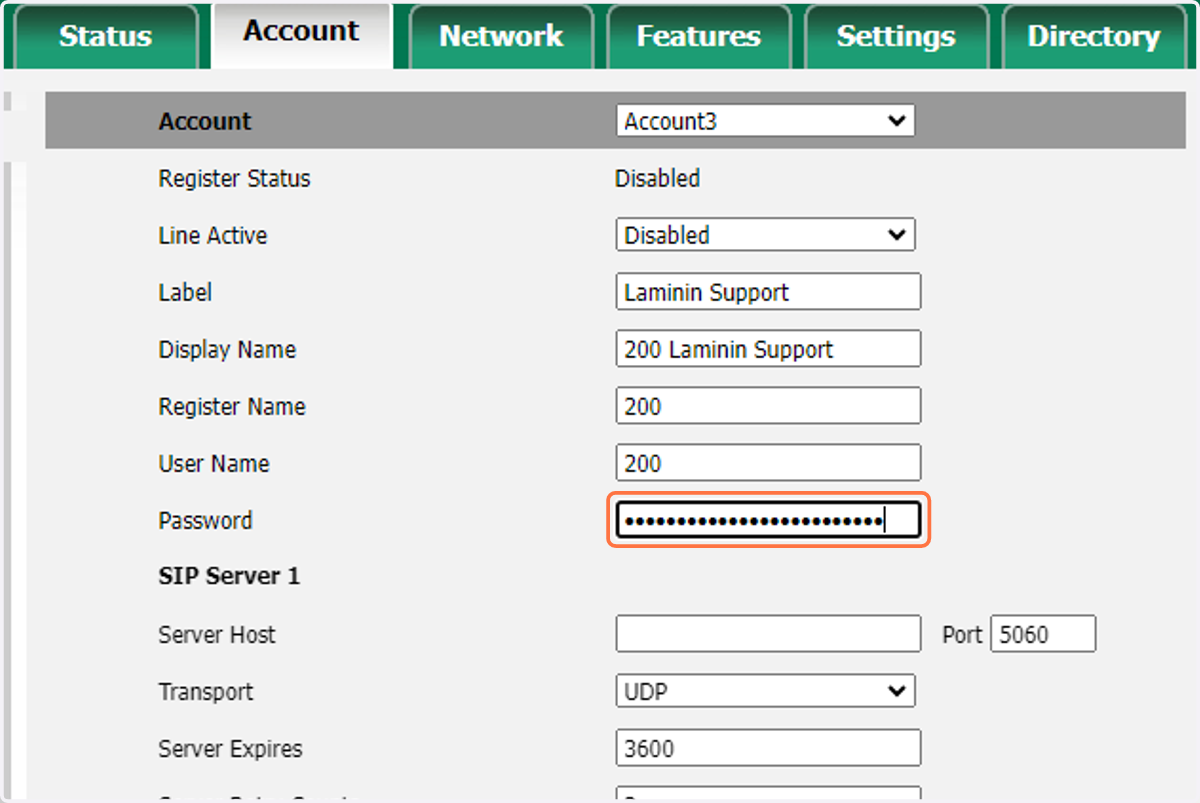

Enter the Extension Password

You can get this information from the Extension Password in VitalPBX

Enter the Extension Password
11

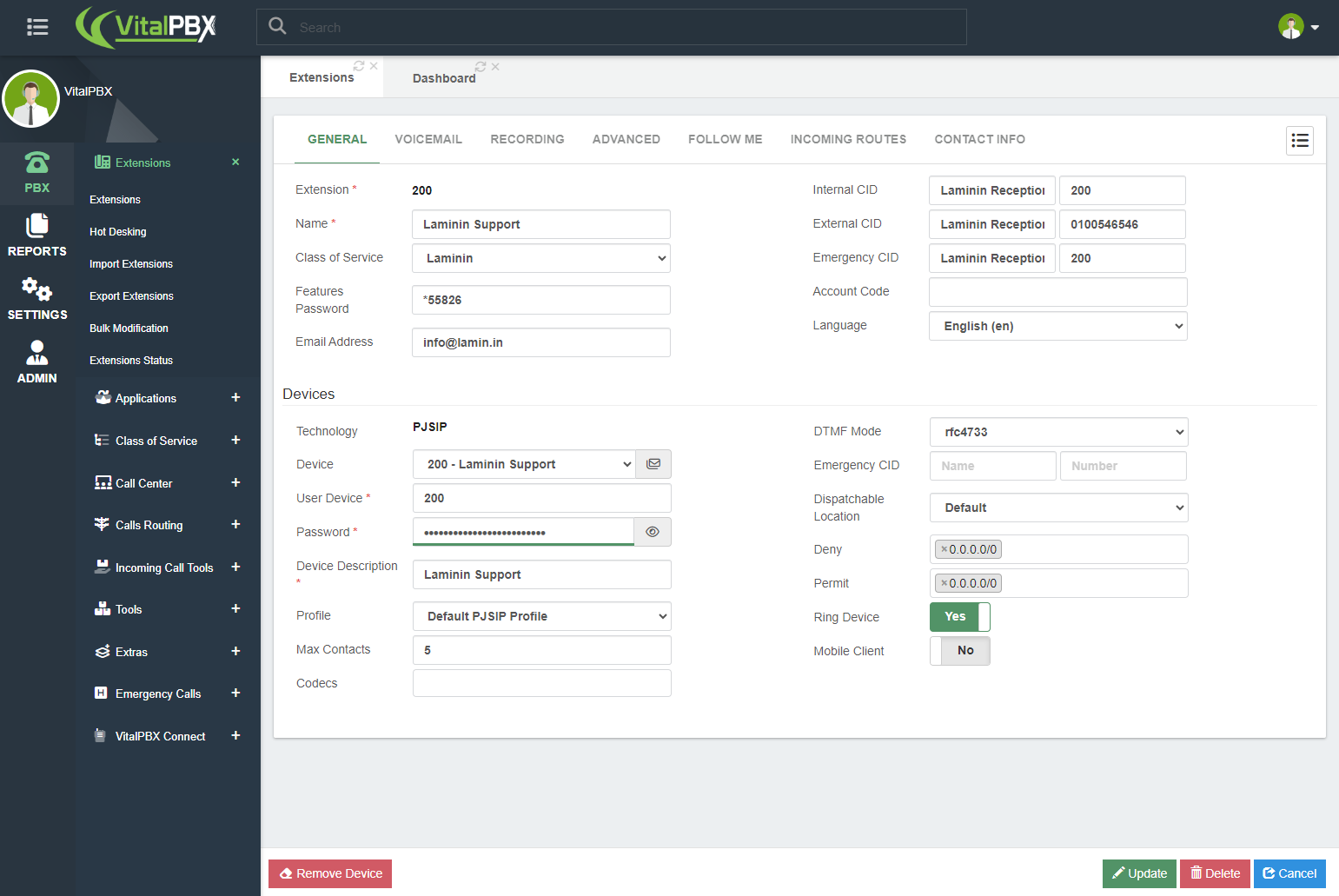

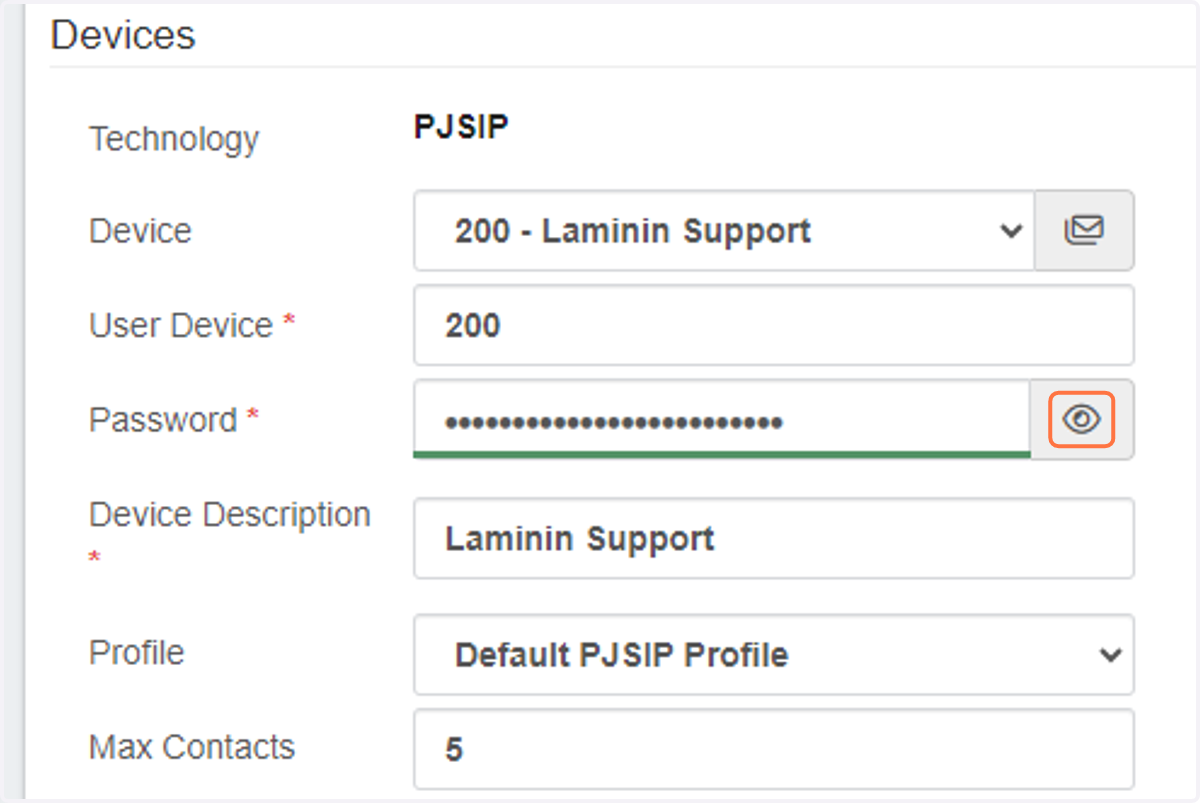

In VitalPBX you can view the User Device and Password for the extension you want to configure on the Yealink Desk Phone

In VitalPBX you can view the User Device and Password for the extension you want to configure on the Yealink Desk Phone
12

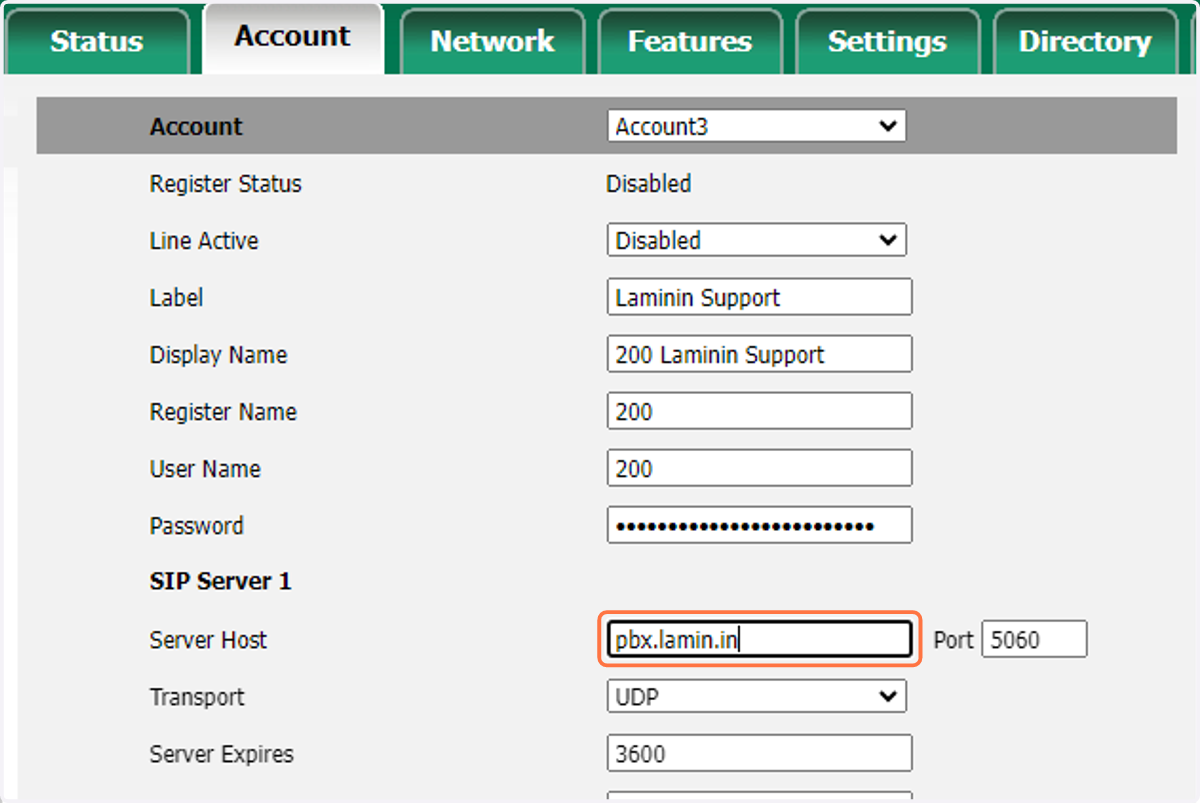

Enter the PBX URL

Enter the PBX URL
13

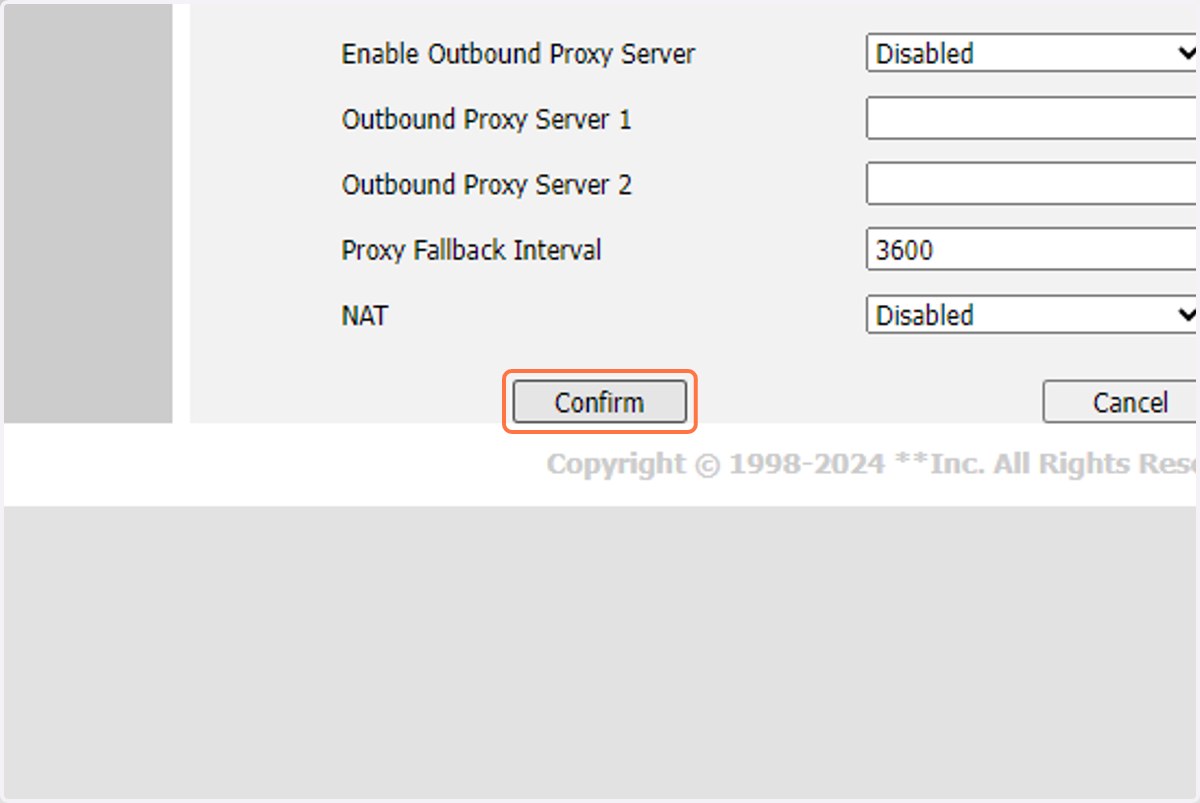

Click on Confirm

Click on Confirm
14

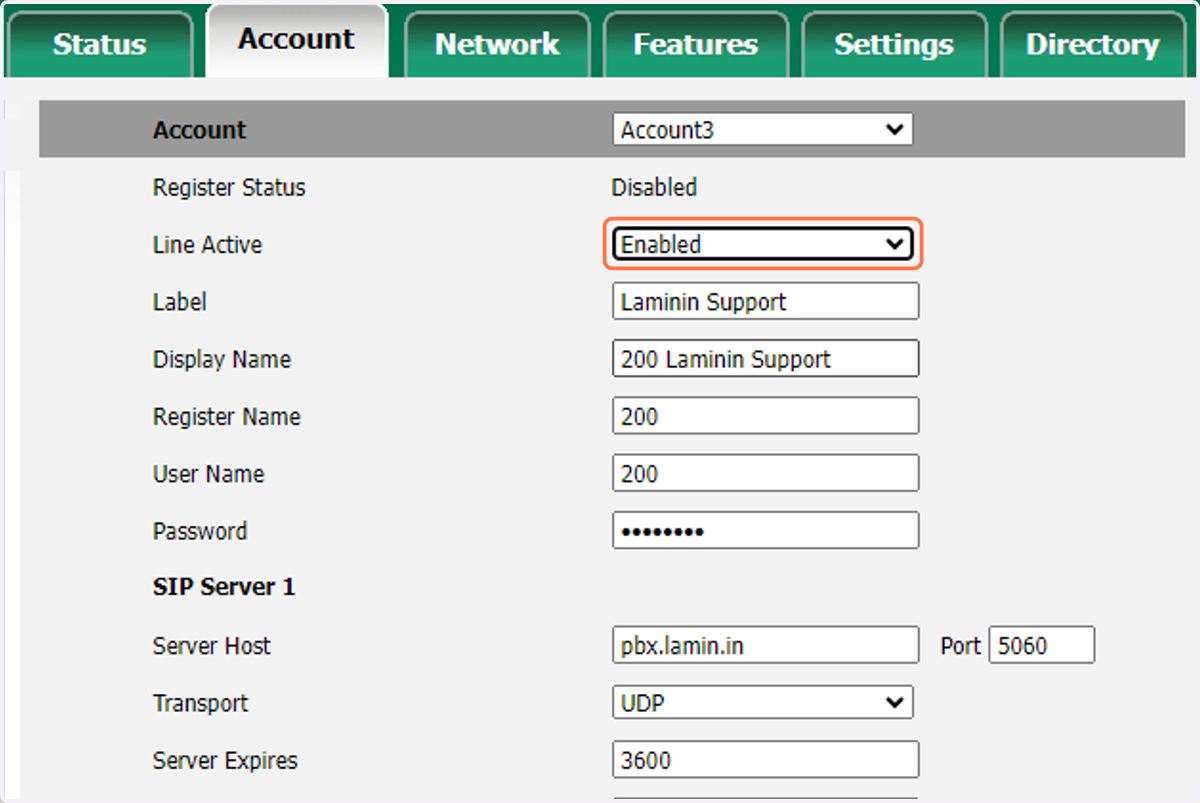

Select Enabled

Select Enabled
15

Click on Confirm

Click on Confirm
16

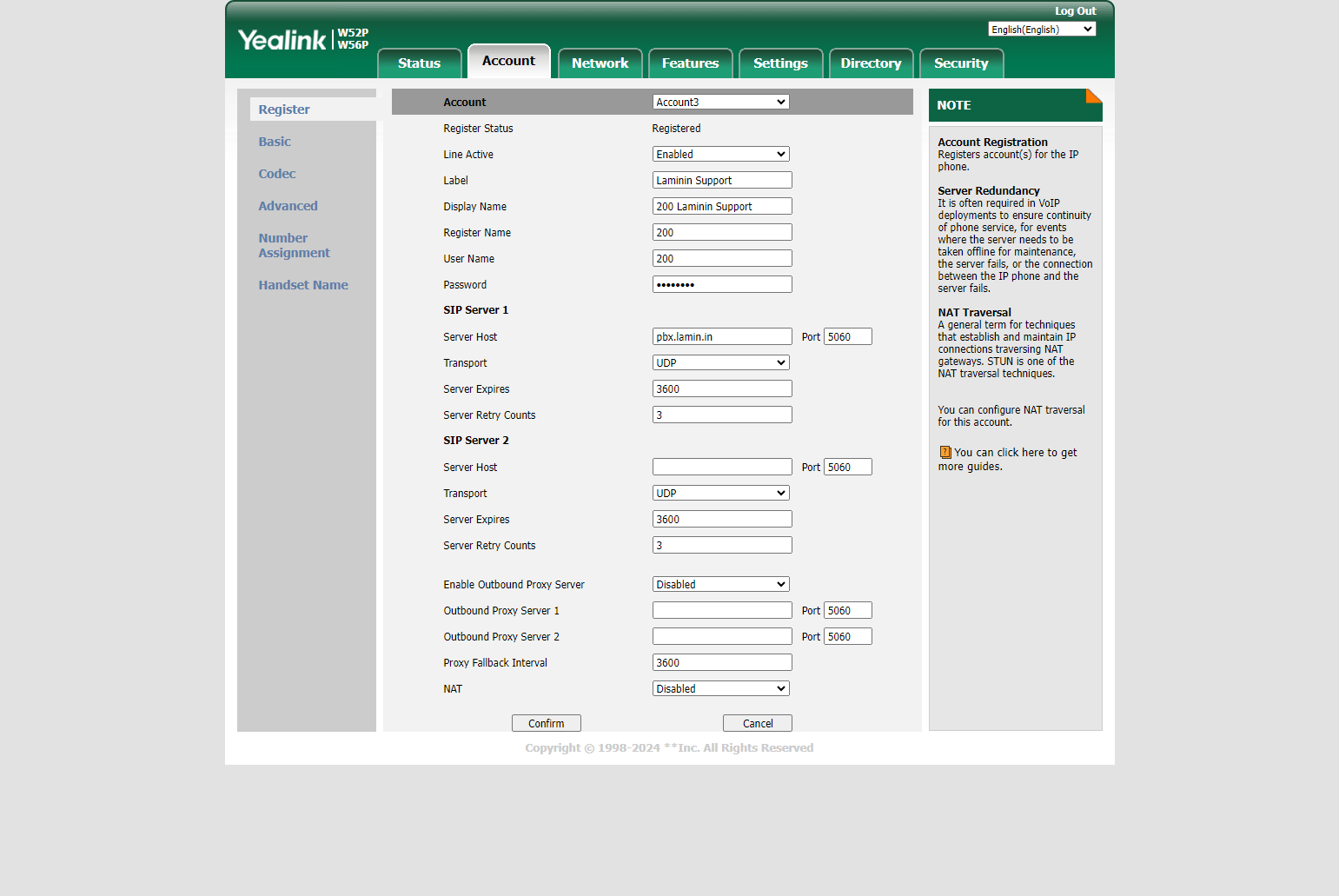

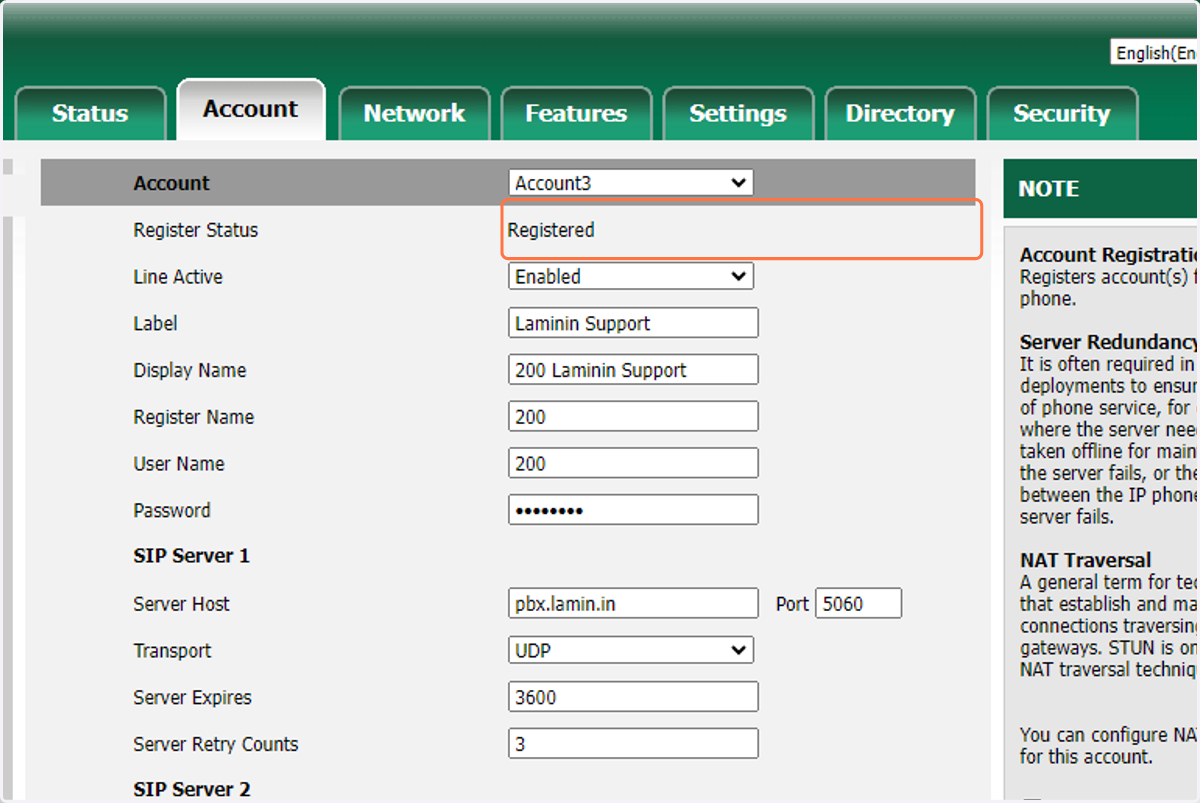

After a few seconds the Register Status should change to Registered

After a few seconds the Register Status should change to Registered
17

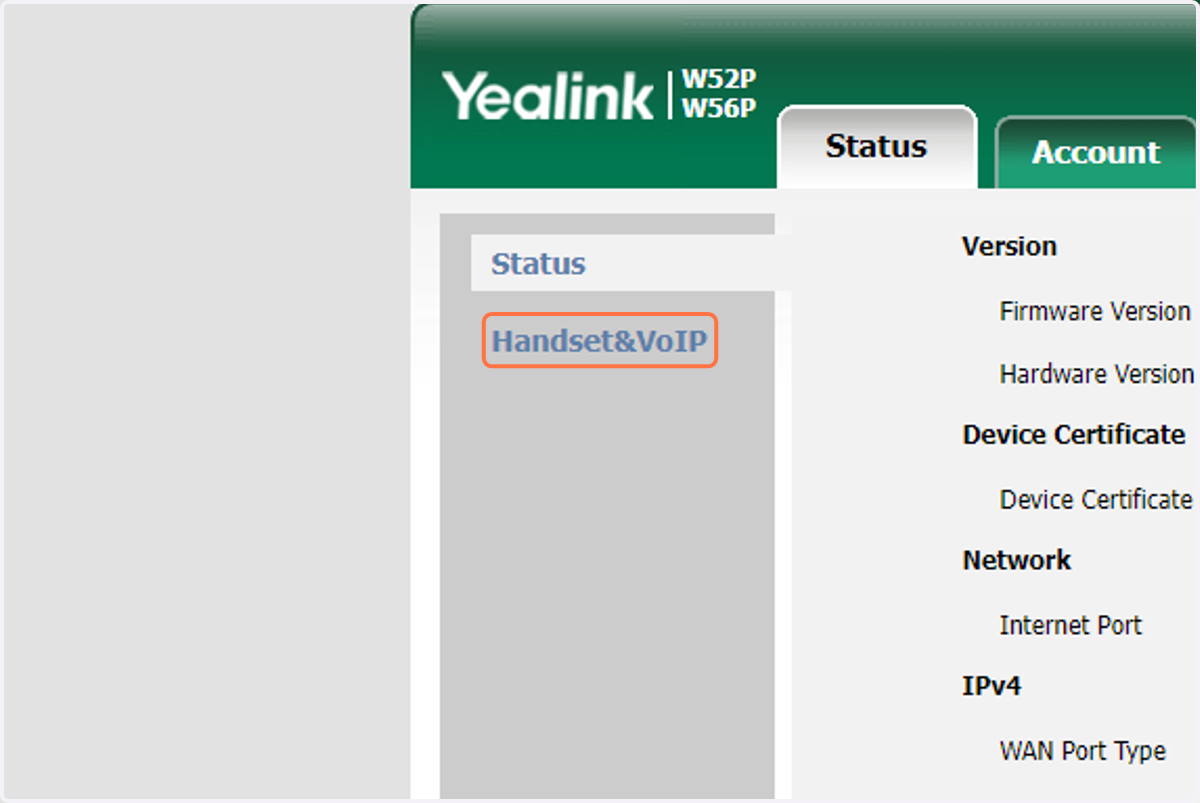

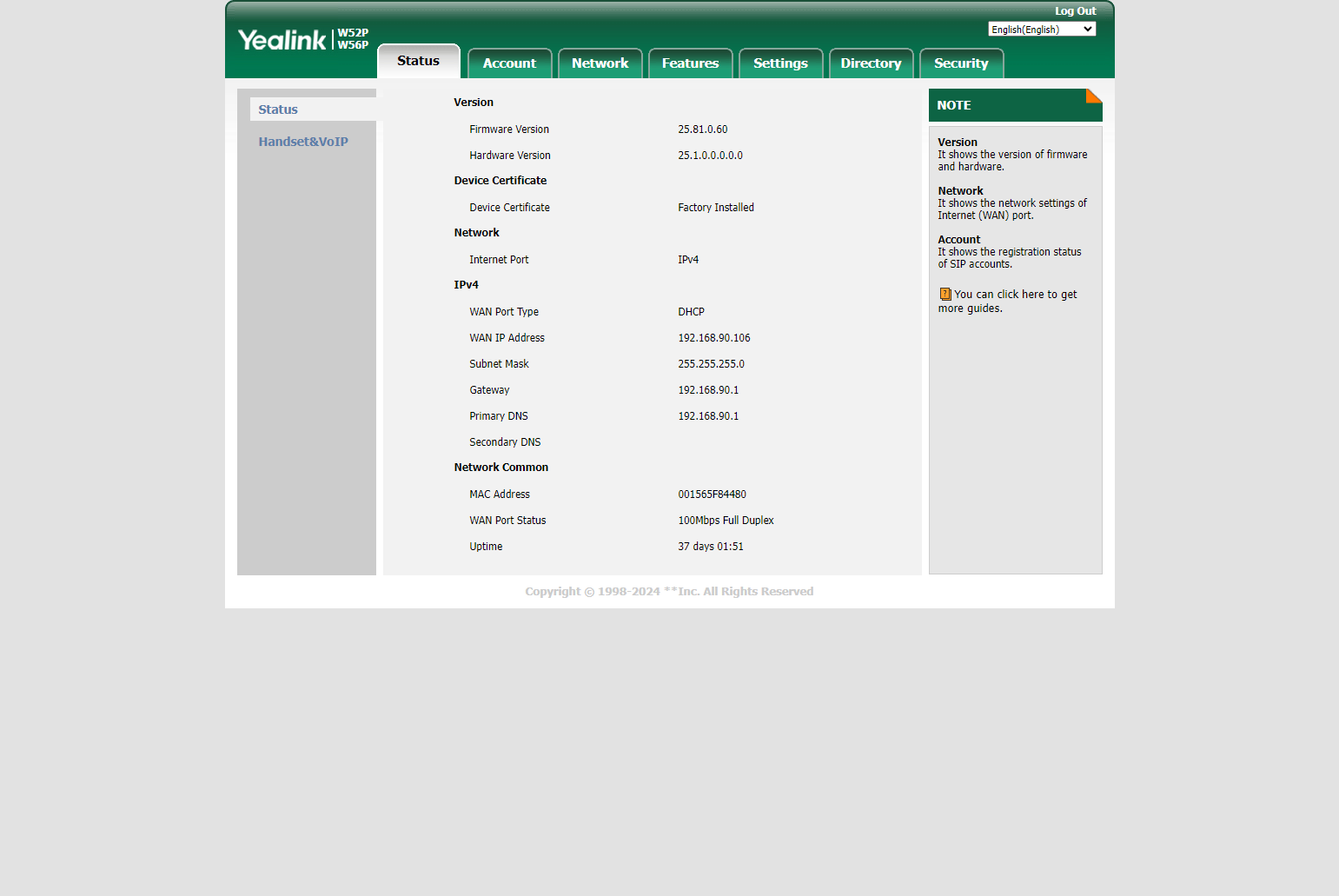

Click on the Status tab and then on Handset&VoIP

Click on the Status tab and then on Handset&VoIP
18

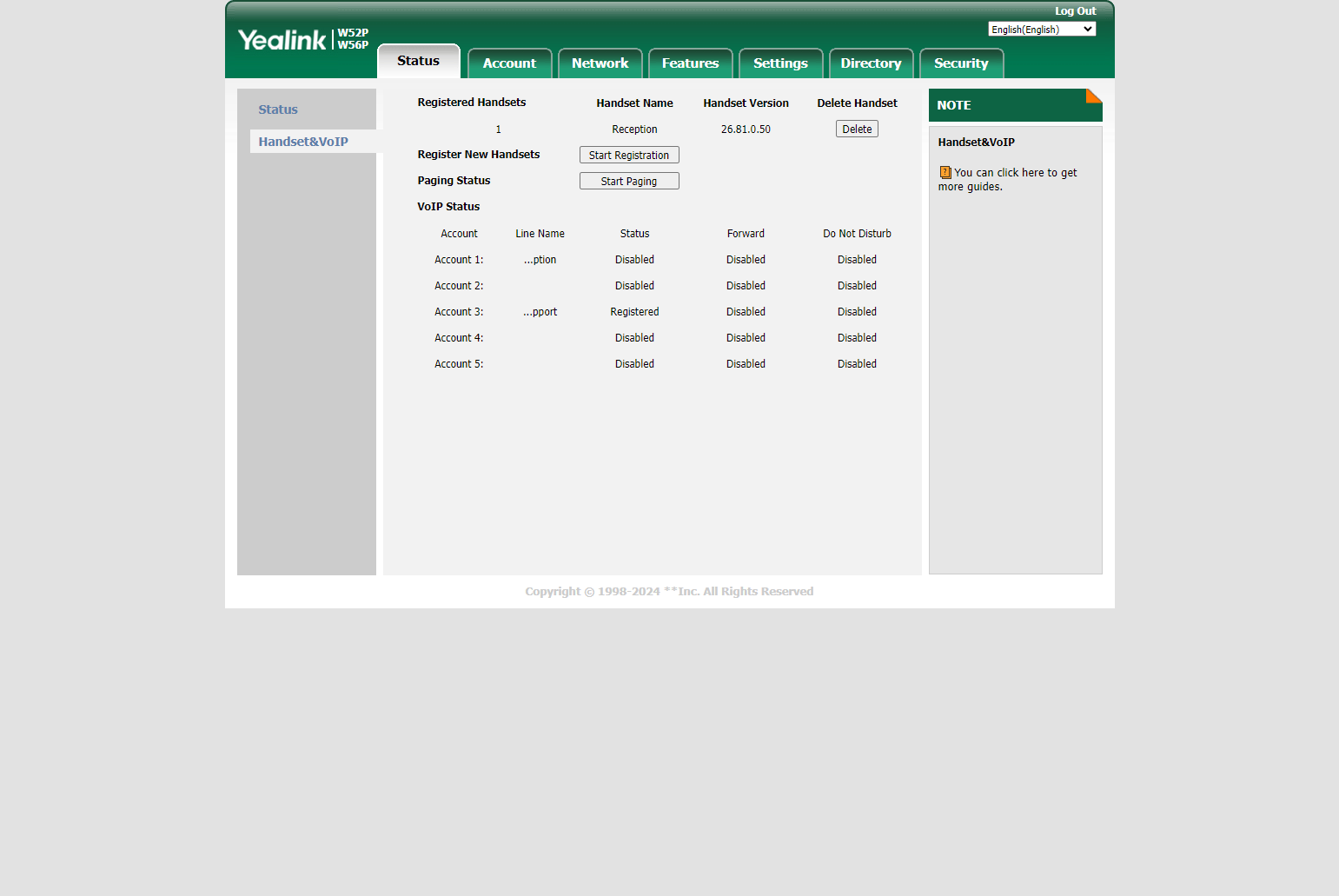

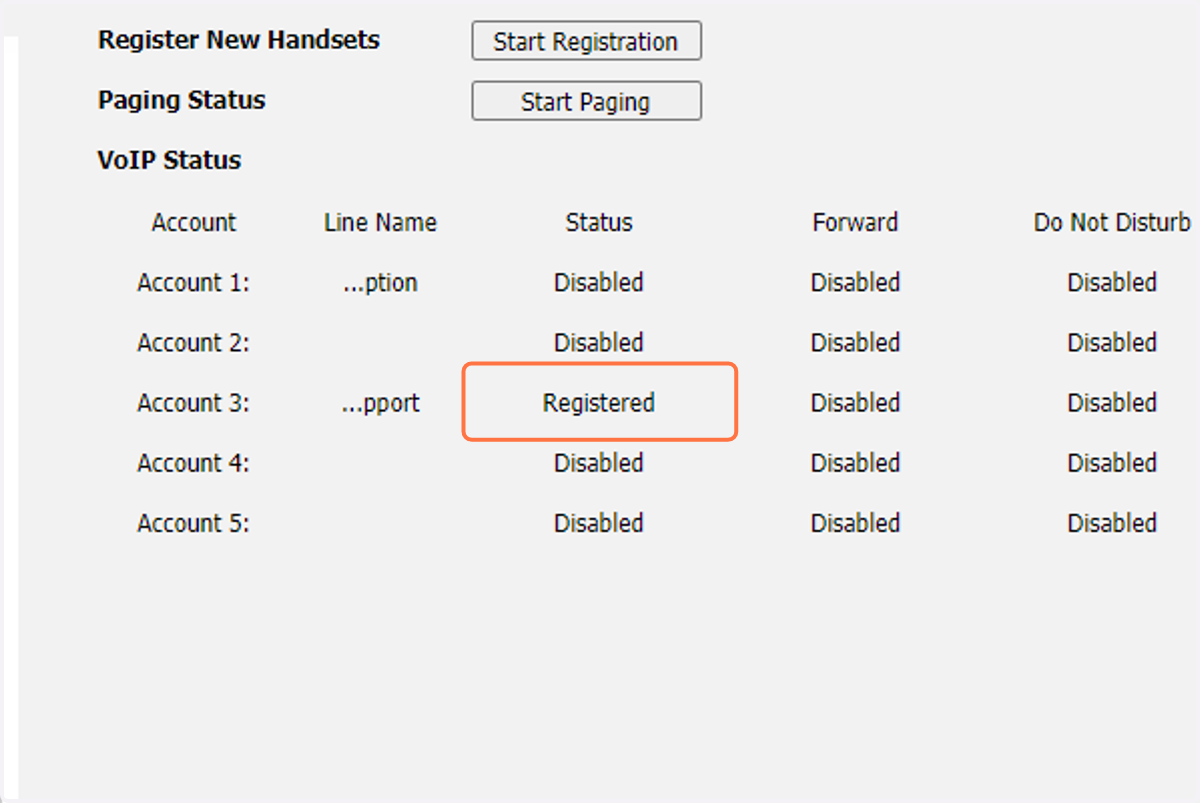

You should also see your account is Registered from this screen

You should also see your account is Registered from this screen
Well done!
