Fe-Cr Pourbaix Diagram on Materials Project

Materialsproject

1. 1. Go to Materials Project - Home

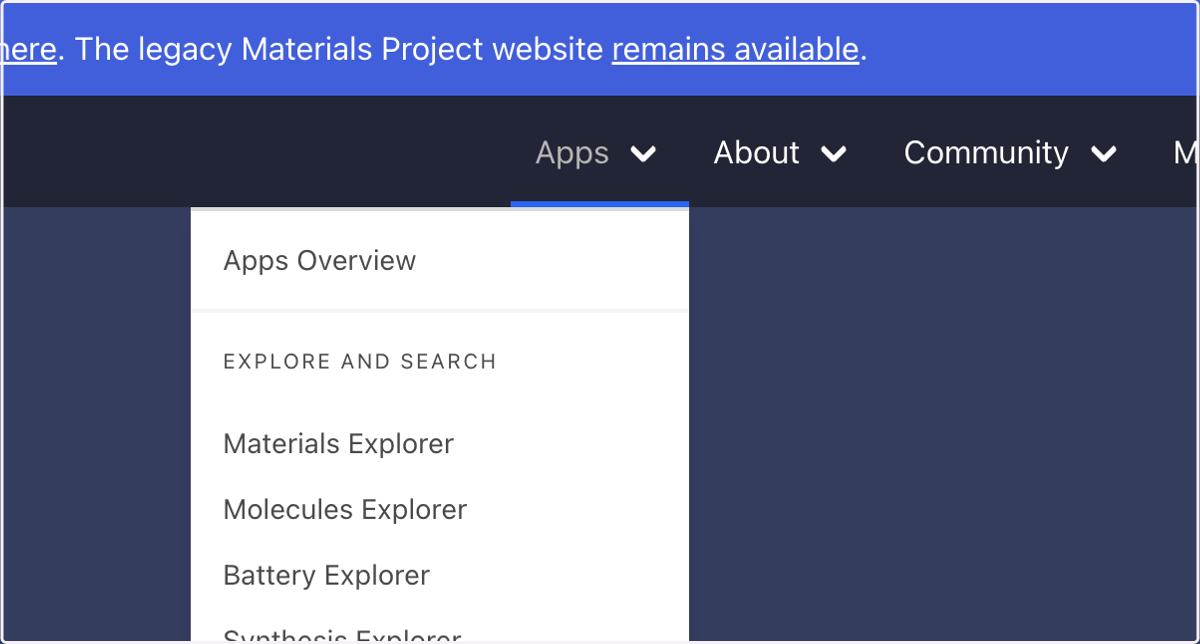

2. 2. Click on Apps

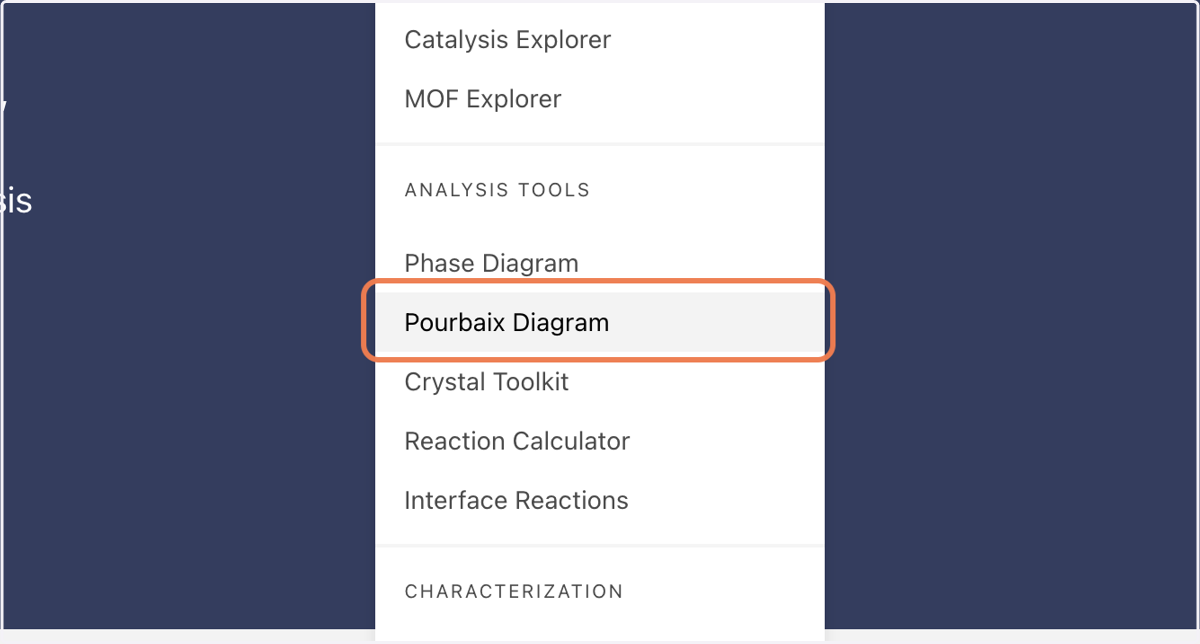

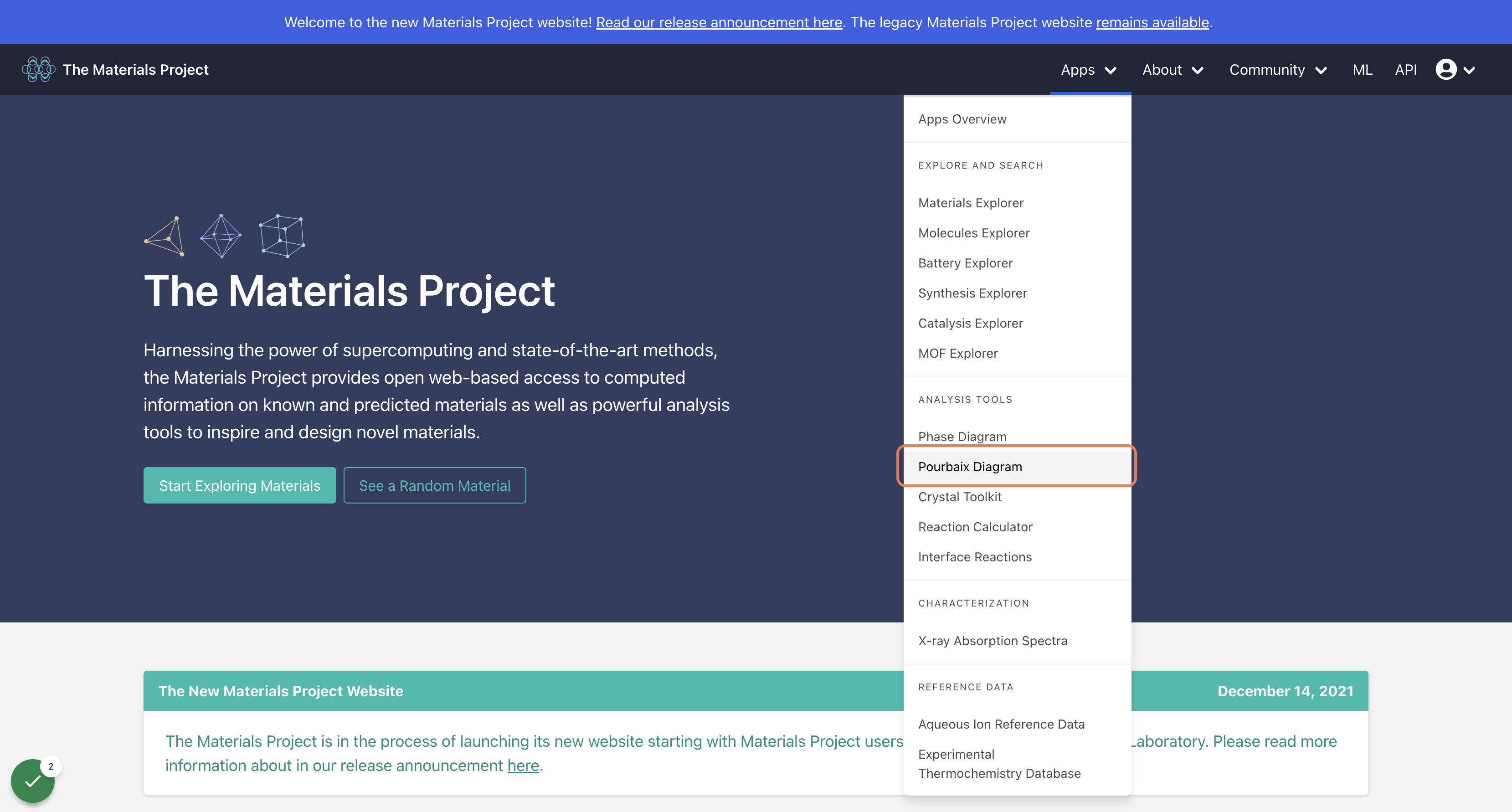

3. 3. Click on Pourbaix Diagram

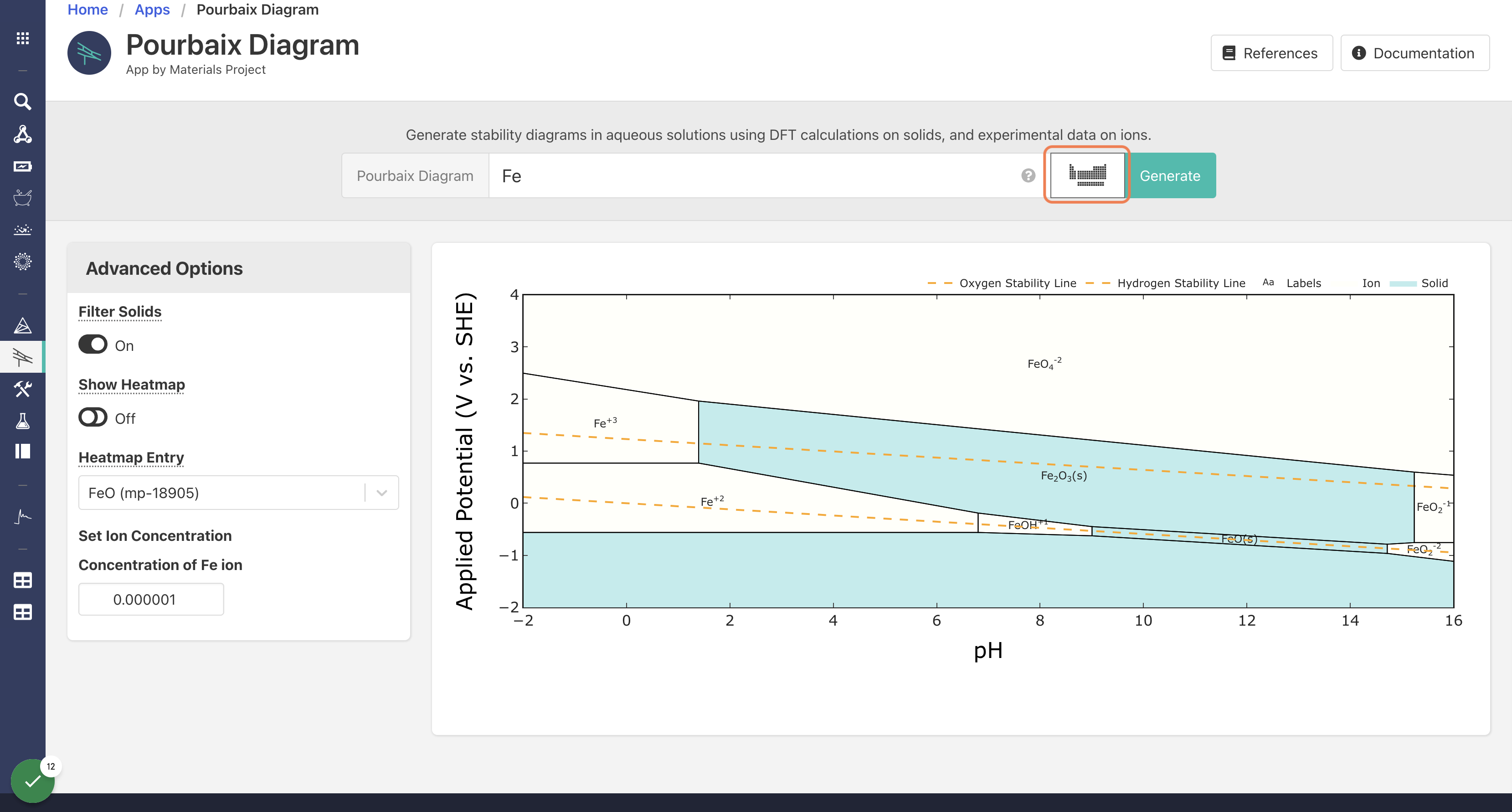

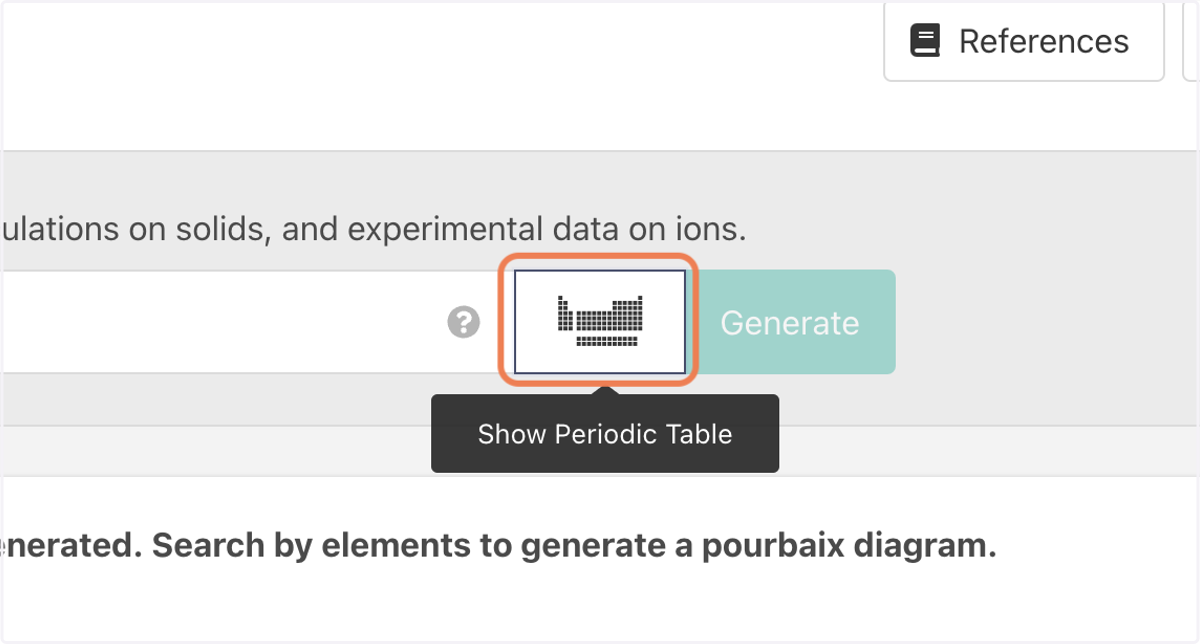

4. 4. Click on Show Periodic Table

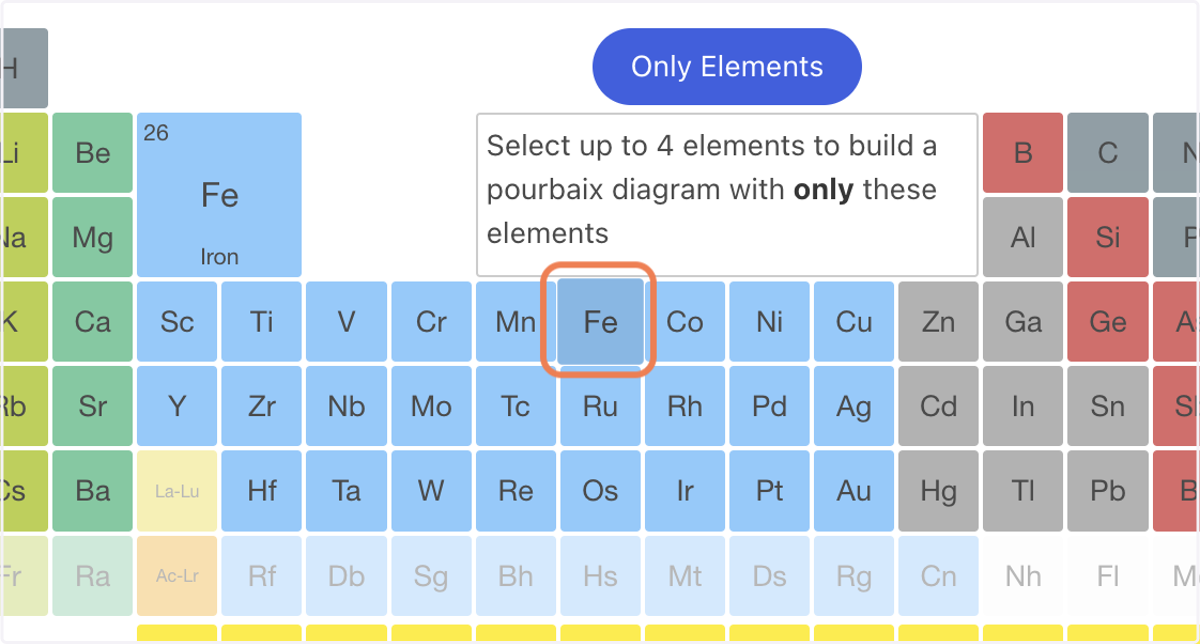

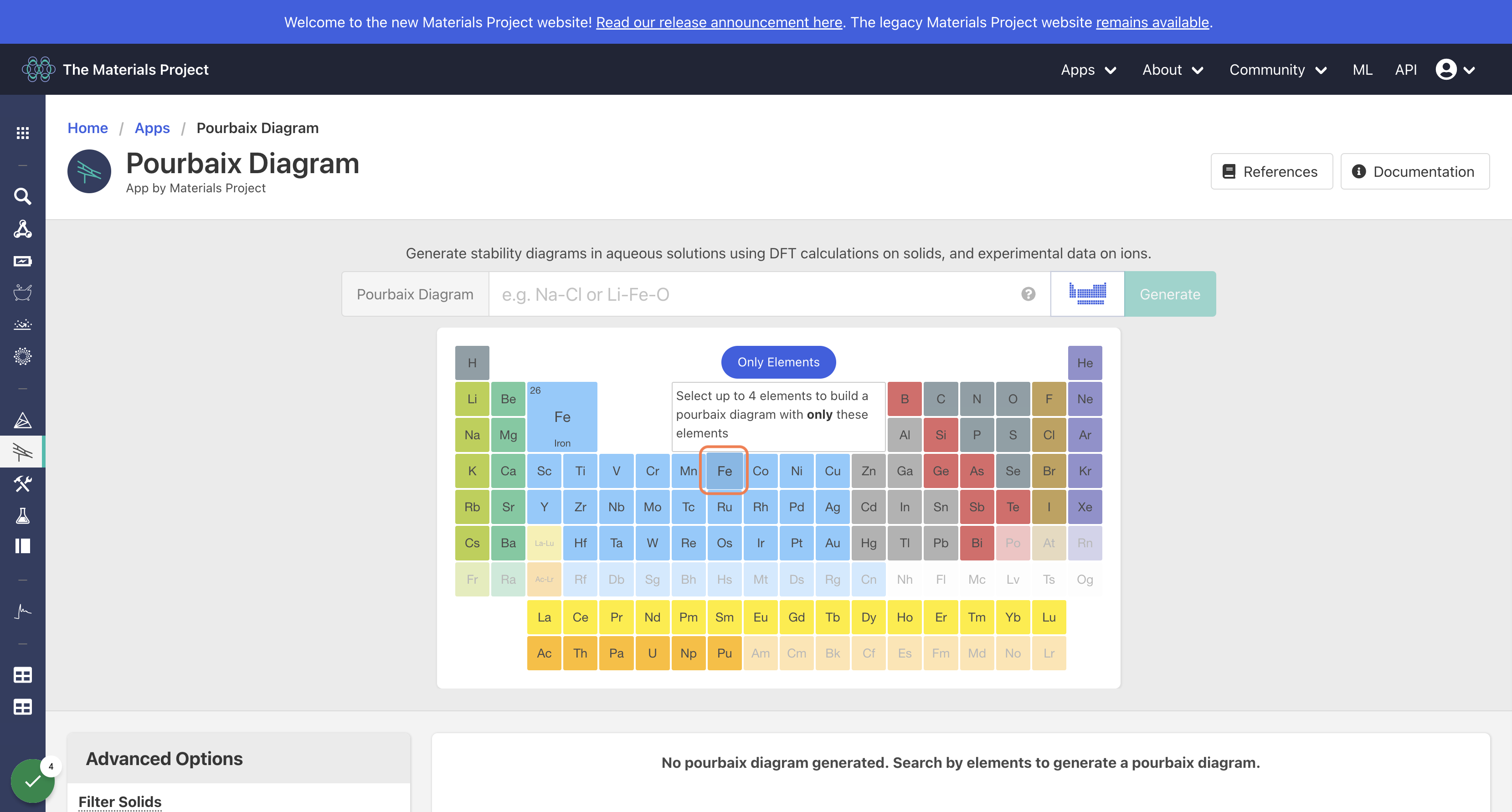

5. 5. Click on Fe

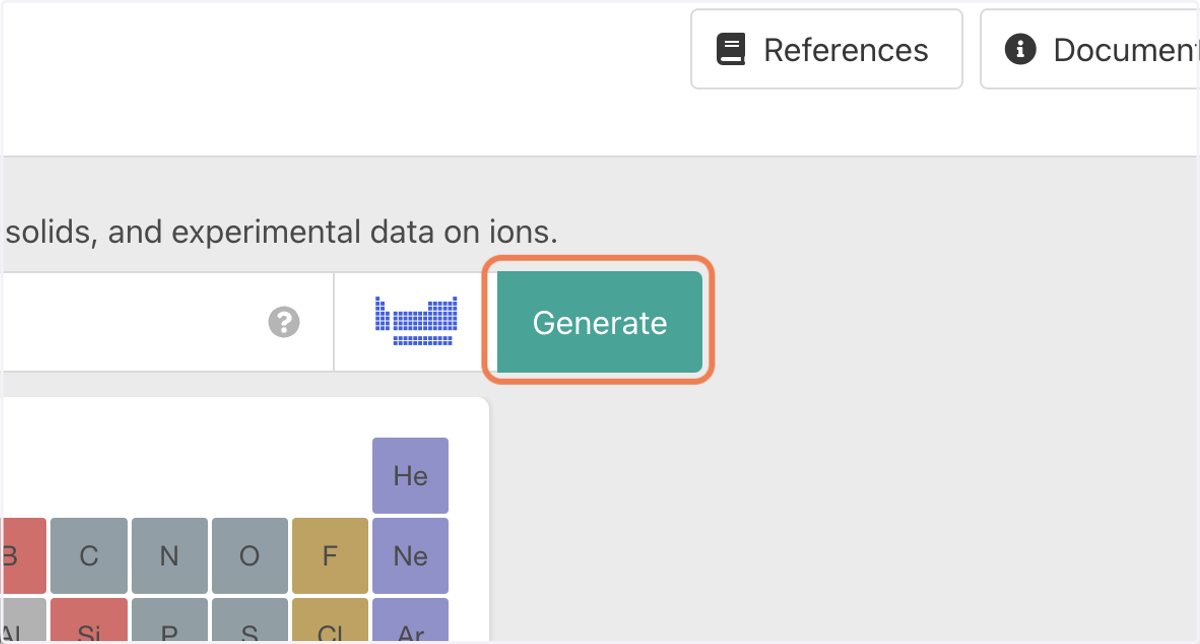

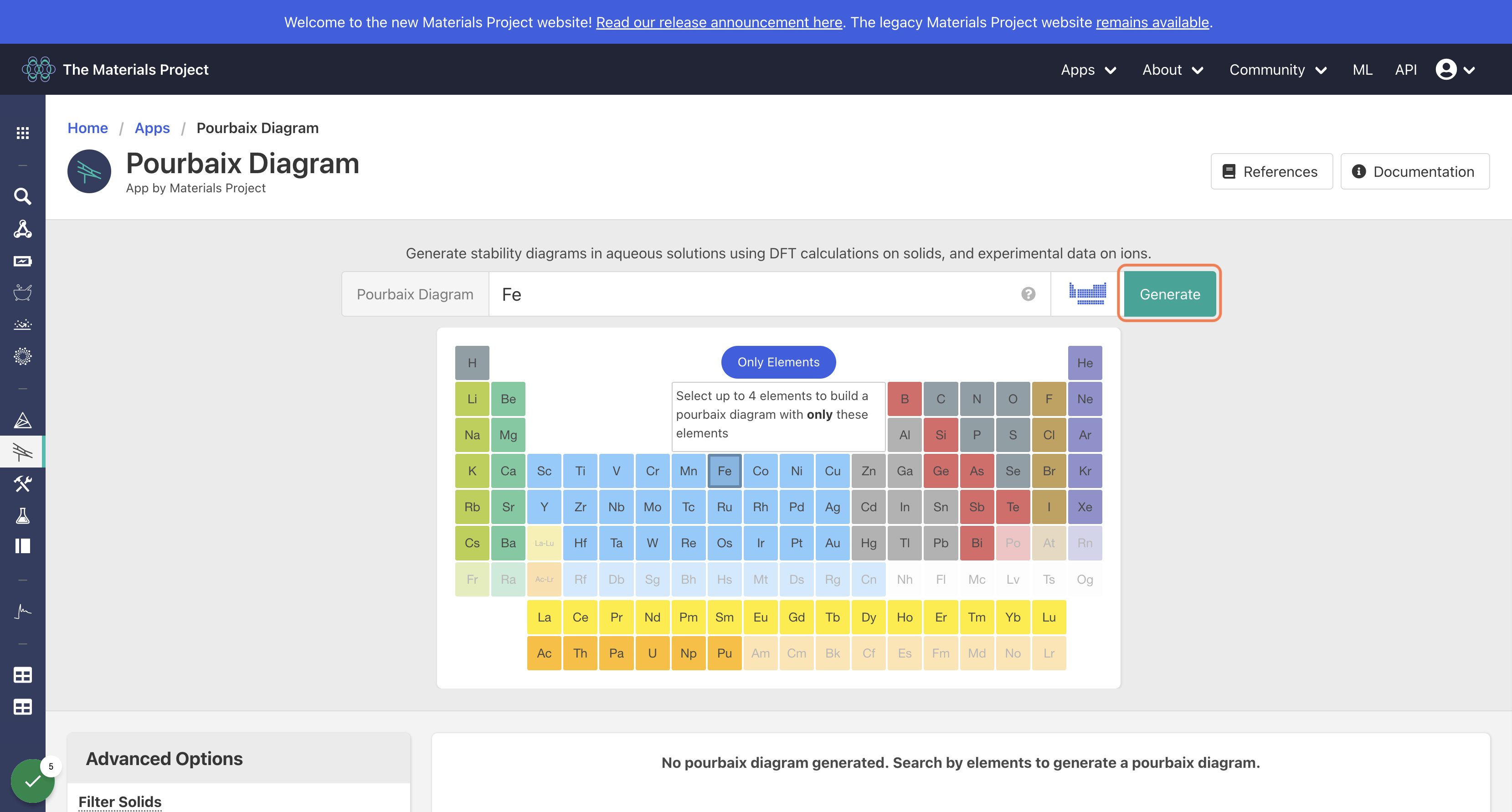

6. 6. Click on Generate

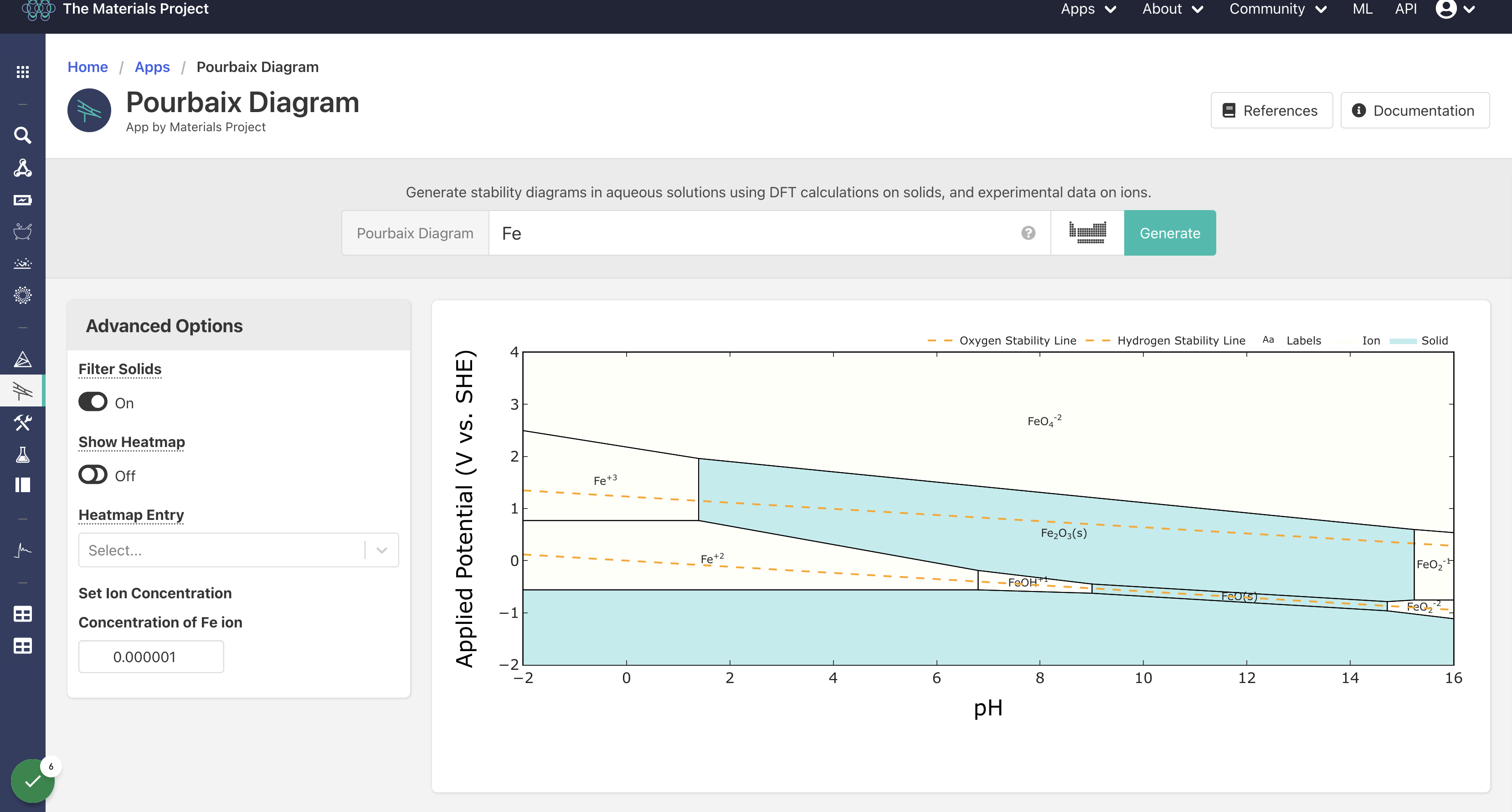

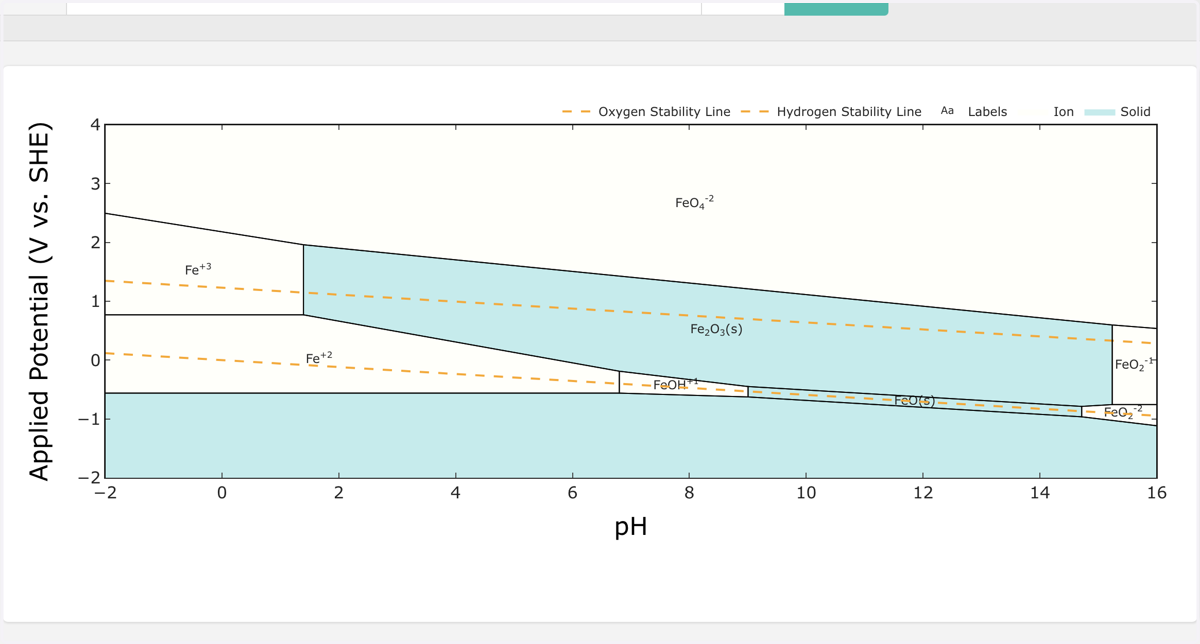

7. 7. Fe Pourbaix Diagram

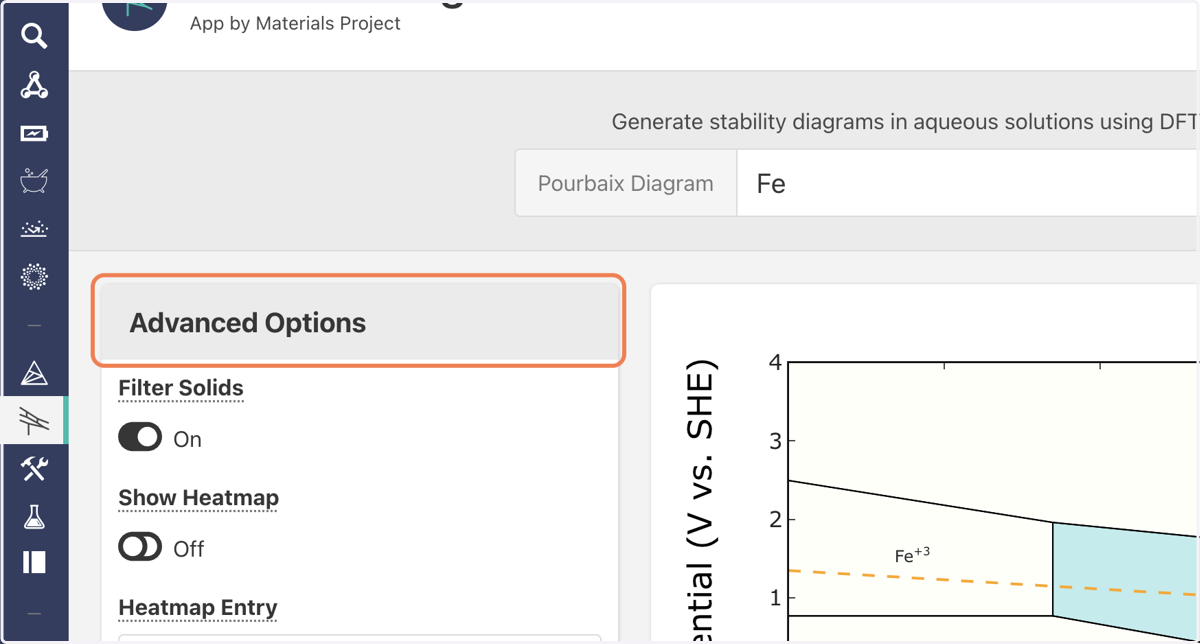

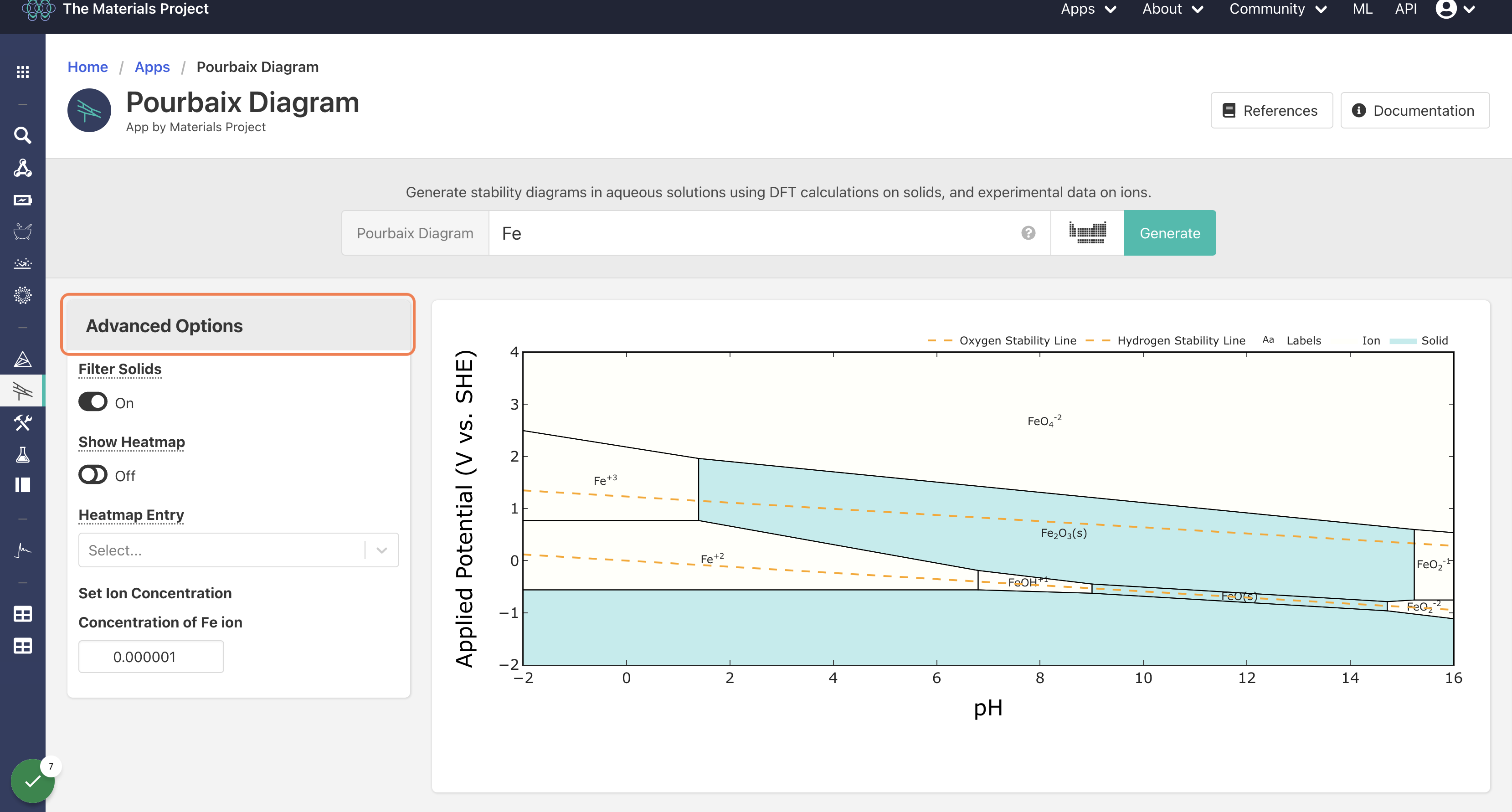

8. 8. Go to Advanced Options

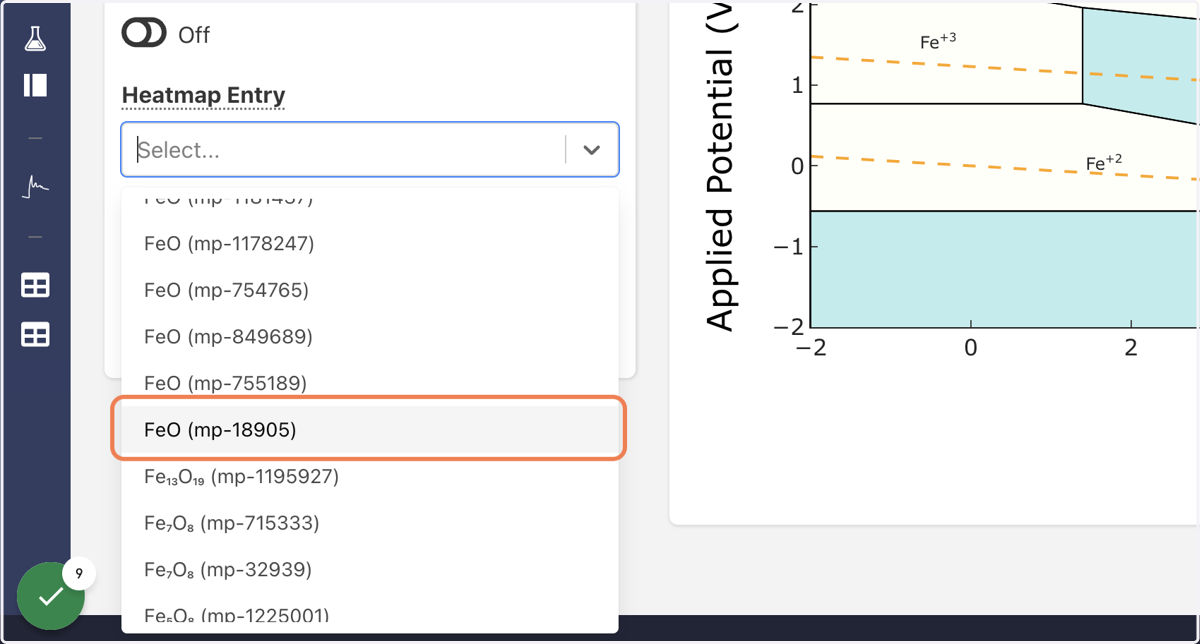

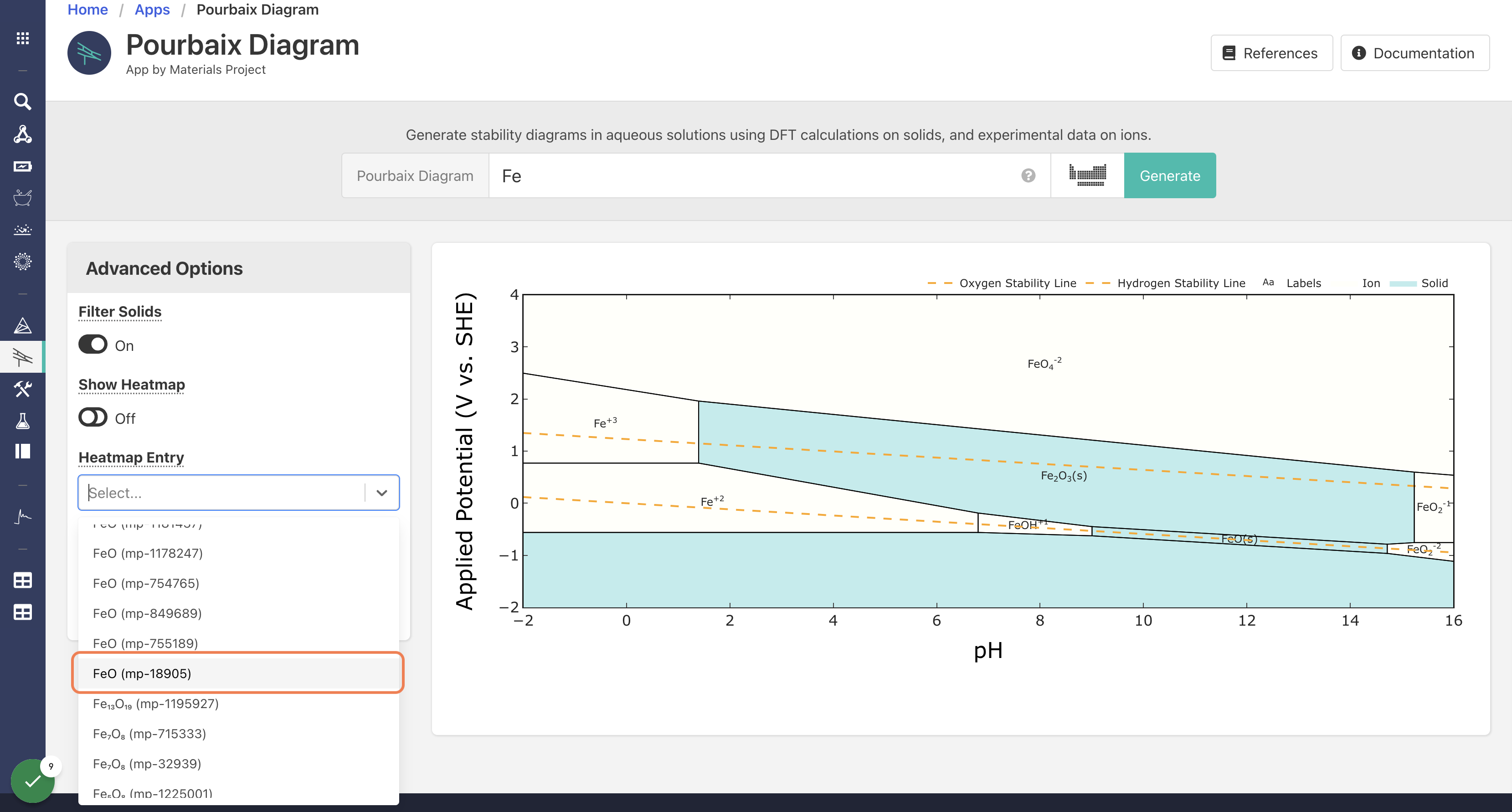

9. 9. Click on Heatmap Entry FeO (mp-18905)

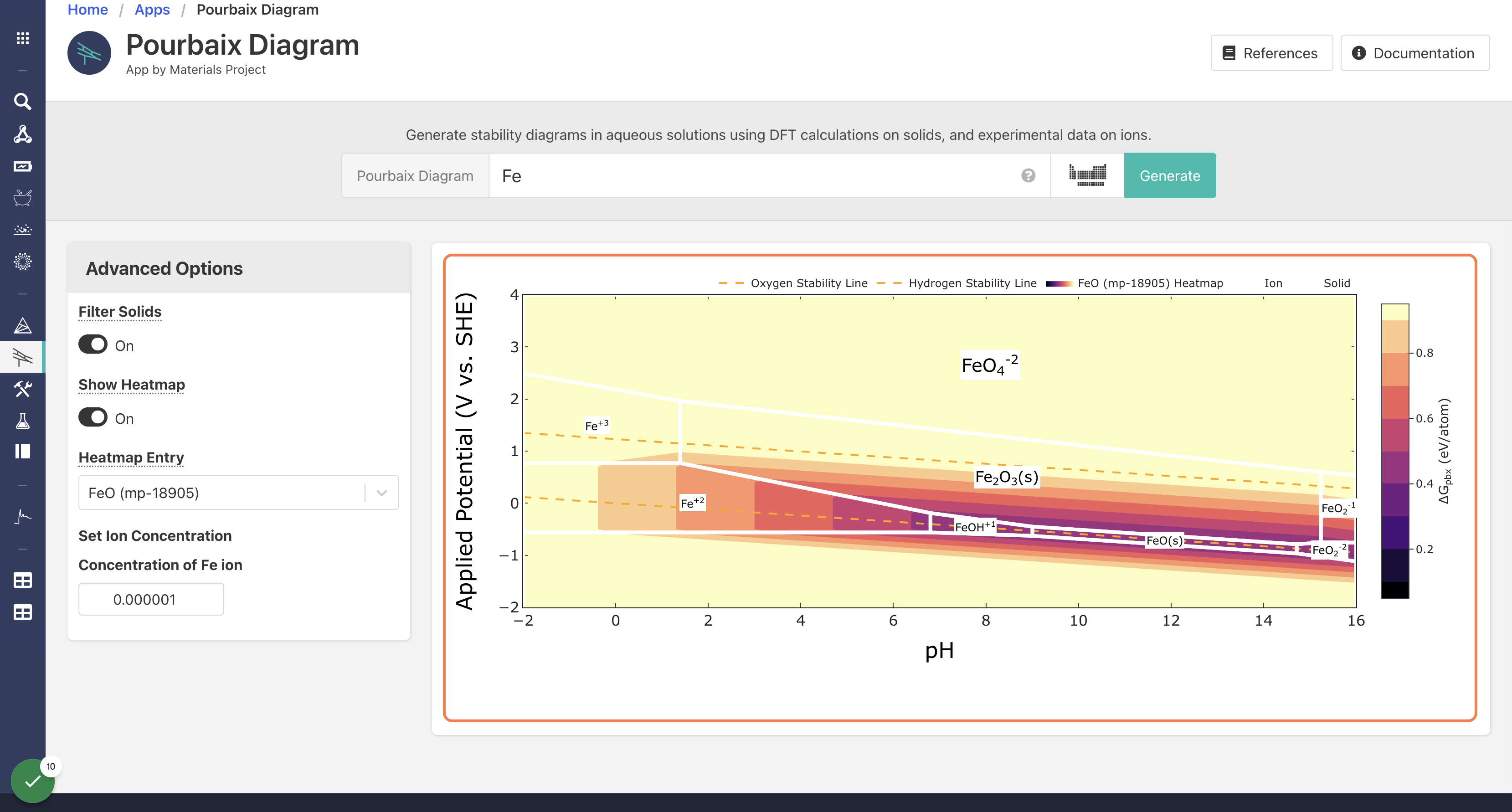

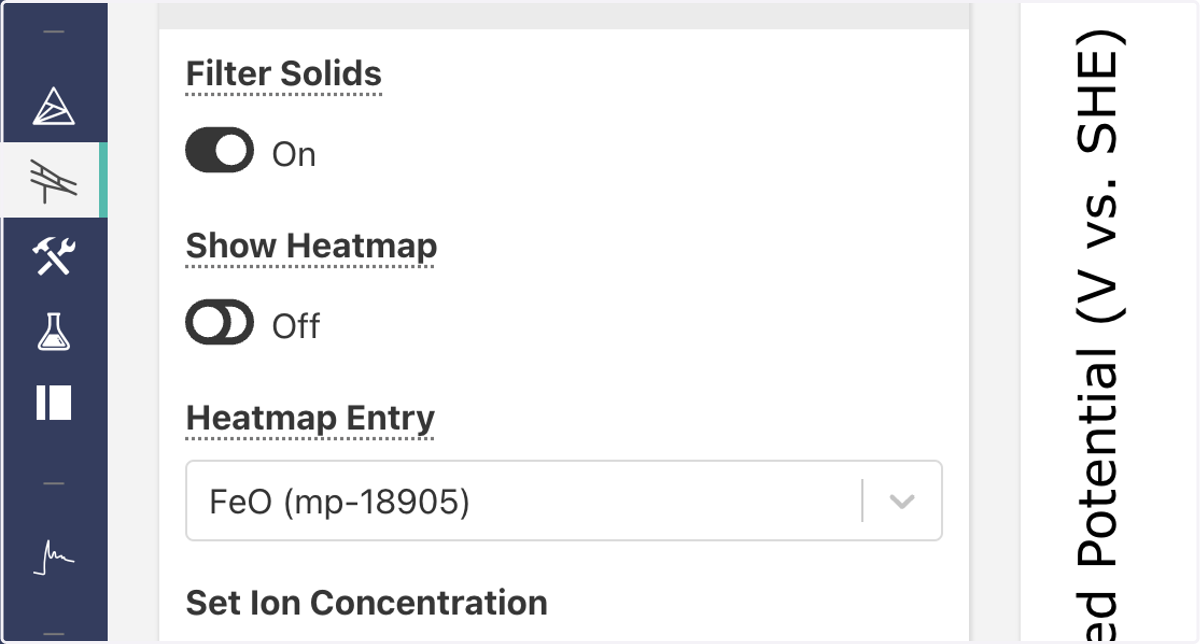

10. 10. Slide Bar to Show Heatmap



Materialsproject

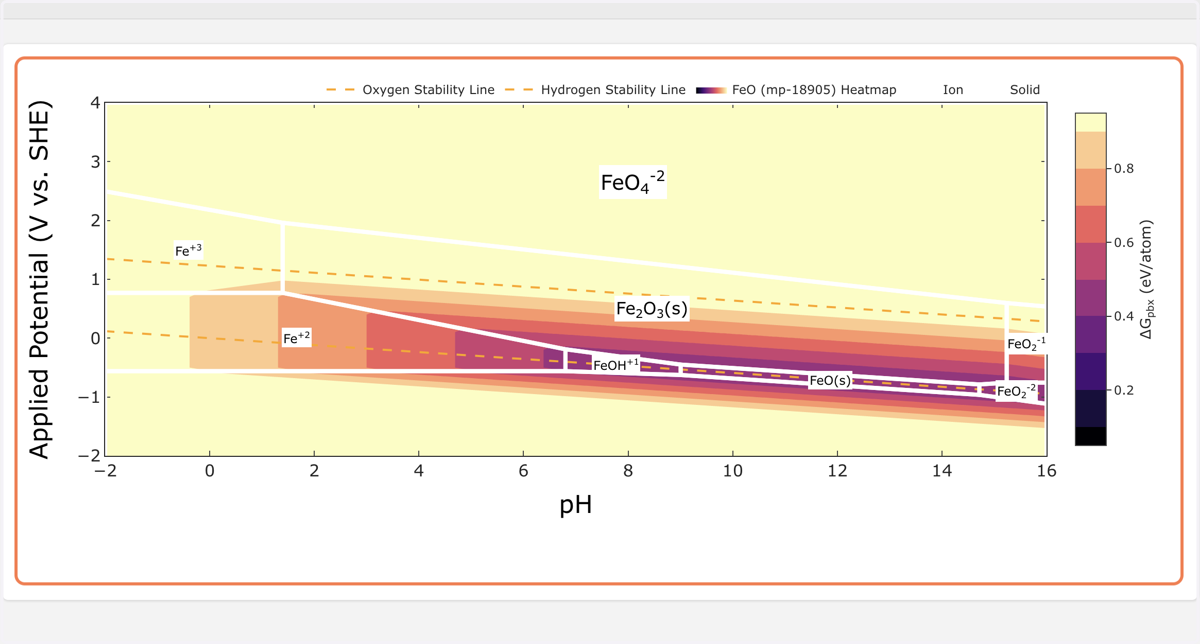

1. 11. Heatmap

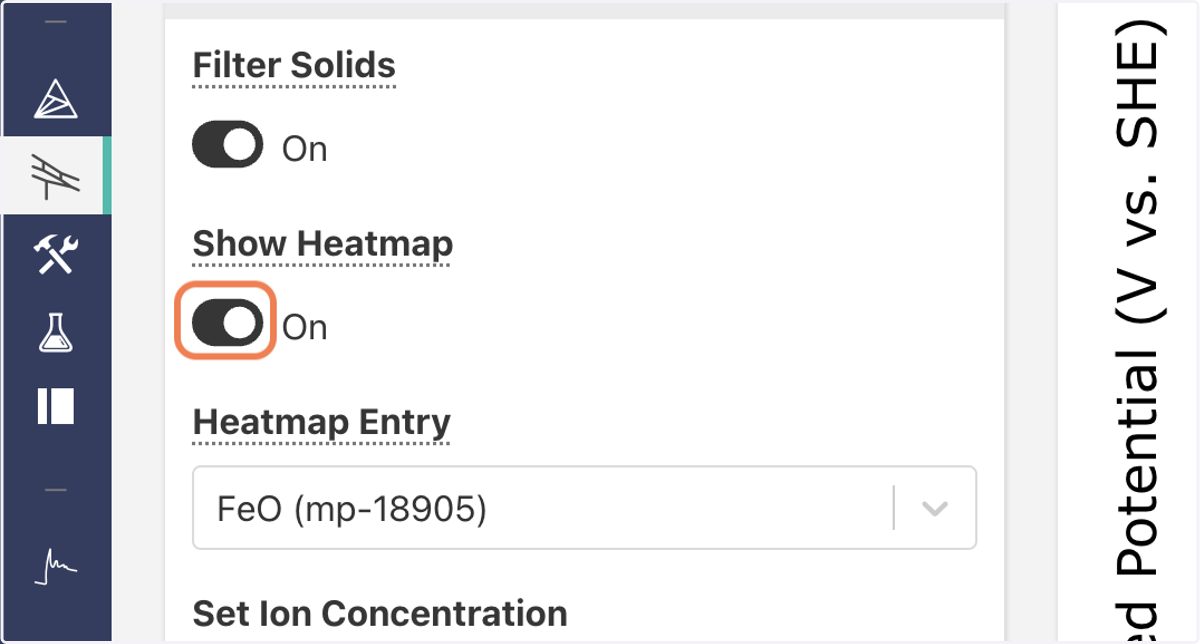

2. 12. Slide Heatmap to Off



Materialsproject

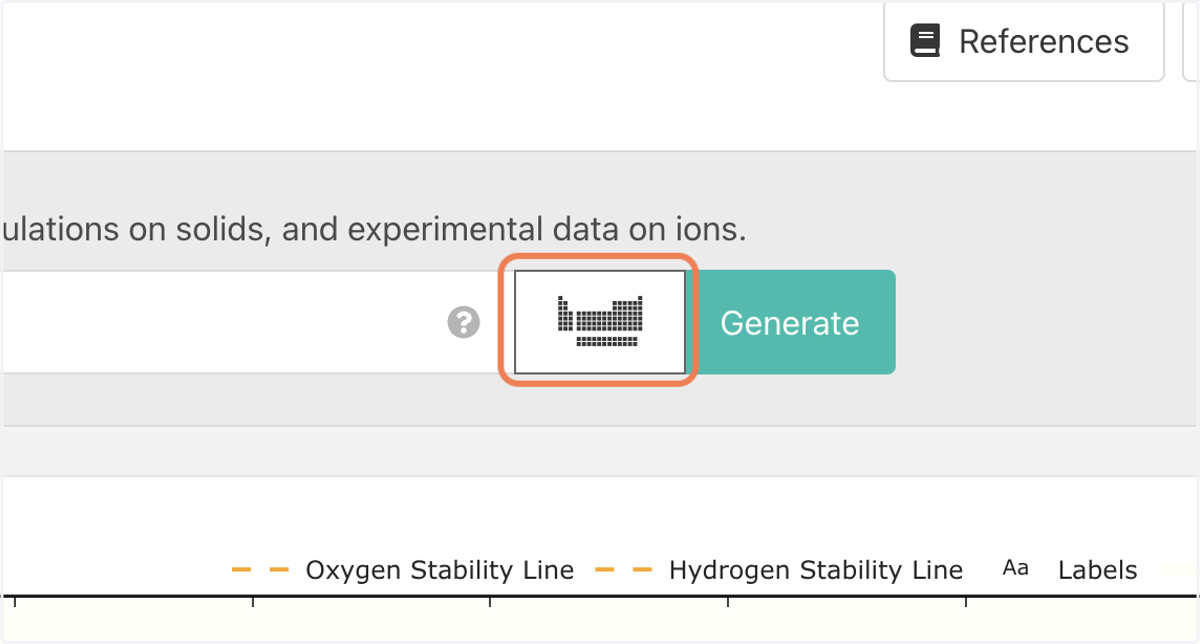

1. 13. Click on Periodic Table

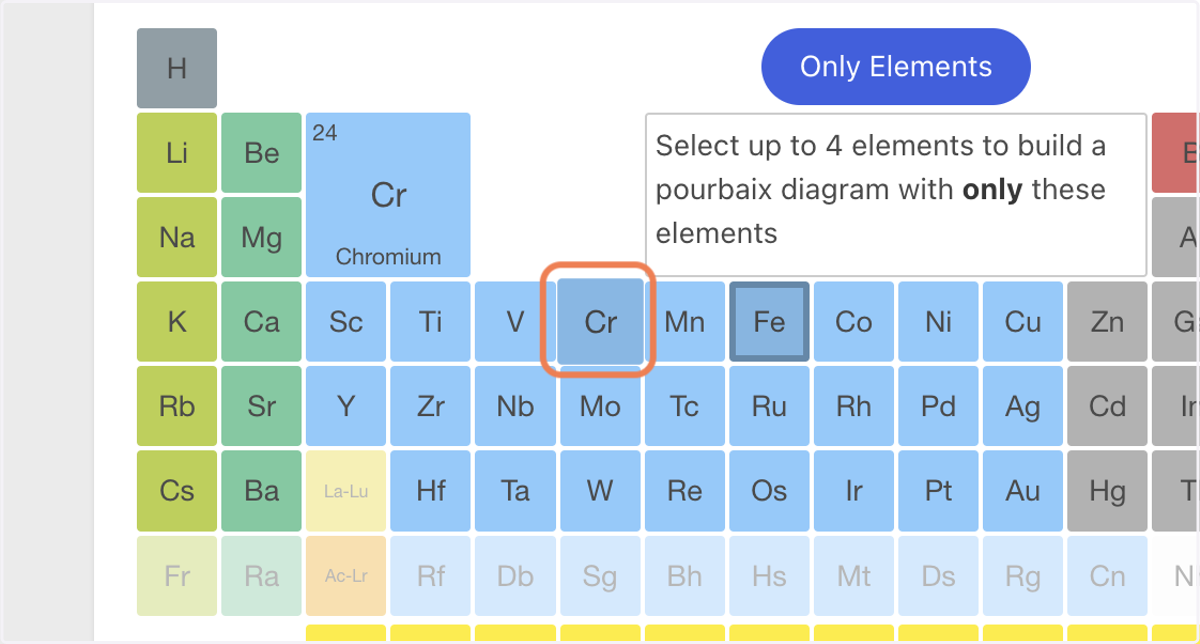

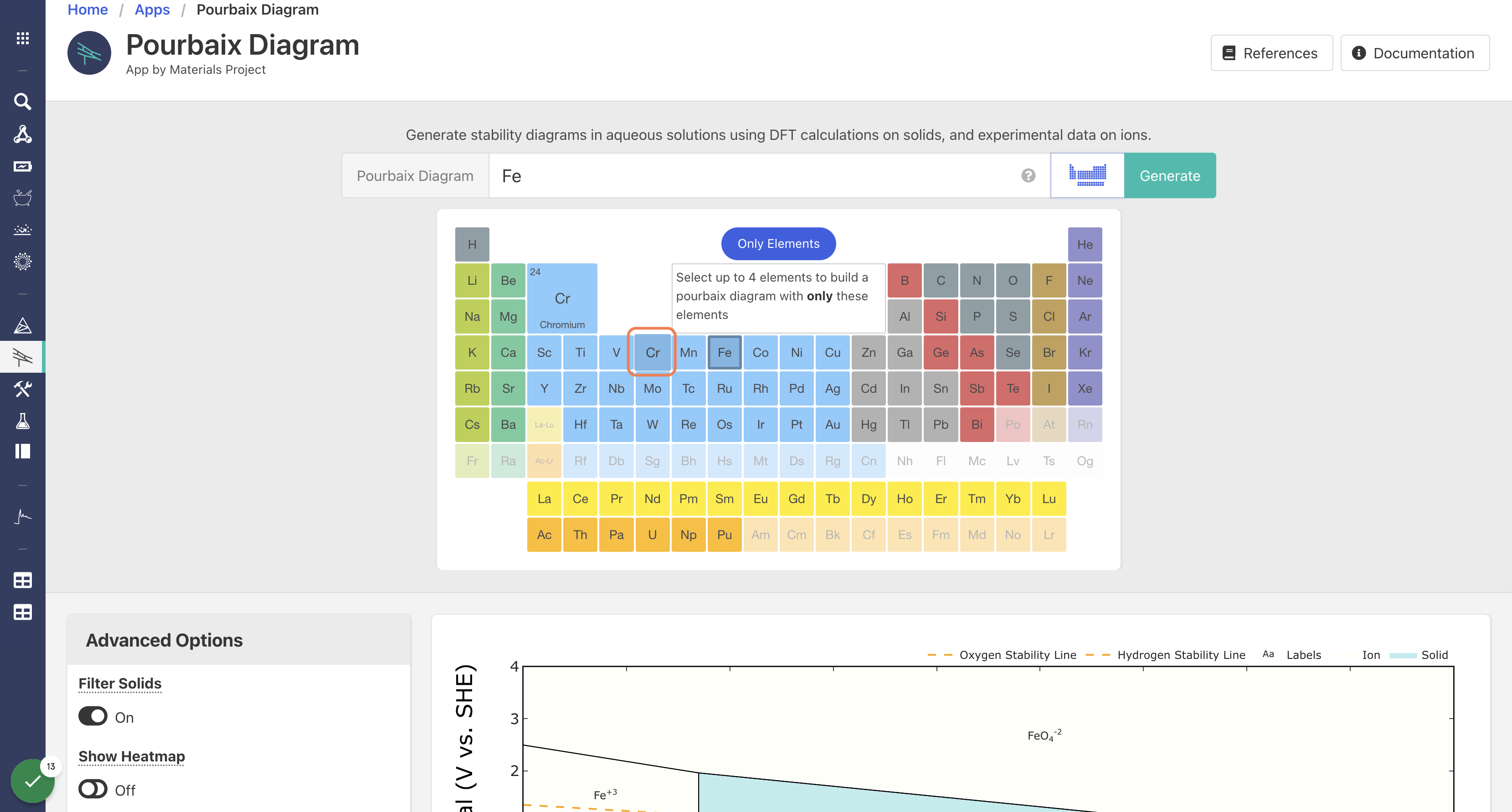

2. 14. Click on Cr

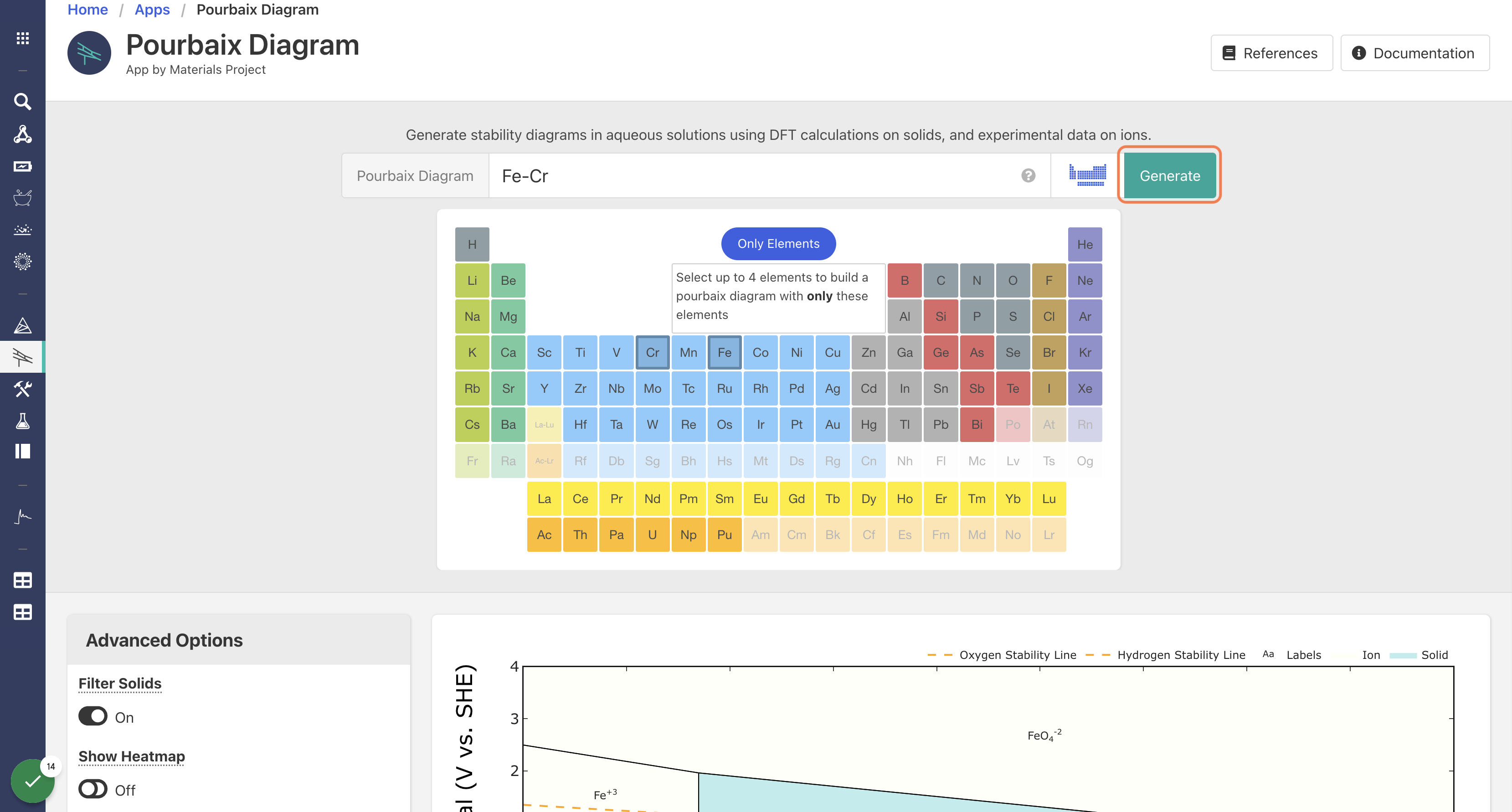

3. 15. Click on Generate

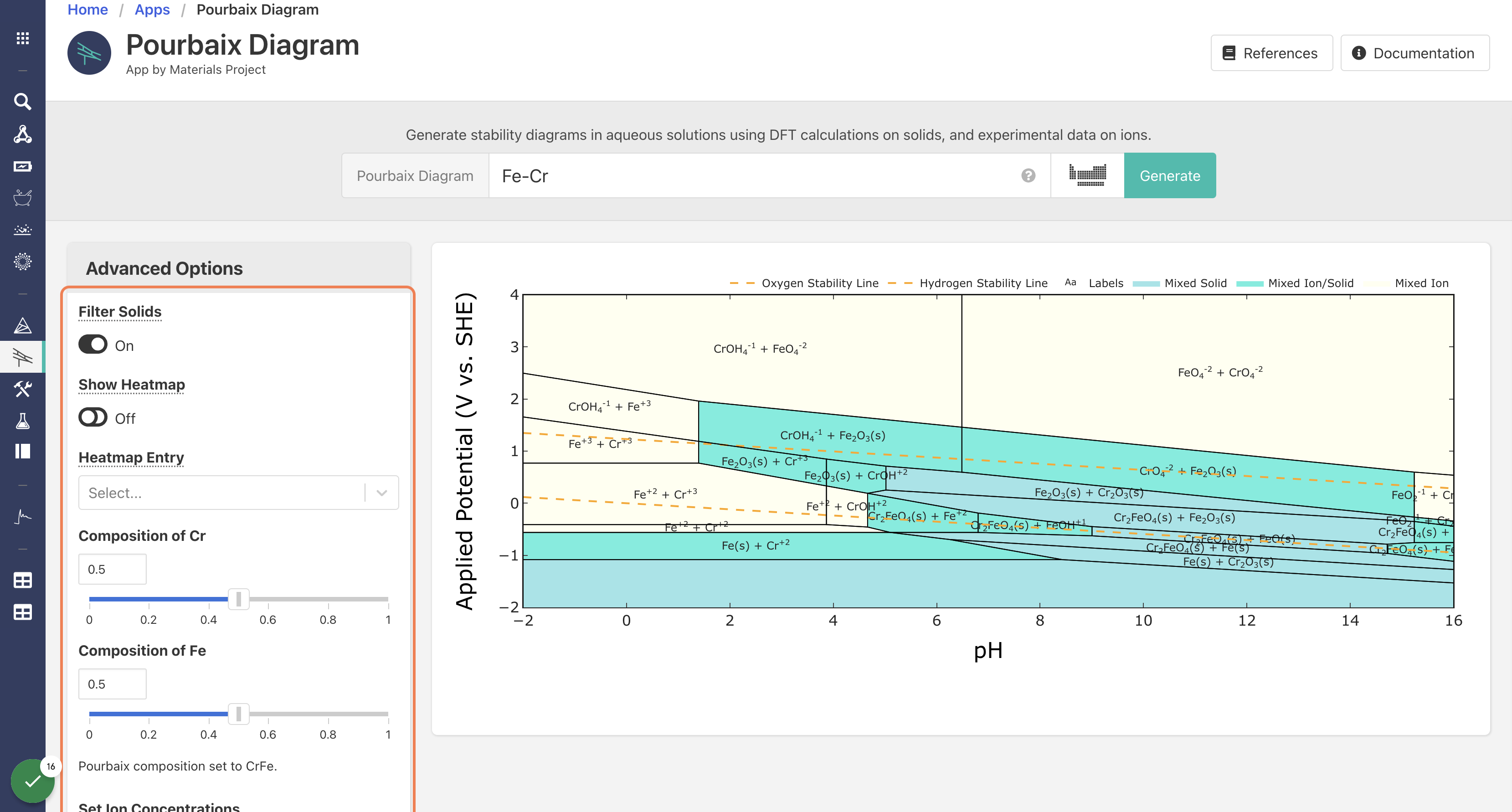

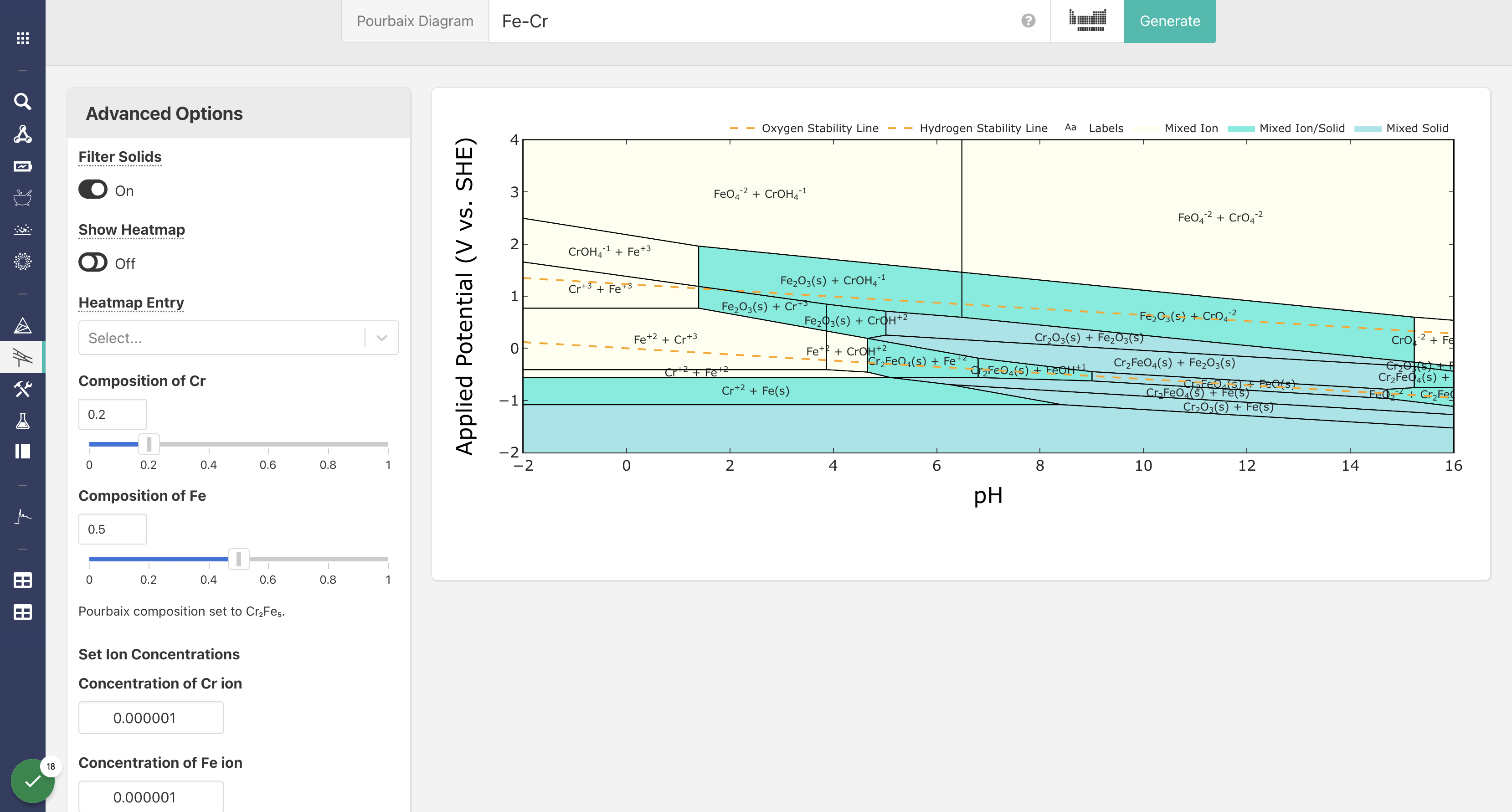

4. 16. Fe - Cr Pourbaix Diagram

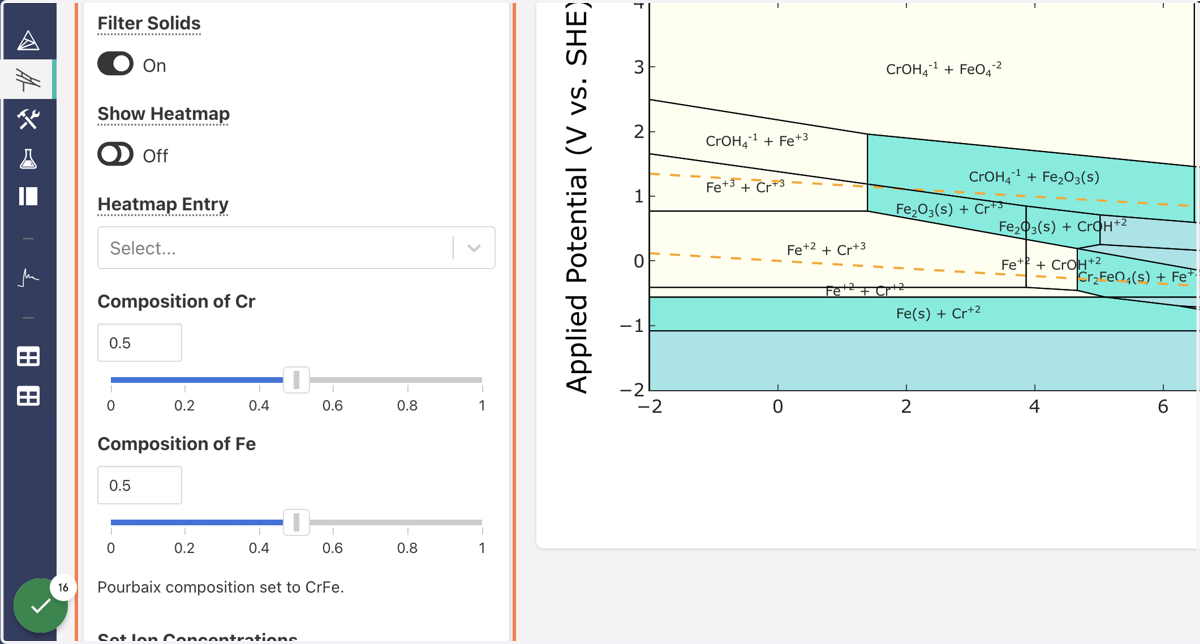

5. 17. Go to Advanced Options

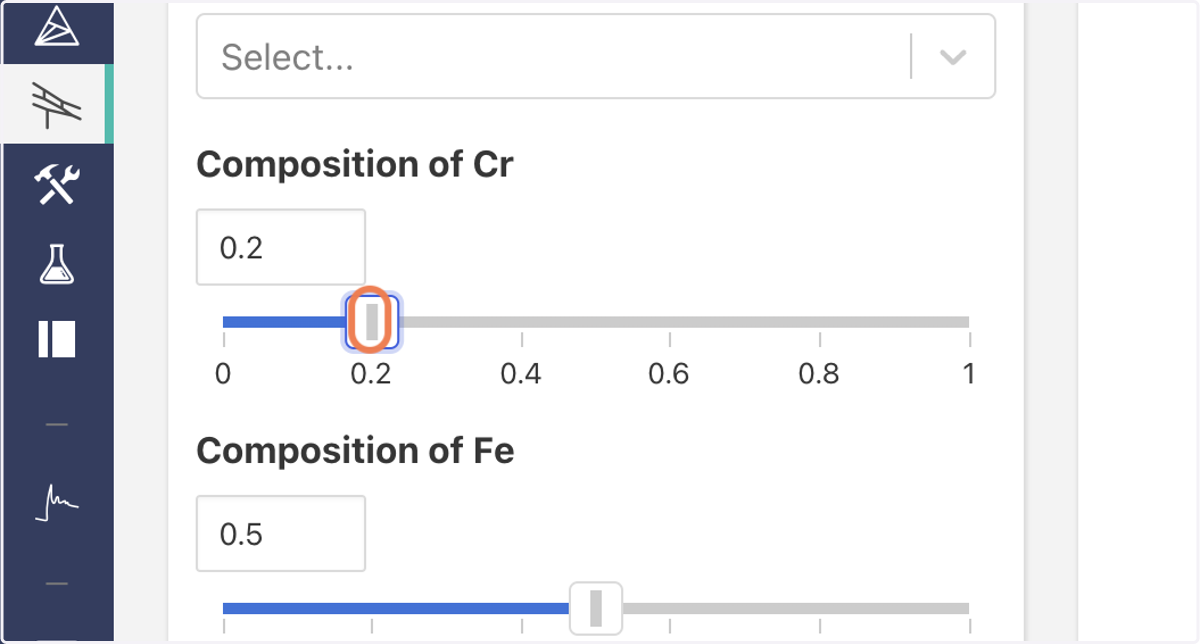

6. 18. Drag Composition Bars as Desired

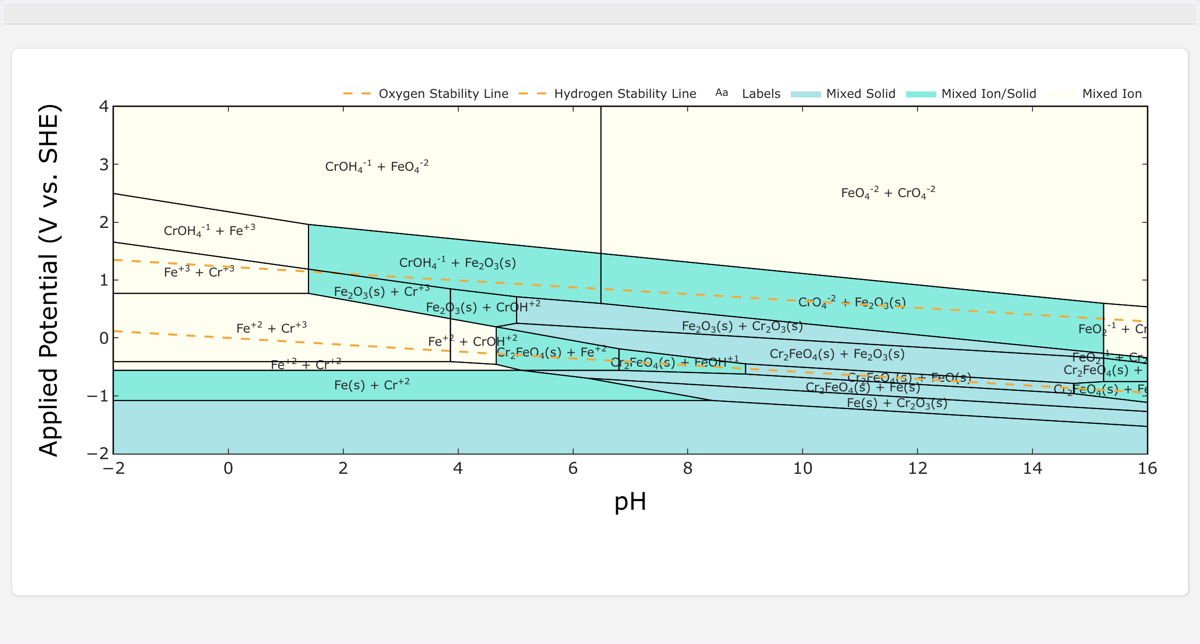

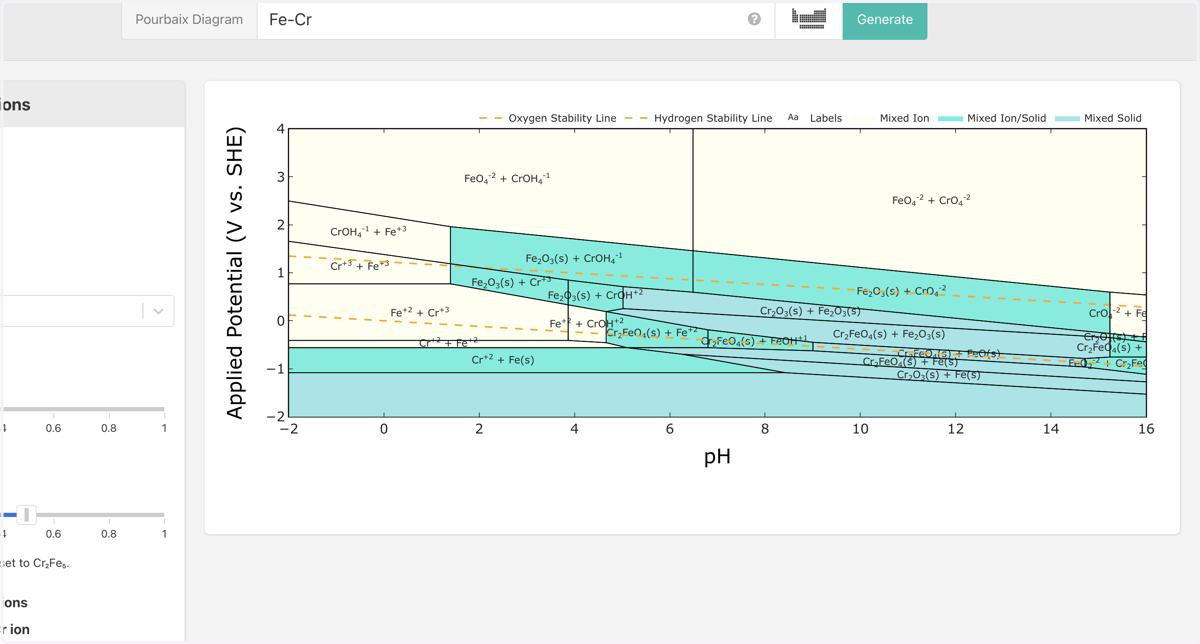

7. 19. Fe - Cr Pourbaix Diagram
