How to setup analog, digital system controls and a message/warning for a Firepack

  1. 1. Navigate to web.firecoach.app

  2. 2. Log in with your Firecoach account

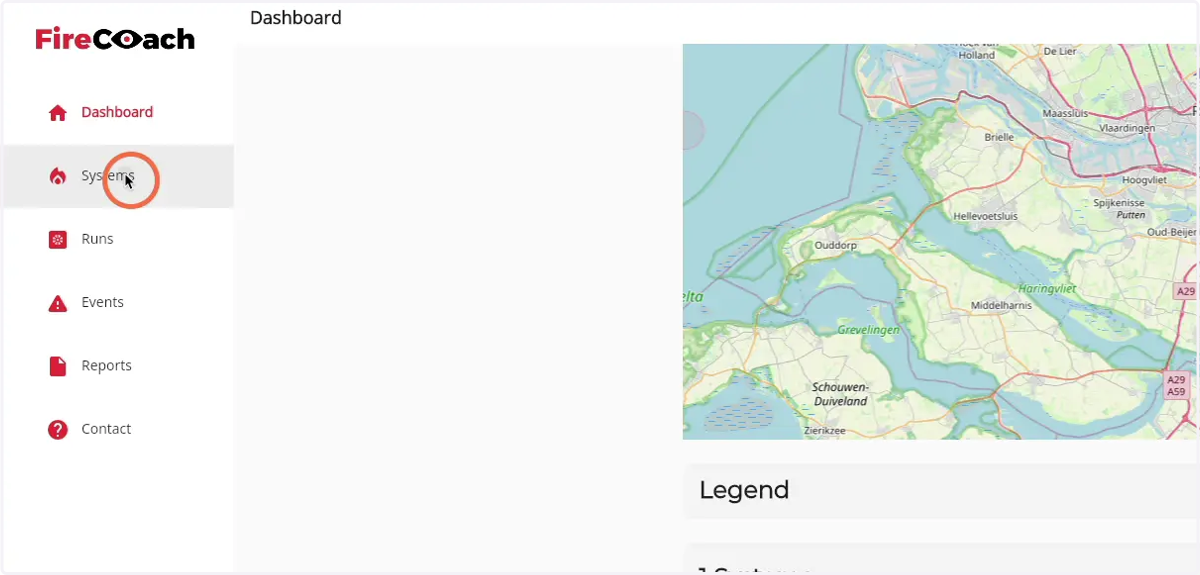

  3. 3. Click on 'Systems'

    Click on 'Systems'

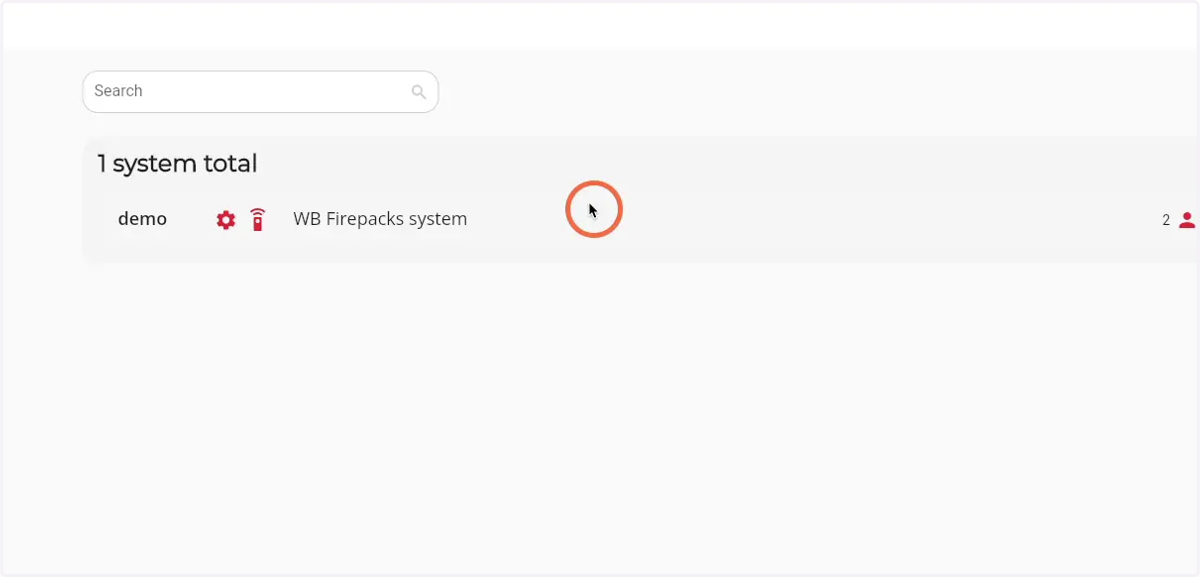

  4. 4. Click on the system you would like to setup the system controls for

    Click on the system you would like to setup the system controls for

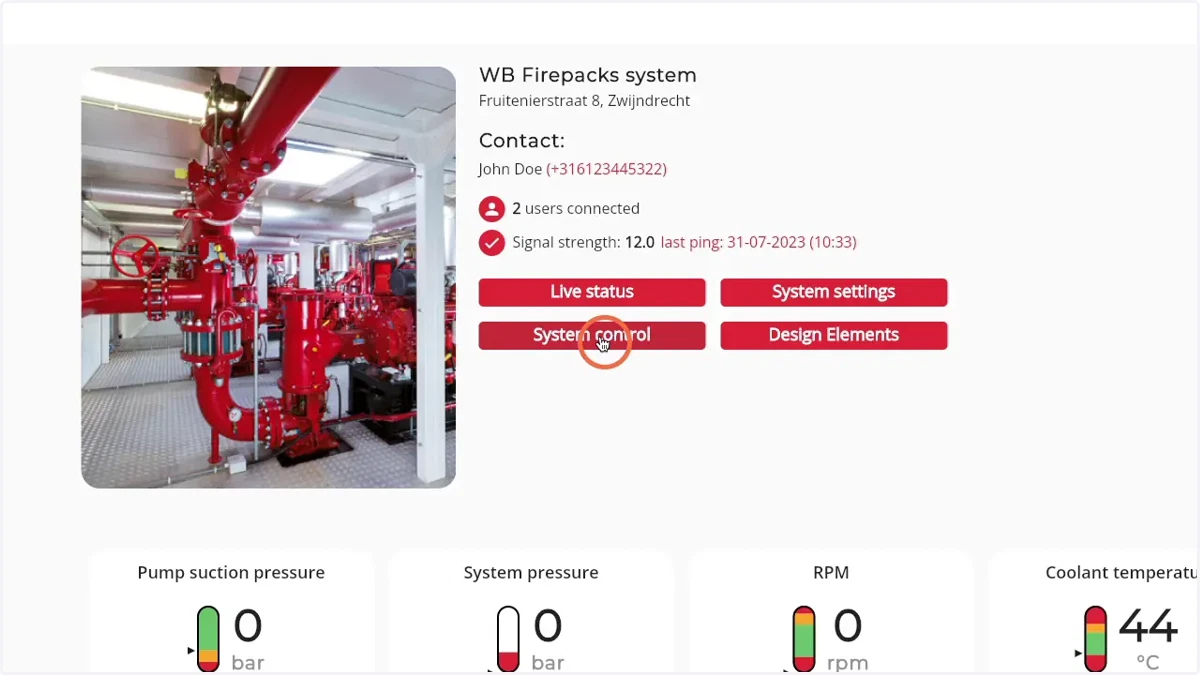

  5. 5. Click on 'System control'

    Click on 'System control'

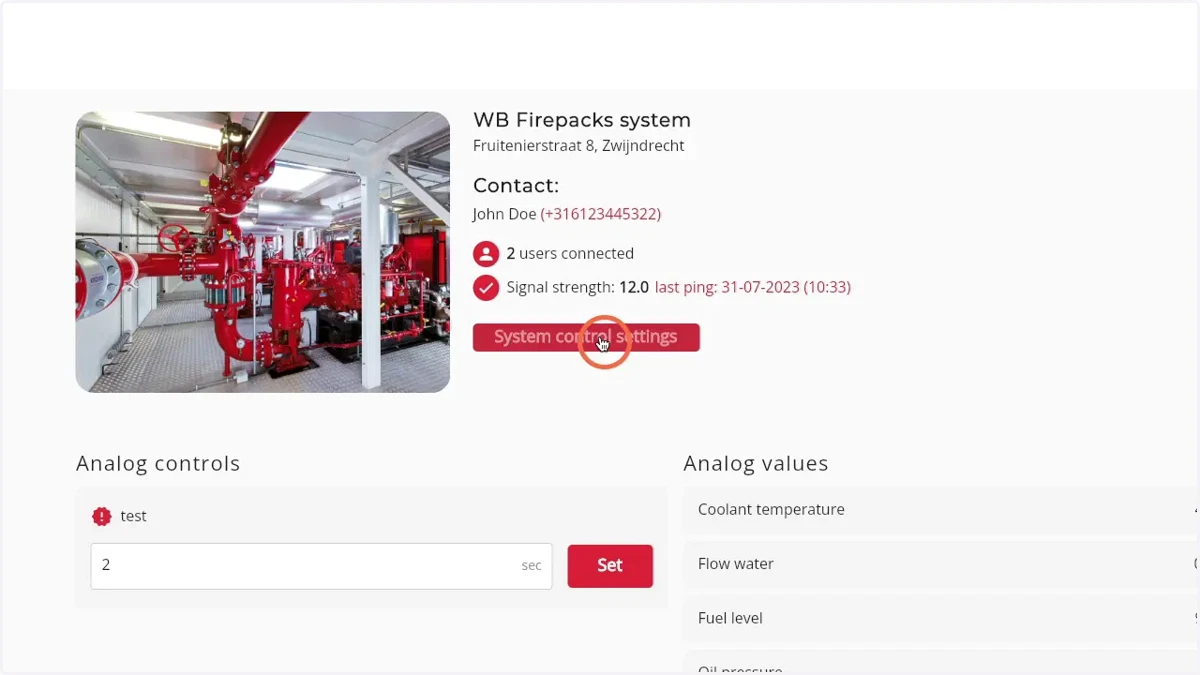

  6. 6. Click 'System control settings'

    Click 'System control settings'

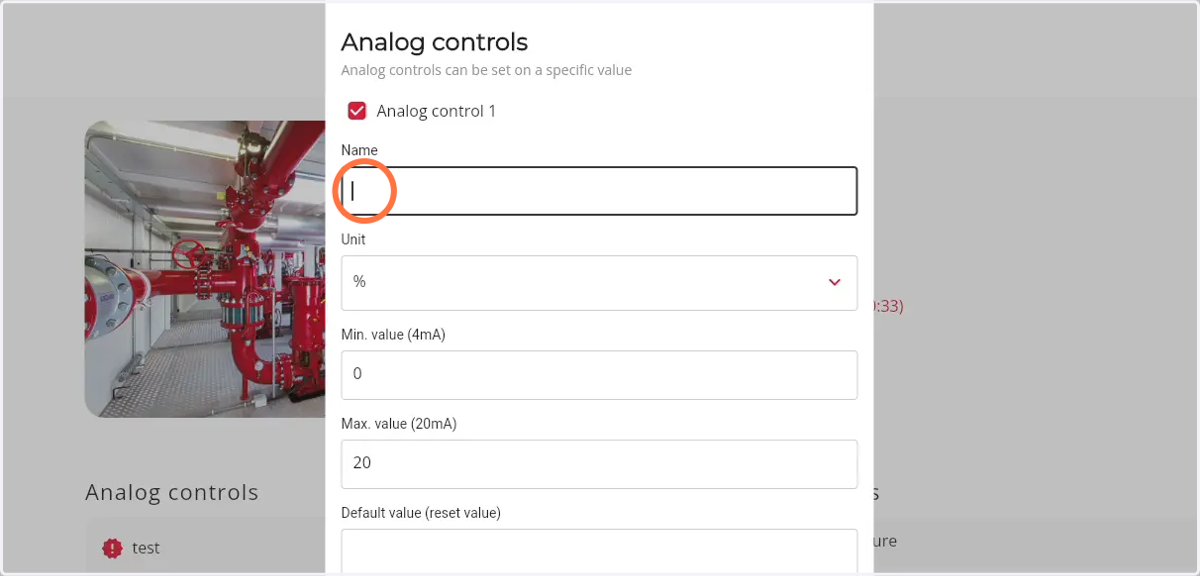

  1. 7. Enter the name of the Analog control

    Enter the name of the Analog control

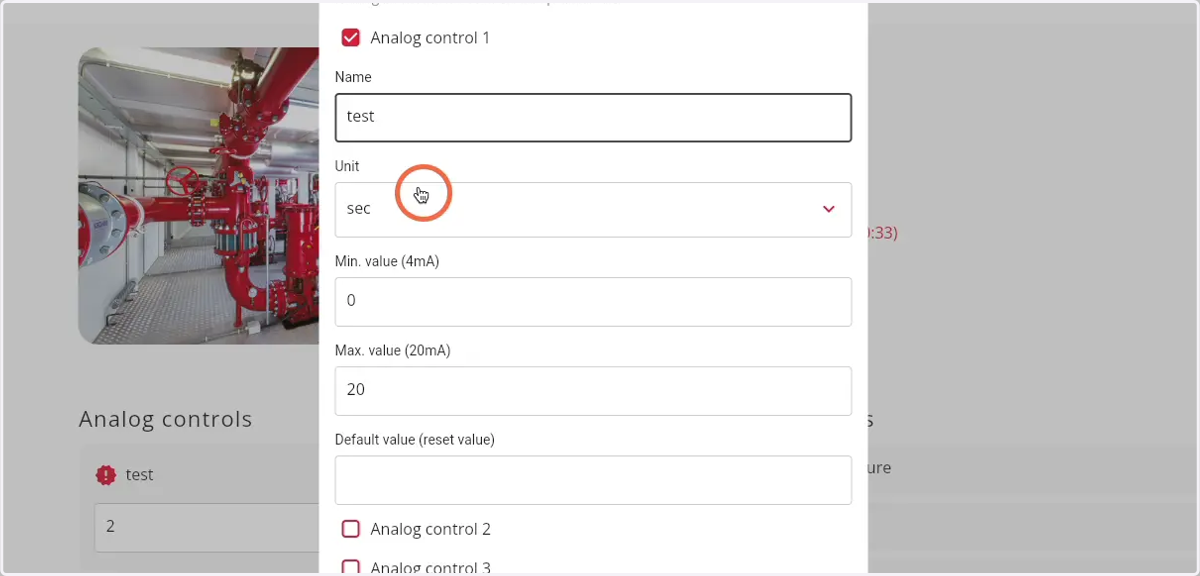

  2. 8. Open the dropdown for the analog control unit

    Open the dropdown for the analog control unit

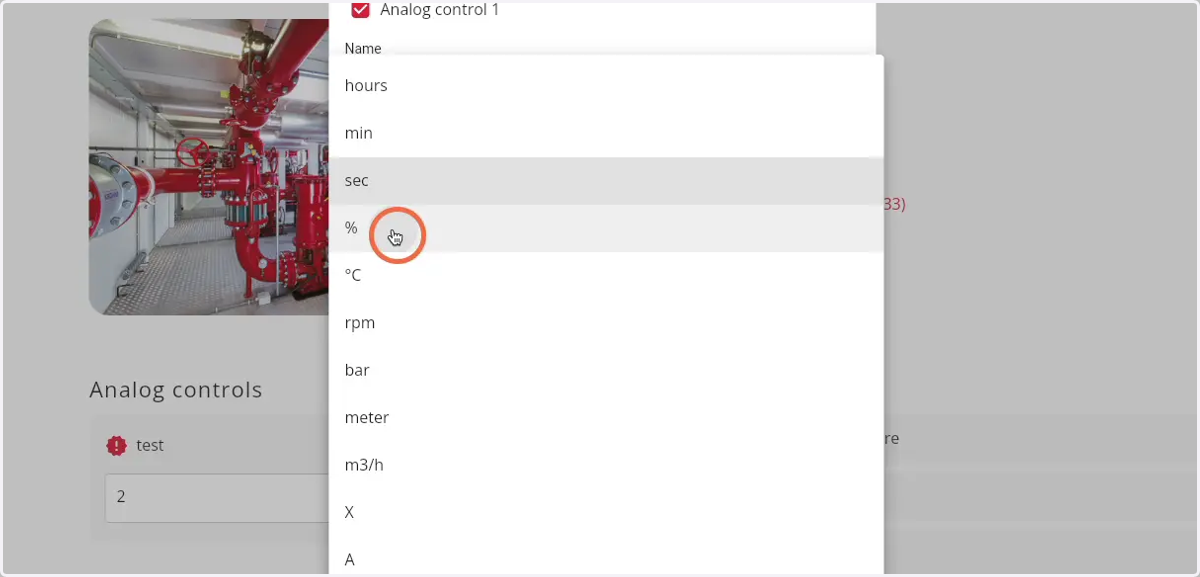

  3. 9. Select the preferred unit from the dropdown

    Select the preferred unit from the dropdown

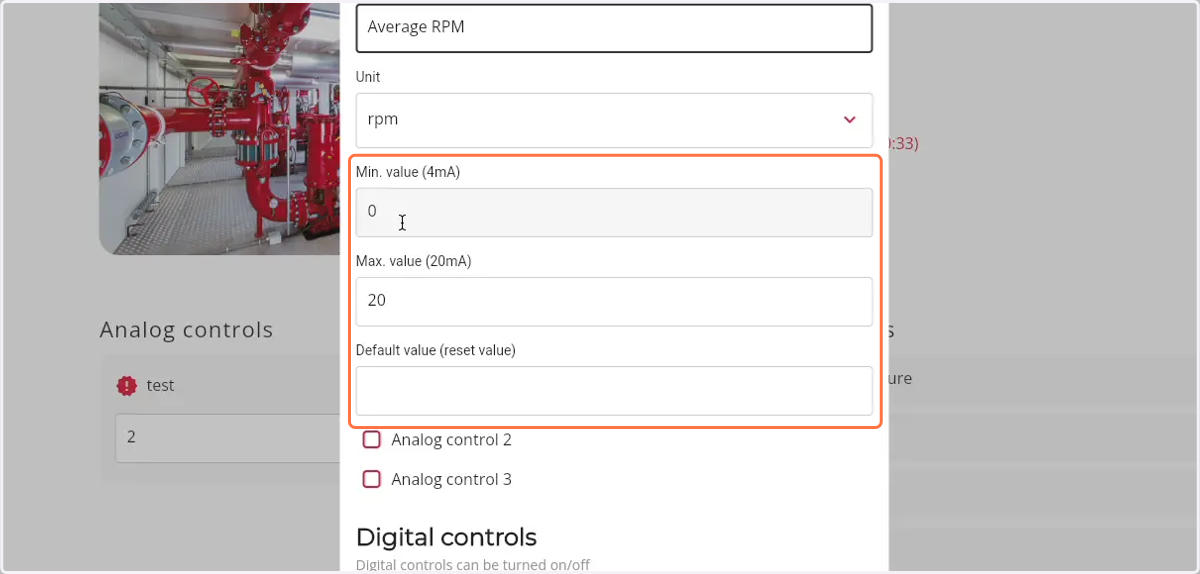

  4. 10. Enter the minimum, maximum and default value

    Enter the minimum, maximum and default value

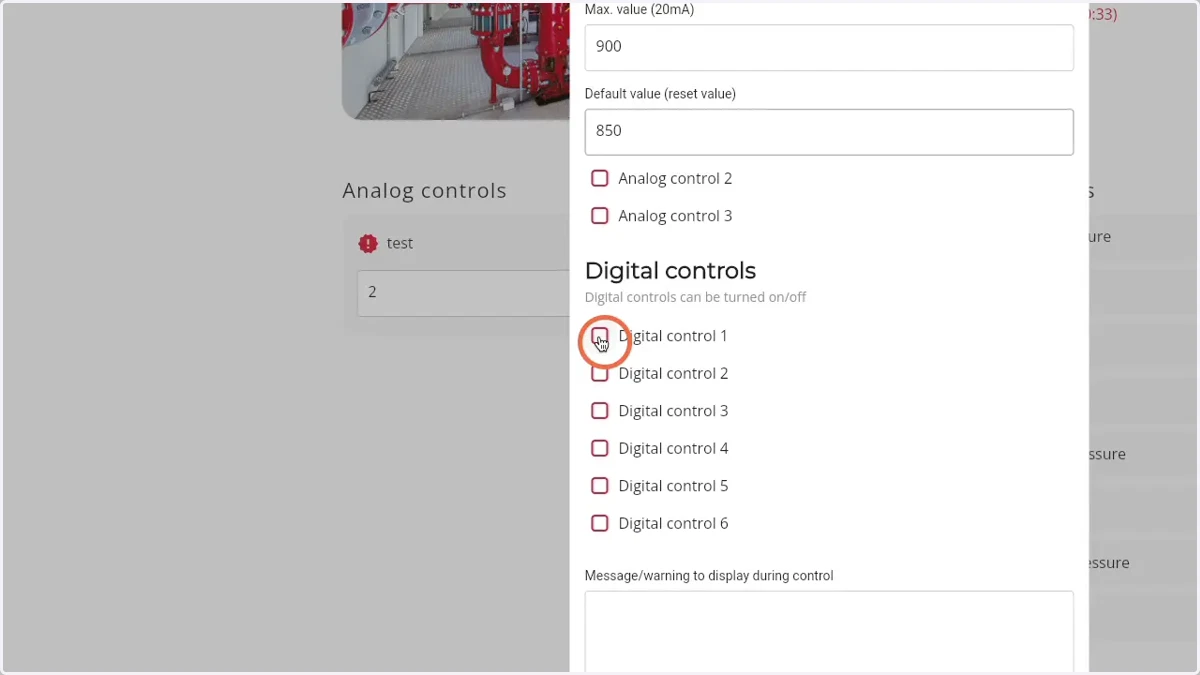

  1. 11. Add a new Digital control by selecting the checkbox

    Add a new Digital control by selecting the checkbox

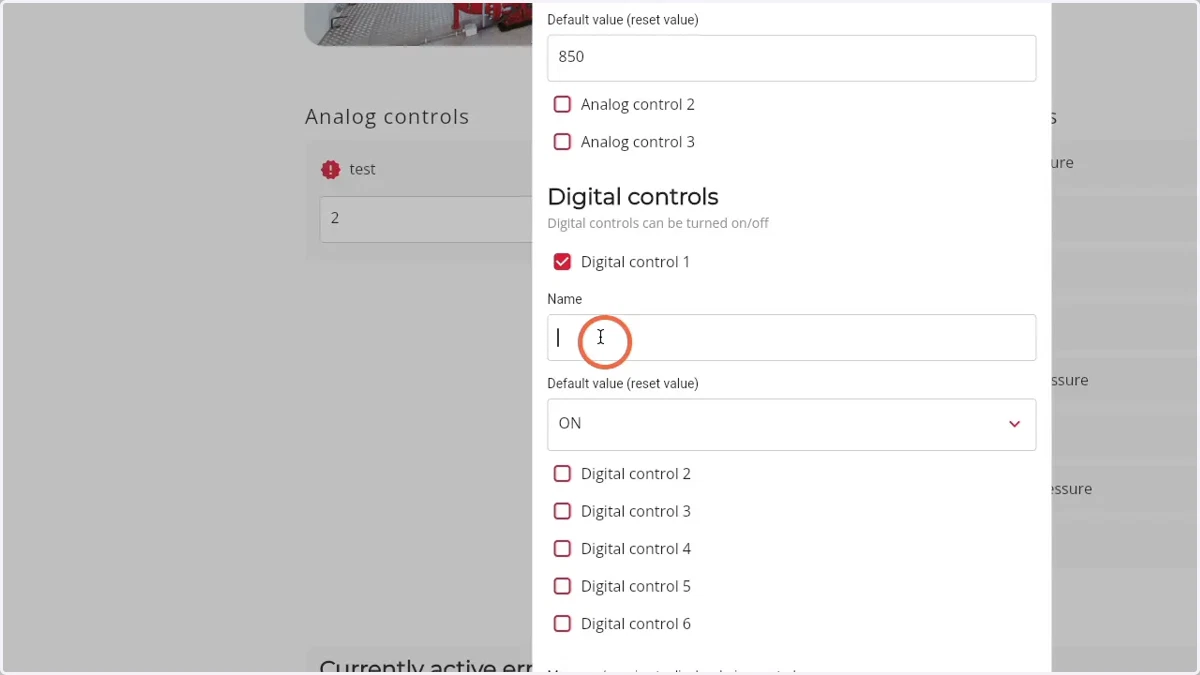

  2. 12. Enter the name for the digital control

    Enter the name for the digital control

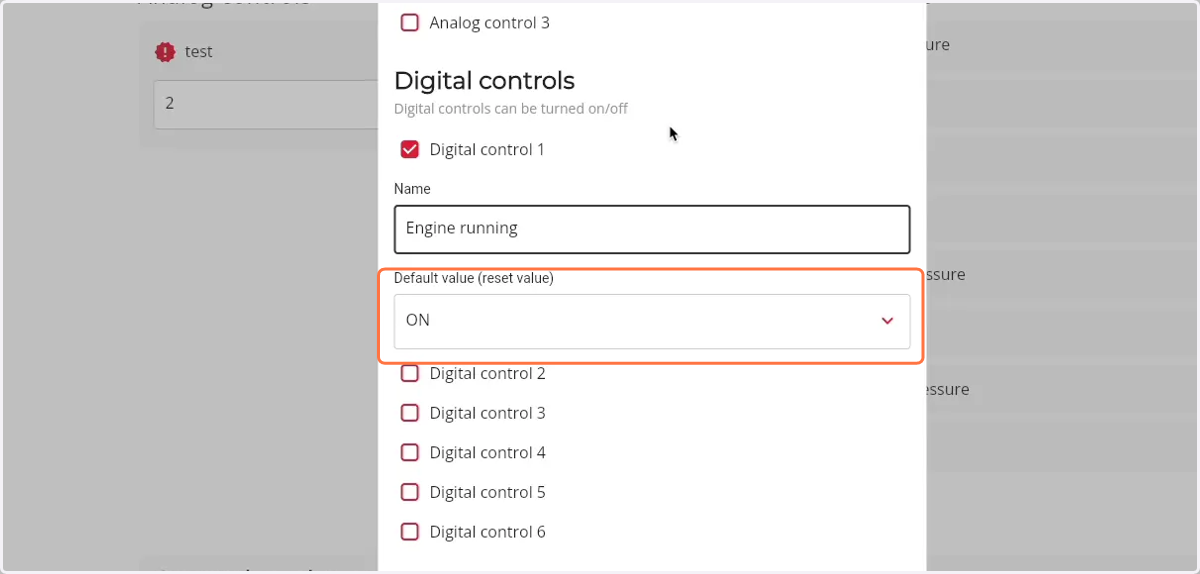

  3. 13. Select de default value from the dropdown

    Select de default value from the dropdown

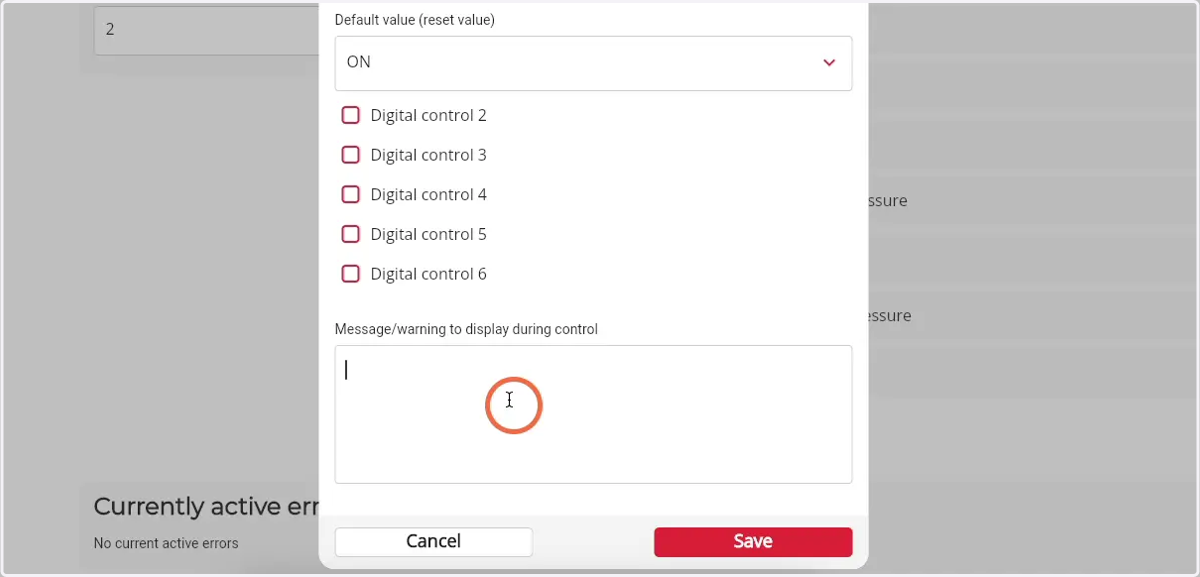

  1. 14. Enter the message you would like to display during control

    Enter the message you would like to display during control

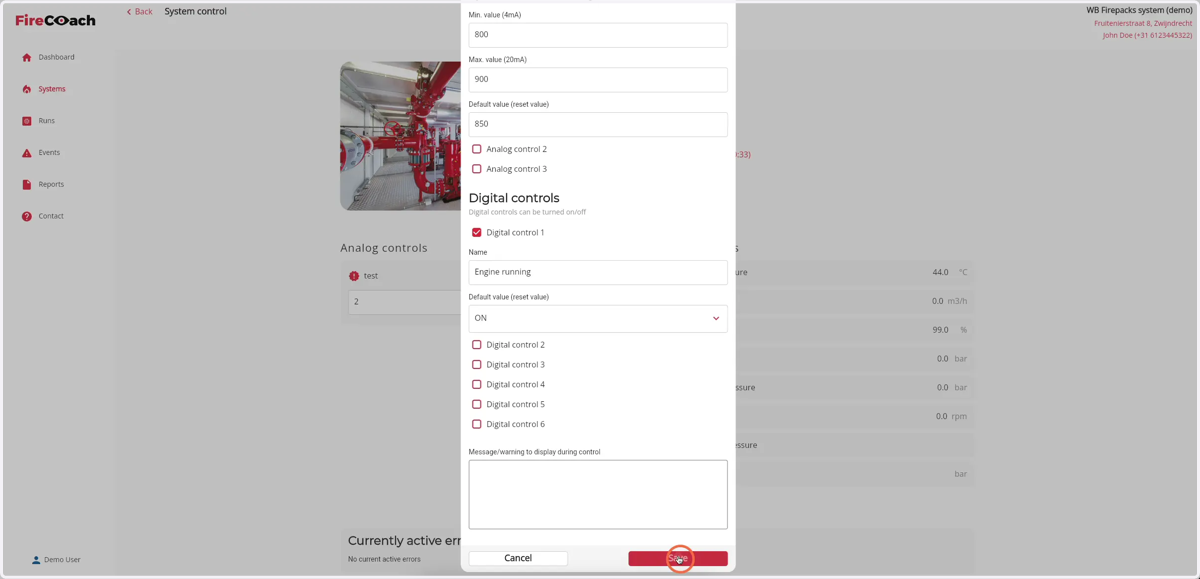

  2. 15. Press save to add the controls to the Firepack

    Press save to add the controls to the Firepack
